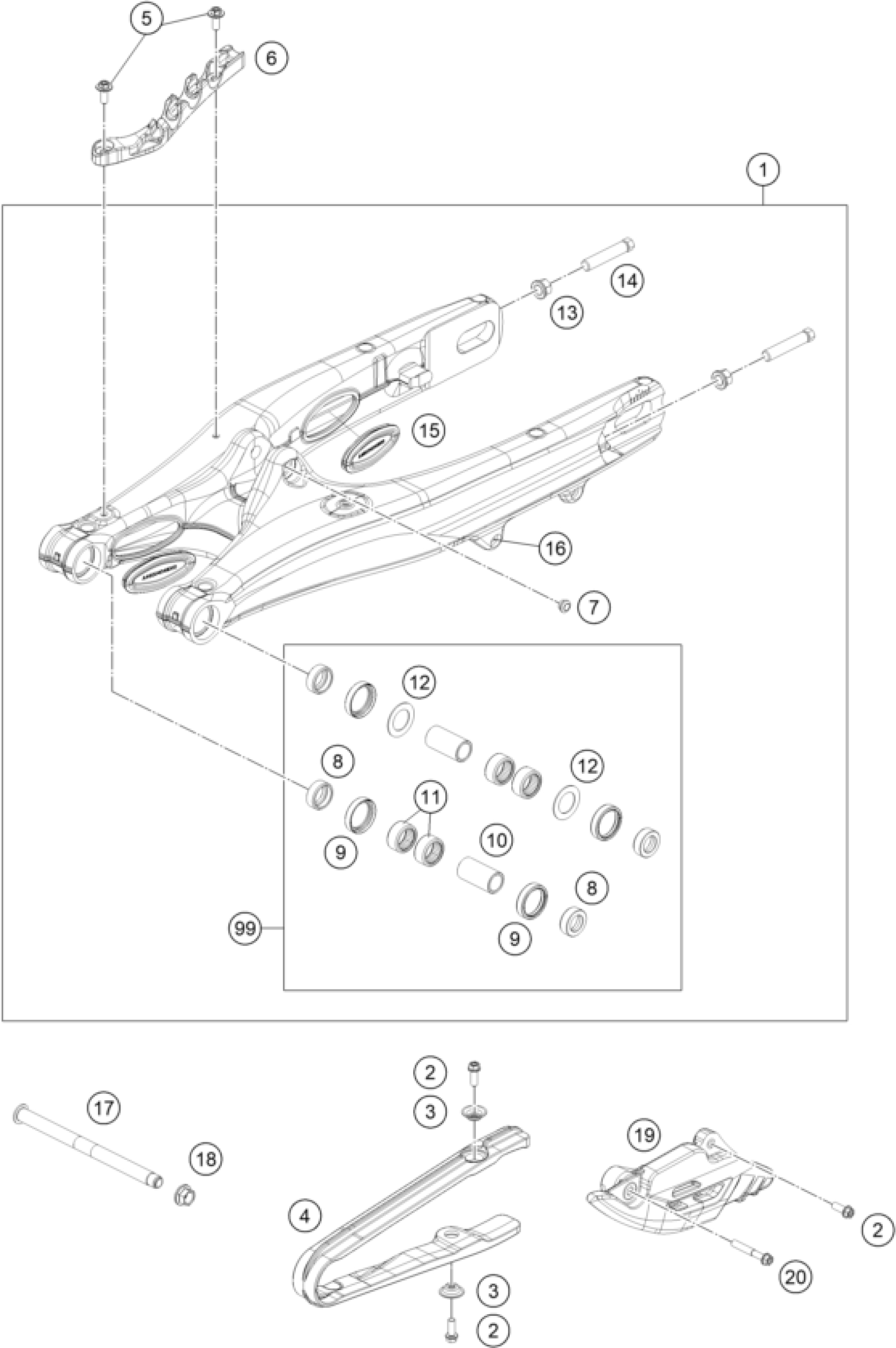

KTM 85 SX 17/14 2025 SWING ARM Diagram

#

Description
Price

1

Swingarm cmpl. 85 SX/TC/MC 25

A41004030044

Unavailable

14

screw M10x1.25x50 WS10

50304040100

Unavailable

13

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

16

PRESS IN NUT M6 STEEL ZINC

54603055051

Unavailable

15

Locking cap swingarm

A46004041000

Unavailable

11

NEEDLE BUSH HK 2012

50203097000

Unavailable

10

BUSHING SLEEVE 15X20X38,75

50203081700

Unavailable

9

radial shaft seal 25x32x7

0760253270

Unavailable

8

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

Unavailable

12

Shim 20x31.9x1

59033080000

Unavailable

17

Swingarm pivot, 85 SX

47104037100

Unavailable

18

hex nut M14x1.5 WS17

77204087000

Unavailable

99

Swing arm bearing repair kit

47004230110

Unavailable

19

Chain guide EXC

A49004070100C1

Unavailable

4

Chain slider

A41004066000

Unavailable

3

Chain slider bushing

77304066150

Unavailable

5

HH collar screw M6x15 TX30

0024060156S

Unavailable

6

Brake line guide

A41004042000

Unavailable

2

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

20

HH collar screw M6x40 TX30

0025060406

Unavailable

7

Threaded bush M12 d20

50180105

Unavailable
