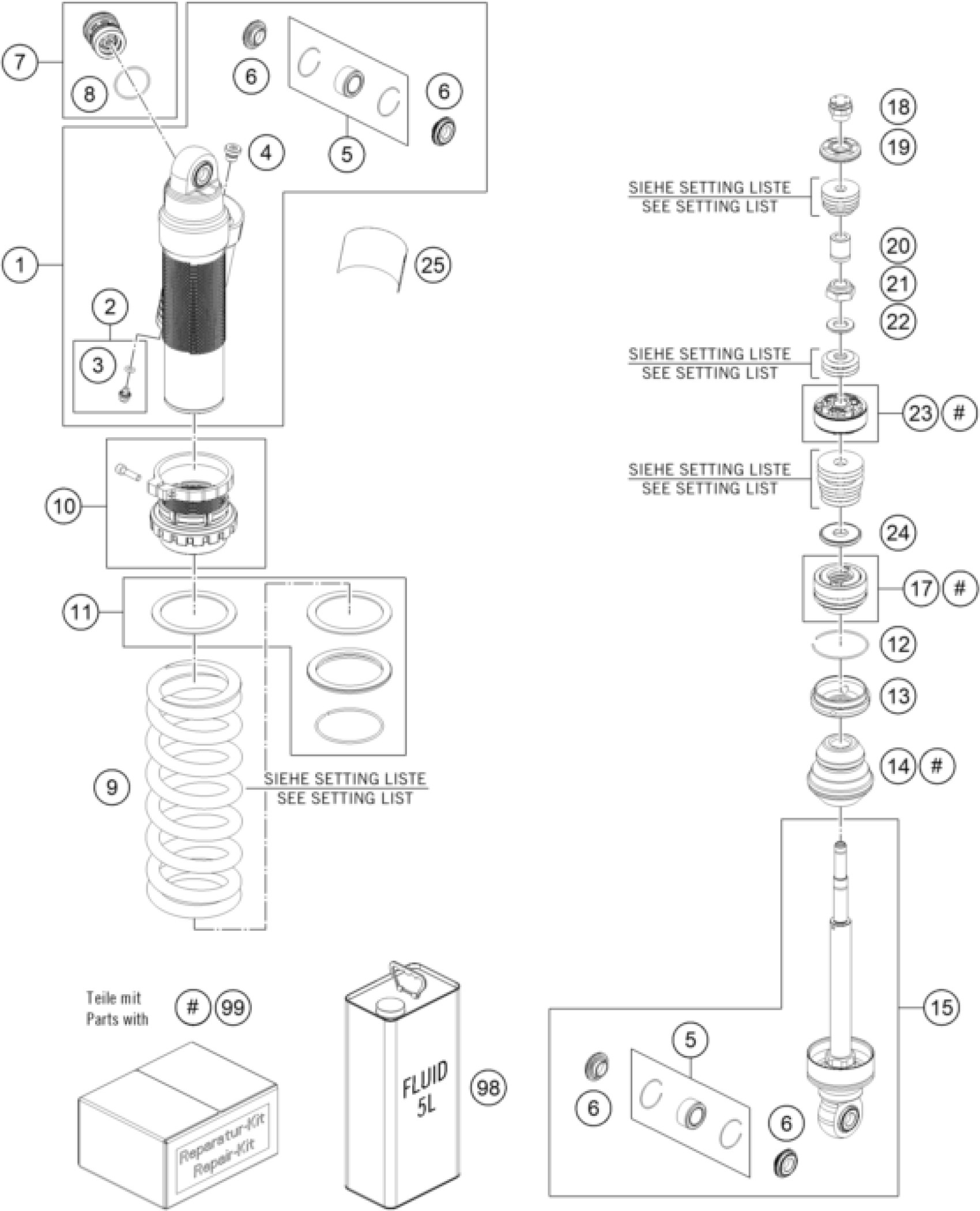

KTM 85 SX 17/14 2025 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

shock housing cpl.

S454600029S0000

Unavailable

2

PLUG SCREW M5X6 CPL.

36120151ST

Unavailable

3

O-ring 5,28x1,78 HNBR70 red

S208600003000FB

Unavailable

4

HS cylinder-head screw R1/8 l8

50180095

Unavailable

5

Ball bearing kit

RP10051T

Unavailable

25

Sticker XACT 85 SX

52000230

Unavailable

7

Compression Cpl

S012900000S1900

Unavailable

8

O-ring 27x1,5 Viton70 green IS

50180217

Unavailable

9

SPRING (59) 215 30 N/MM

91010271S

Unavailable

9

Spring (59) 215 35 N/MM D=9.25

91010240S

Unavailable

9

SPRING (59) 215 40 N/MM D=9,5

91010161S

Unavailable

9

Mainspring (59) 45-215 damper

91010201

Unavailable

9

Mainspring (59) 50-215 damper

91010080

Unavailable

9

SPRING 55 N/MM

91010170S

Unavailable

10

Plastic Spring Retainer D46 cp

46181382S

Unavailable

11

SPRING CUP SET PDS 17

RP10005T

Unavailable

12

round-wire snap ring 49x1,75

S23902000000000

Unavailable

13

Cover 46,12x15 h5,5 red

46181351

Unavailable

14

Rubber pad 17x48x55

46181237

Unavailable

15

bottom part M18x1 h54,5 cpl.

S421800024S0000

Unavailable

17

Seal support 46x28 cmpl.

S614620000S0100

Unavailable

18

Nut PDS M10x1 h17,2 WAF19 cpl.

46181659S

Unavailable

19

Piston 15,4x35,4x6

46181416

Unavailable

20

Bushing 10x17x21

46181561

Unavailable

21

Piston rod nut M12x1

46810474

Unavailable

22

Washer 12x24x4.5

46140031

Unavailable

23

piston 12x45,4x18 complete

S624600004S0000

Unavailable

24

Rebound disc 12x36x9,8 h5,8

S25120000700000

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

Repair kit suspension PDS 19

RP10064T

Unavailable

6

PIVOTSEAL Ø12X25,1 PDS

46181193

Unavailable
