REAR WHEEL

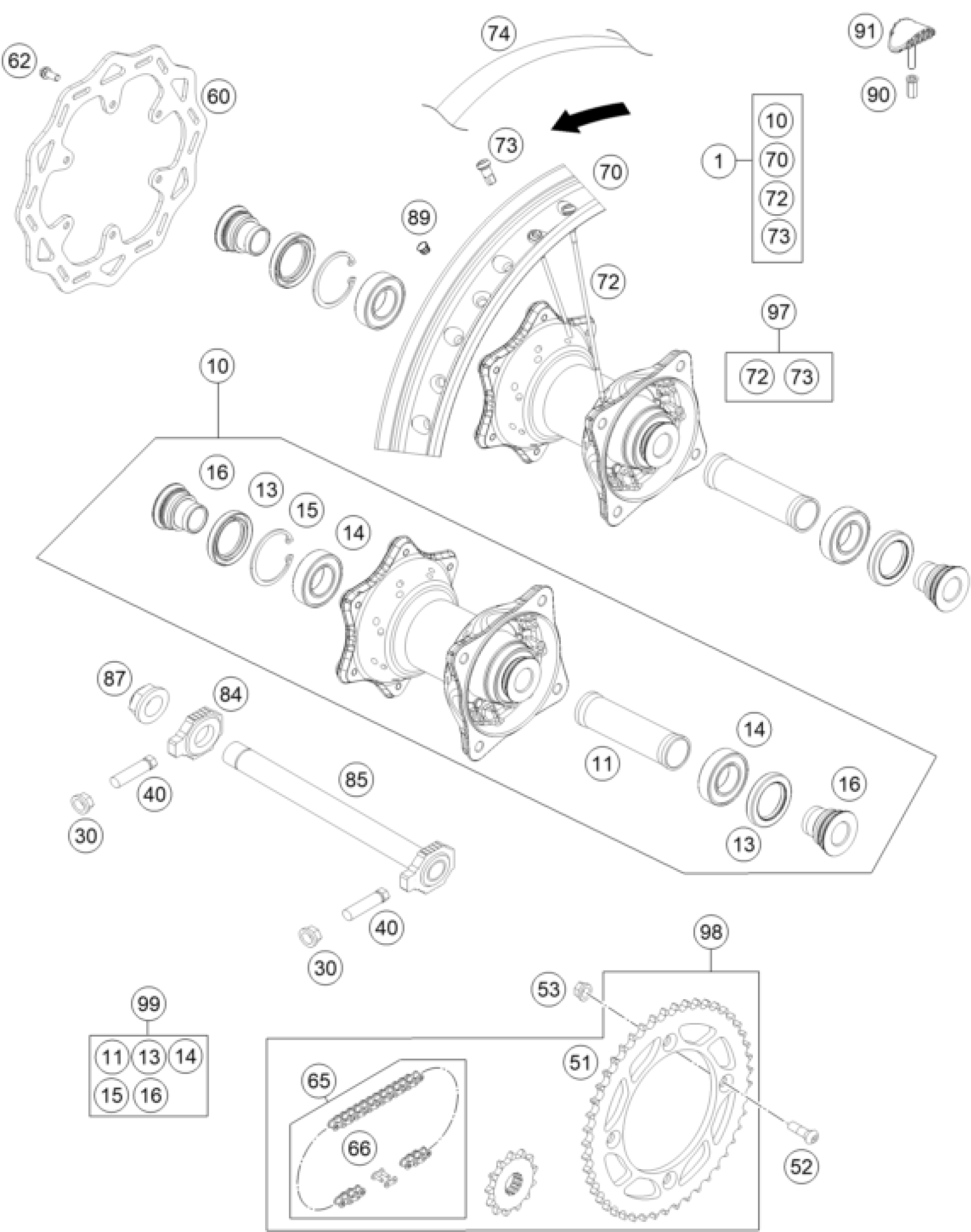

KTM 85 SX 17/14 2025 REAR WHEEL Diagram
#
1
Rear wheel cmpl. 1.6x14" 85 SX
A4101000104430
Unavailable
10
Rear wheel hub cmpl.
A41010010144
Unavailable
11
BEAR.SPACER TUBE ´12
70010011000
Unavailable
13
Radial shaft seal 35X47X7 TC
0760354771
Unavailable
14
Grooved ball bear.6005 DDU2CG2
0625060058
Unavailable
15
CIRCLIP DIN0472-47X1,75
0472047175
Unavailable
16
Rear wheel spacer
0800002003300
Unavailable
30
HH COLLAR NUT M10X1,25 WS=13
58414030000
Unavailable
40
screw M10x1.25x50 WS10
50304040100
Unavailable
51
Rear sprocket 44 teeth
47210051044C1
Unavailable
51
Rear sprocket 45 teeth
47210051045C1
Unavailable
51
Rear sprocket 46 teeth
47210051046C1
Unavailable
51
Rear sprocket 47 teeth
47210051047C1
Unavailable
51
Rear sprocket 48 teeth
47210051048C1
Unavailable
51
Rear sprocket 49 teeth
47210051049C1
Unavailable
51
Rear sprocket 50 teeth
47210051050C1
Unavailable
51
Rear sprocket 51 teeth
47210051051C1
Unavailable
52
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
Unavailable
53
Hex. nut DIN EN 1661 M8 WS13
06923080003
Unavailable
60
BRAKE DISC REAR 220MM 16
79010060000
Unavailable
62
SPECIAL SCREW M6X16 WS=8 10.9
59009062016
Unavailable
65
CHAIN 124 ROLLS 85 SX
47010165124
Unavailable
66
CONNECTING LINK 85 SX
47010166000
Unavailable
70
rim back 14x1.60
2351007040030
Unavailable
72
SPOKE M4,5X147-14'' BLACK
4711007114730
Unavailable
73
Spoke nipple M4.5 AL
77109072000
Unavailable
74
Tube protector 85 SX 14"
47010073000
Unavailable
84
Chain tension adjuster right
A41010084000
Unavailable
85
Wheel spindle rear cmpl.
A41010085044
Unavailable
87
Collar nut M20x1.5 SW=30
0910002001700
Unavailable
89
PLUG FOR RIM
55003135000
Unavailable
90
NUT FOR WHEEL HOLDER
77110090050
Unavailable
91
Tyre locker 1,60"
78109090200
Unavailable
97
SPOKE KIT REAR ''14'' 85 SX 13
00050000966
Unavailable
98
Drive train SX 13Z/46Z
SPAA13U46CC1243
Unavailable
99
REAR WHEEL REP. KIT
A41010015000
Unavailable
