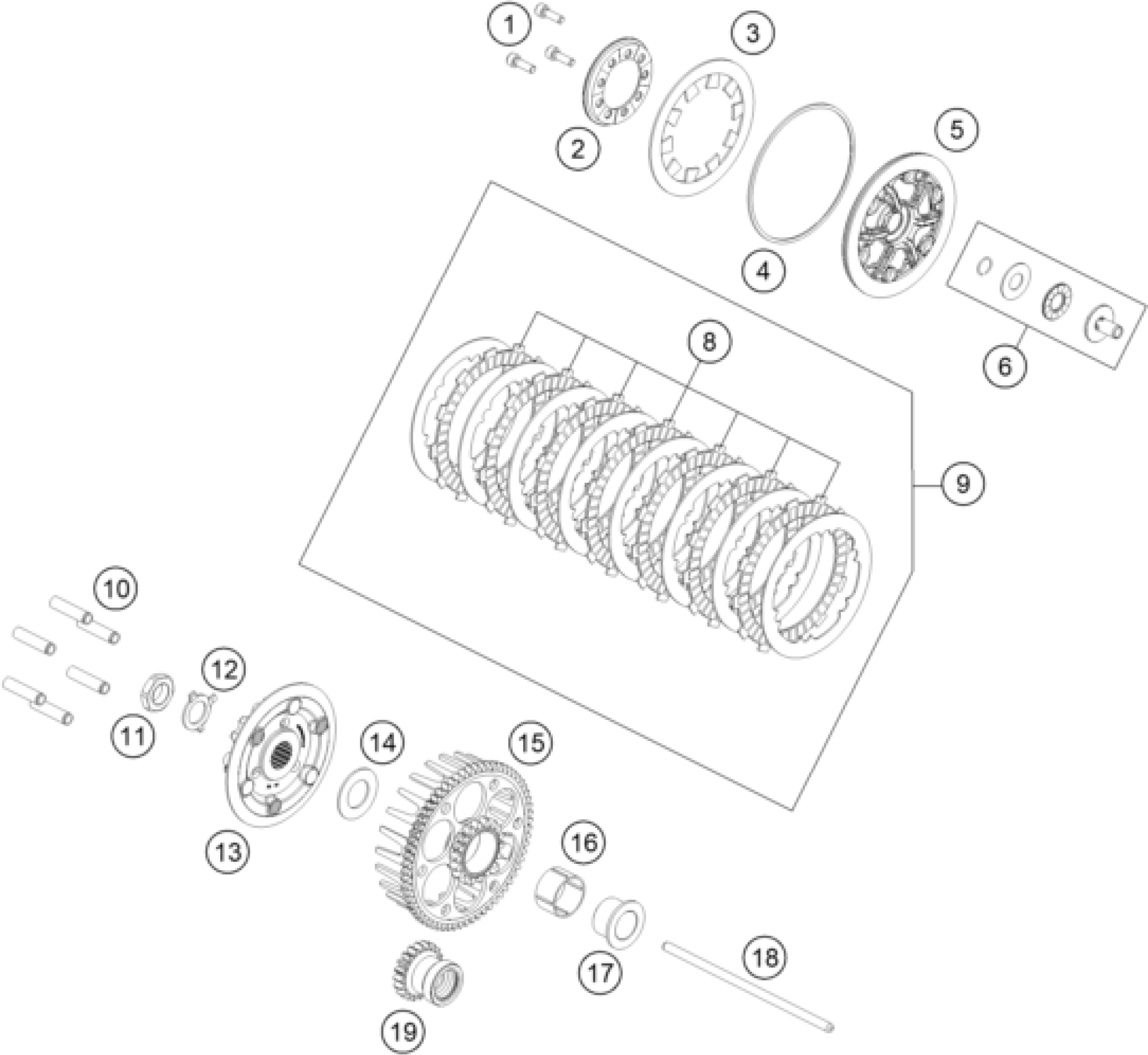

KTM 85 SX 17/14 2025 CLUTCH Diagram

#

Description

Price

1

AH collar screw DIN 912 M5x16

0912050163

Unavailable

2

Spring retainer

47232006100

Unavailable

3

Clutch spring 58x97.1x1.5

47232005000

Unavailable

4

Inner ring 94x99x1.5

47232013000

Unavailable

5

Clutch pressure plate

47232003100

Unavailable

6

PRESSURE PIECE CPL.

78132057144

Unavailable

8

lining disc 1,95mm

47232011000

Unavailable

9

disc pack

47232010033

Unavailable

10

Sleeve 7.95x31.65

50532004100

Unavailable

11

Hexagon nut M16x1,5

47232019000

Unavailable

12

Lock washer

47232018100

Unavailable

13

Inner clutch hub

47232102100

Unavailable

14

Support disk

47232017000

Unavailable

15

clutch basket

47232001164

Unavailable

16

Needle cage K263017

0405263017

Unavailable

17

Collar 20x26x19

47232015000

Unavailable

18

Rod

47232054000

Unavailable

19

Gear primary drive

47232023020

Unavailable
