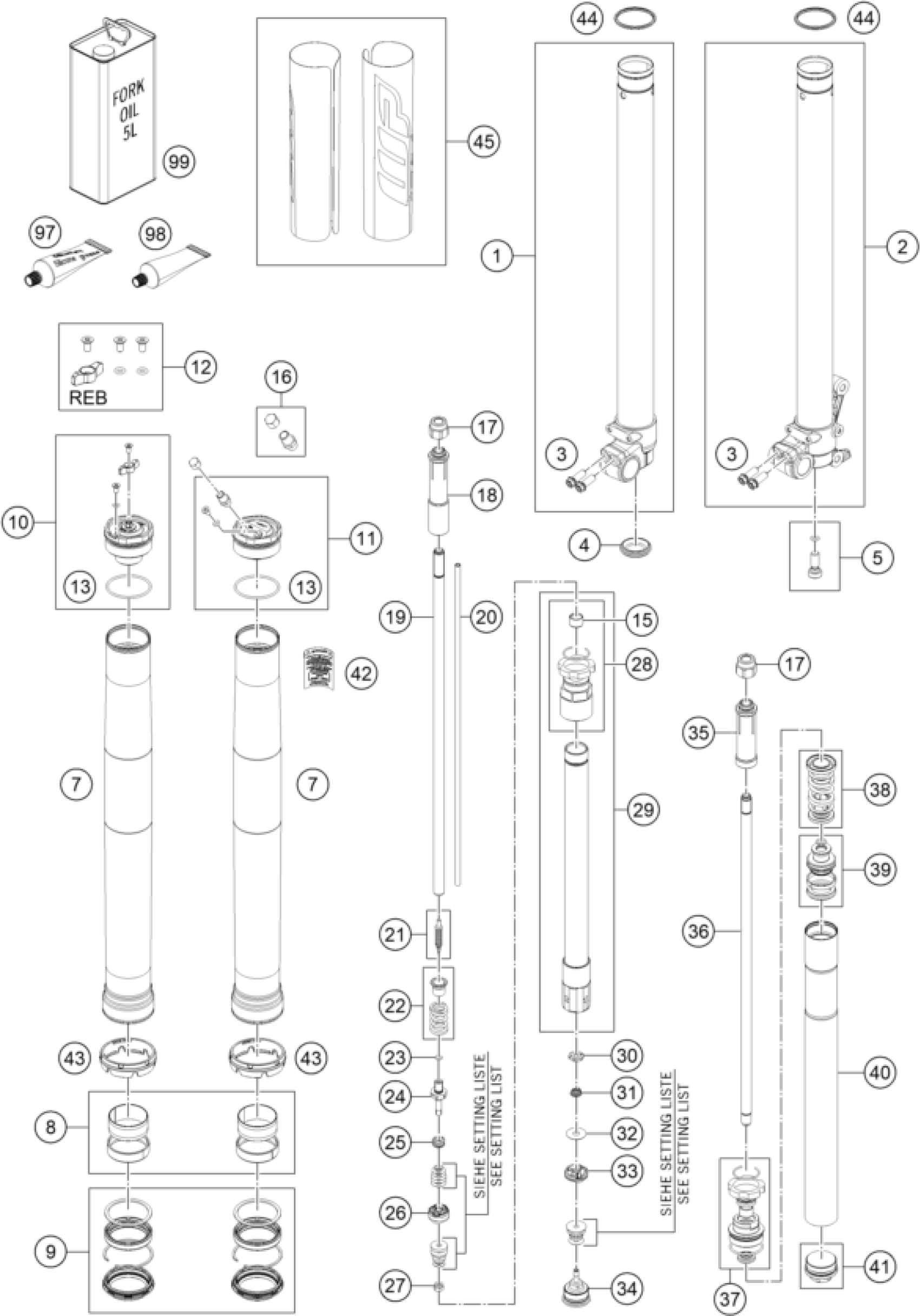

KTM 85 SX 17/14 2021 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle clamp right + tube 85SX c

43570818S1

Unavailable

3

HH collar screw M8x20

0025080206

Unavailable

4

Rubber cap 35x10 NBR80

48600141

Unavailable

5

HS screw M10x23 cpl.

S218700000S0000

Unavailable

7

Fork outer tube 44.13x510 dt49

43570982

Unavailable

8

GUIDE BUSHING SET

R14042

Unavailable

9

GASKET SET

R513

Unavailable

10

Screw cap M46x1,5 cpl.

43570928S

Unavailable

11

screw cap M46x1,5 Luft cpl.

43570927S

Unavailable

12

Adjuster kit screw cap

RP10021

Unavailable

13

O-ring 41x2 NBR70 siliconized

43570023

Unavailable

15

Guide bushing 12x14x10

48600430

Unavailable

16

Schrader valve M8x1 cmpl.

48601494S

Unavailable

17

Lock nut M12x1 h20 WAF22

43570859

Unavailable

18

Stop 12,2x25x115

43570856

Unavailable

19

Piston rod 12x477,5

48601811

Unavailable

20

adjustment tube 6x445,1

43570929

Unavailable

21

Needle 4,5x43,6 cpl.

48600277S

Unavailable

22

Spring (13,9) 37-32 rebound cp

48600578S

Unavailable

23

O-ring 6x1,2 NBR70

48600299

Unavailable

24

Tap 6x46 rebound

48600576

Unavailable

25

Spring (11,7) 1,5-8 valve

35480377

Unavailable

26

Midvalve piston assembly d23

48602002S

Unavailable

27

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

28

Screwsleeve M27x0,8 cpl.

43570936S

Unavailable

29

Cartridge tube cpl.

48600870S7

Unavailable

30

Nut valve M6x0,5 h6,5 WAF17

48600163

Unavailable

31

Spring (8,5) l6,5 valve

48600202

Unavailable

32

Shim 8x24x0,40

48600061

Unavailable

33

Piston 6x27,3x9 compression cp

48601934S

Unavailable

34

Tap compression cpl.

48600586S

Unavailable

35

Stop 12,2x25x78,5

43570819

Unavailable

36

Piston rod 12x470

48601501

Unavailable

37

Screw sleeve M35,5x0,8

48601452S2

Unavailable

38

Spring (22) 60-30 rebound cpl.

48601820S1

Unavailable

39

Piston 5x34x31,5 mainpiston Fr

43570844S

Unavailable

40

Tube incl. mounting 410mm air

48601571S2

Unavailable

41

Adapter M10xM35,5x0,8x25 cpl.

43570845S

Unavailable

42

Sticker warning 60x40

52000315

Unavailable

43

Fork protection ring 55,1mm

43570915

Unavailable

44

Stroke indicator d43 red

43570926

Unavailable

45

Sticker XAXT AER OC 161x214

52000229SET

Unavailable

97

Fuchs grease IPR (250g)

T14034

Unavailable

98

special grease AER Fork 400g

00062010053

Unavailable

99

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

2

Axle clamp left + tube cpl.

43570968S1

Unavailable
