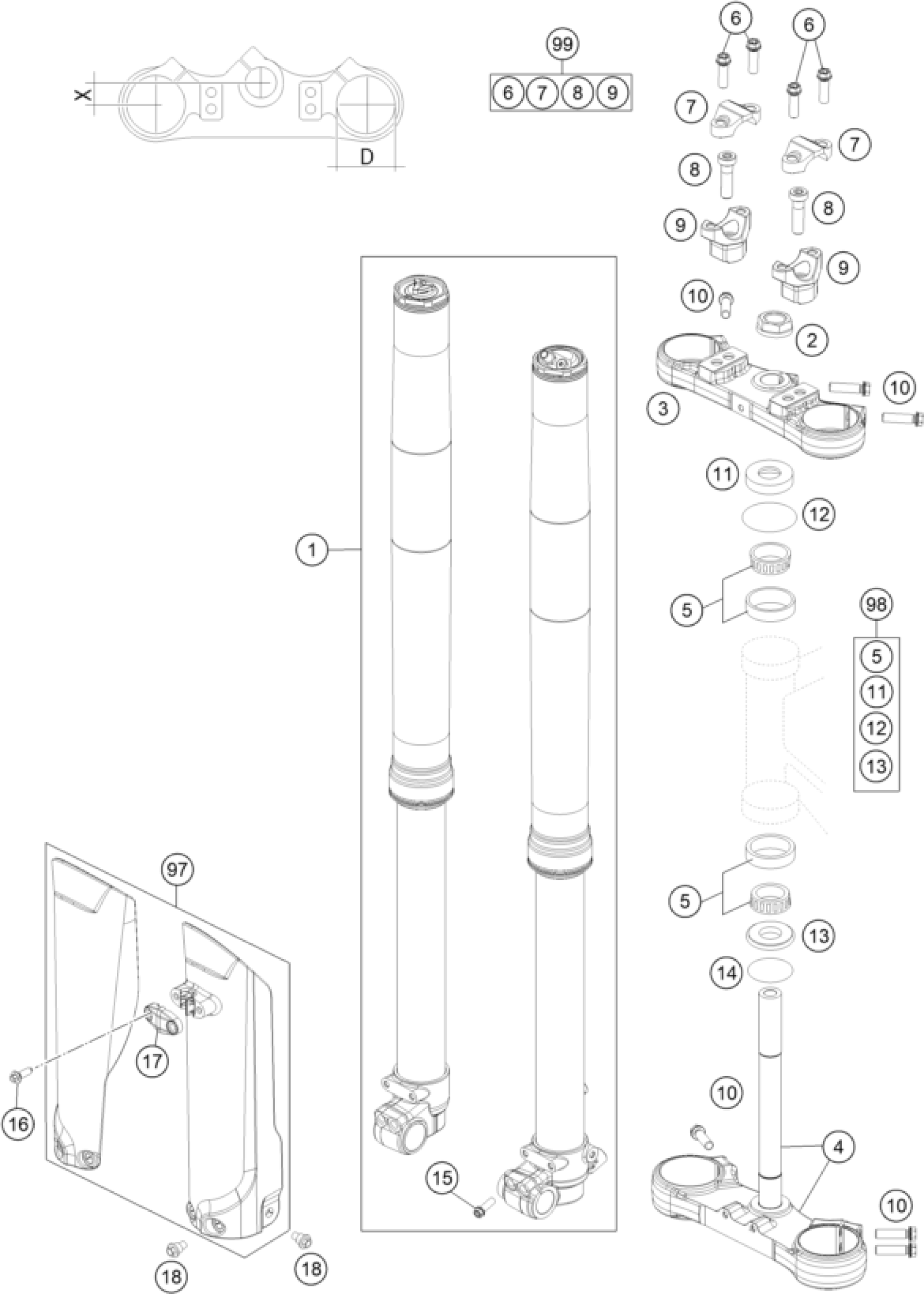

KTM 85 SX 17/14 2019 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork 85 SX/TC

43188S0401

Unavailable

2

HH NUT M20X1,5 WS=27 RIGHT

59030029000

Unavailable

3

upper triple clamp

47101034214

Unavailable

4

Compl. lower triple clamp

47101032214

Unavailable

5

TAPERED ROLLER BEARING 32004X

49001081000

Unavailable

6

HH collar screw M8x25

0025080256

Unavailable

7

HANDLEBAR CLAMP 28MM

77201038000

Unavailable

8

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

9

Handlebar mount D28mm-H37mm

59401039037

Unavailable

10

HH collar screw M8x30

0025080306

Unavailable

11

COVERING CAP

49001086000

Unavailable

12

O-ring 40.94X2.62 NBR70

0770021300

Unavailable

13

PROTECTION RING 20,1X39X5

46001086000

Unavailable

14

O-RING 36,00X3,00 NBR

0770360030

Unavailable

15

HH collar screw M8x20

0025080206

Unavailable

16

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

17

CLAMP BRAKE HOSE

7770108510028

Unavailable

18

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

97

Fork protector kit 85 SX 19

4720109400028D

Unavailable

98

STEARING HEAD REP. KIT MINI

00050000931

Unavailable

99

HANDLEBAR SUPPORT KIT D28/H37

00050000921

Unavailable
