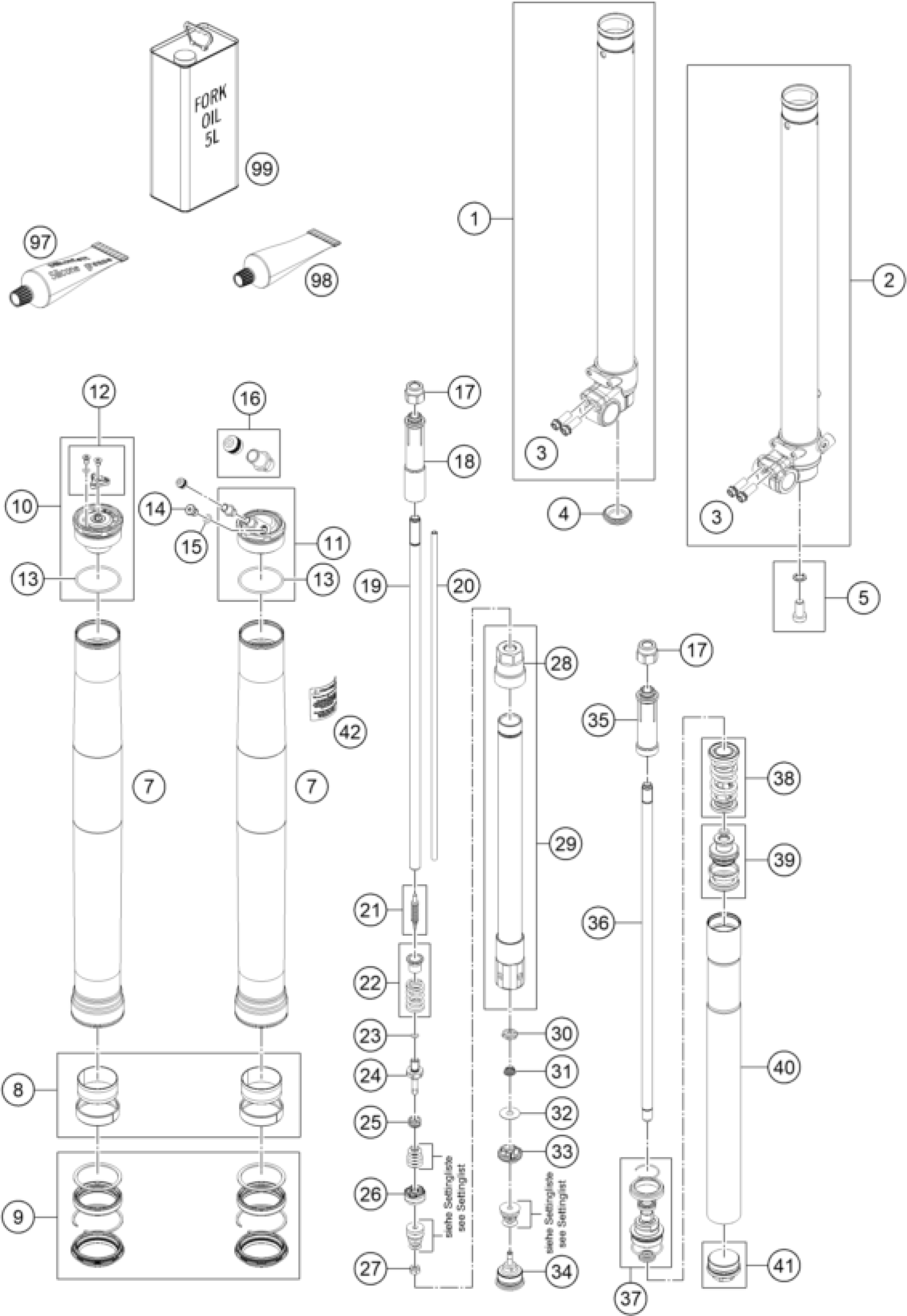

KTM 85 SX 17/14 2019 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle clamp right + tube 85SX c

43570818S1

Unavailable

2

Axle clamp left + tube 85SX cp

43570817S1

Unavailable

3

HH collar screw M8x20

0025080206

Unavailable

4

Rubber cap 35x10 NBR80

48600141

Unavailable

5

AH SCREW M10X20 SET

00501020S1

Unavailable

7

Fork outer tube 44,14x510 dt49

43570614E

Unavailable

8

GUIDE BUSHING SET

R14042

Unavailable

9

Fork sealing kit 43mm red

R516

Unavailable

10

Screw cap M46x1,5 cpl.

43570807S

Unavailable

11

Screw cap M46x1.5 air cmpl.

43570814S

Unavailable

12

Adjuster Kit rebound

RP10016

Unavailable

13

O-ring 41x2 NBR70 siliconized

43570023

Unavailable

14

ISA lock screw M8x1 l7 Alu

48601495

Unavailable

15

O-ring 6x1,5 NBR70

48600044

Unavailable

16

Schrader valve M8x1 cmpl.

48601494S

Unavailable

17

Lock nut M12x1 h20 WAF22

43570859

Unavailable

18

Stop 12,2x25x115

43570856

Unavailable

19

Piston rod 12x477,5

48601811

Unavailable

20

Adjustment tube 6x445,1

48601812

Unavailable

21

Needle 4,5x43,6 cpl.

48600277S

Unavailable

22

Spring (13,9) 37-32 rebound cp

48600578S

Unavailable

23

O-ring 6x1,2 NBR70

48600299

Unavailable

24

Tap 6x46 rebound

48600576

Unavailable

25

Spring (11,7) 1,5-8 valve

35480377

Unavailable

26

Piston 6x23x13 cpl.

48601817S

Unavailable

27

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

28

Screw sleeve M27x0,8 cpl.

43570852S

Unavailable

30

Nut valve M6x0,5 h6,5 WAF17

48600163

Unavailable

31

Spring (8,5) l6,5 valve

48600202

Unavailable

32

Shim 8x24x0,40

48600061

Unavailable

34

Tap compression cpl.

48600586S

Unavailable

35

Stop 12,2x25x78,5

43570819

Unavailable

36

Piston rod 12x470

48601501

Unavailable

37

Screw sleeve M35,5x0,8

48601452S1

Unavailable

38

Spring (22) 60-30 rebound cpl.

48601820S1

Unavailable

39

Piston 5x34x31,5 mainpiston Fr

43570844S

Unavailable

40

Tube incl. mounting 410mm air

48601571S2

Unavailable

41

Adapter M10xM35,5x0,8x25 cpl.

43570845S

Unavailable

97

Fuchs grease IPR (250g)

T14034

Unavailable

99

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

98

special grease AER Fork 400g

00062010053

Unavailable

33

Piston 6x27,3x9 compression cp

48601934S

Unavailable

29

Cartridge tube cpl.

48600870S7

Unavailable

42

Sticker warning 40x40

52000158

Unavailable
