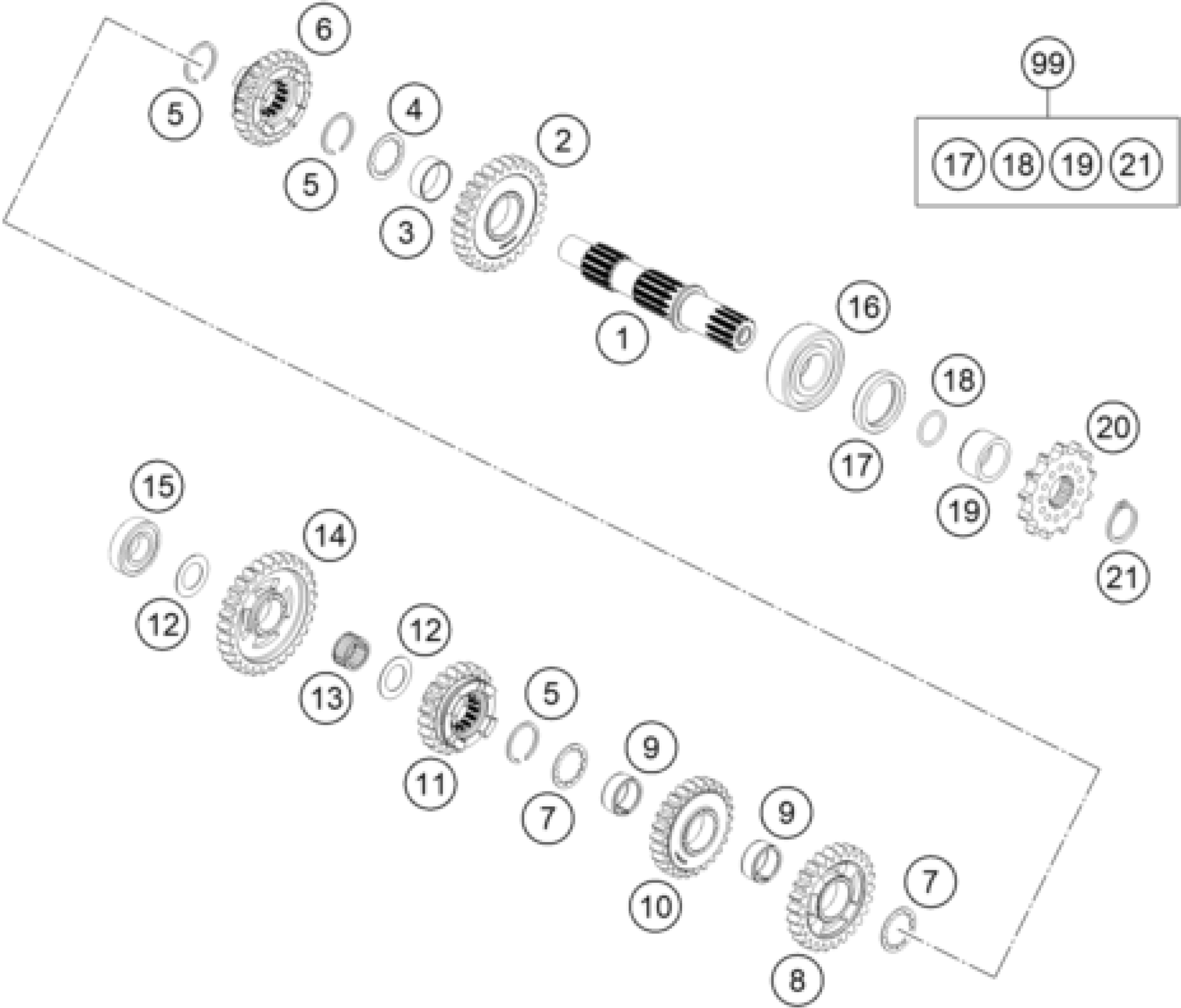

KTM 85 SX 17/14 2018 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

Output shaft cpl.

47233010000

Unavailable

2

Idler gear 2 nd.

47233012000

Unavailable

3

Bushing idler gear

47233021000

Unavailable

4

Thrust washer 19.2x27.1x1

47233041000

Unavailable

5

CIRCLIP SW21

0417210120

Unavailable

6

Sliding gear 5 th.

47233015000

Unavailable

7

Thrust washer 22x1.50x13x9H

47233040000

Unavailable

8

Idler gear 3 rd.

47233013000

Unavailable

9

NEEDLE CAGE K18X22X10 PARTED

50133099000

Unavailable

10

idler gear 4 th.

47233014000

Unavailable

11

sliding gear 6 th.

47233016000

Unavailable

12

Thrust washer 15.2x25x0.5

47133043000

Unavailable

13

NEEDLE BEARING K15X19X10S

47033099000

Unavailable

14

Idler gear 1 st.

47233011000

Unavailable

15

BALL BEARING 16002 C3

0625160020

Unavailable

16

Grooved ball bearing 6204 JR2

0625062041

Unavailable

17

SHAFT SEAL RING 26X35X6BSL NB

0760263561

Unavailable

18

O-RING 18,77X1,78 NBR 70

0770020180

Unavailable

19

Spacer chain pinion

47233030000

Unavailable

20

Sprocket 13t

47233029013

Unavailable

21

CIRCLIP AS20X1,75

49033091000

Unavailable

99

COUNTER SHAFT REP.KIT 105/85SX

00050000942

Unavailable
