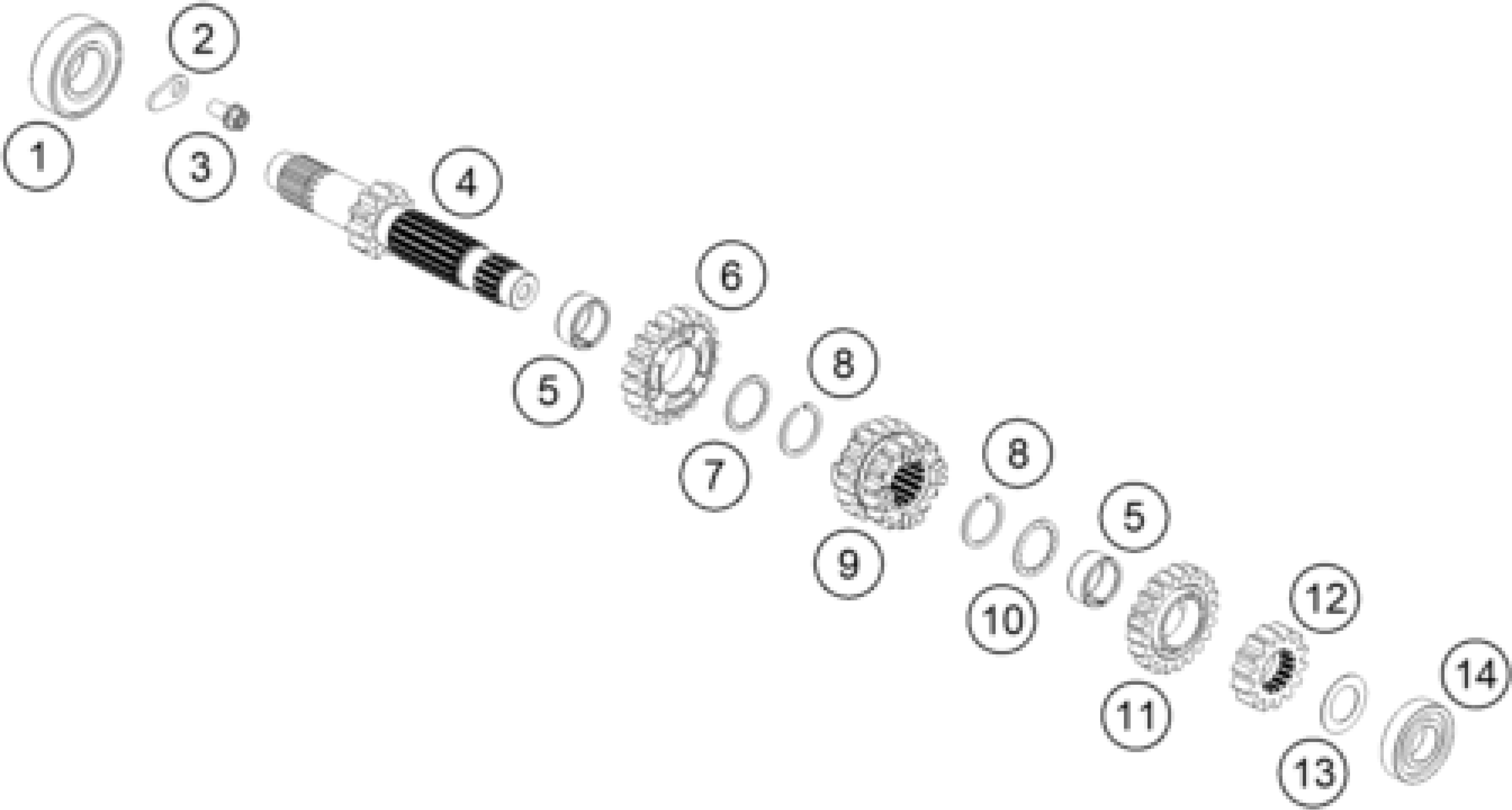

KTM 85 SX 17/14 2018 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

Grooved ball bearing 20X42X12

46033028000

Unavailable

2

RETAINING PLATE

54634049000

Unavailable

3

HH collar screw M6x12 TX30

0025060126

Unavailable

4

Input shaft

47233001050

Unavailable

5

NEEDLE CAGE K18X22X10 PARTED

50133099000

Unavailable

6

Idler gear 6 th.

47233006000

Unavailable

7

thrust washer 19.1x24.5x1

47233043000

Unavailable

8

CIRCLIP WS20

0417200120

Unavailable

9

Sliding gear 3 rd.

47233003000

Unavailable

10

thrust washer 19.1x24.5x1

47233042000

Unavailable

11

Idler gear 5 th.

47233005000

Unavailable

12

Fixed gear 2nd

47233002000

Unavailable

13

Thrust washer 16.1x26x0,5

47133041000

Unavailable

14

BALL BEARING 16X35X8

47033026000

Unavailable
