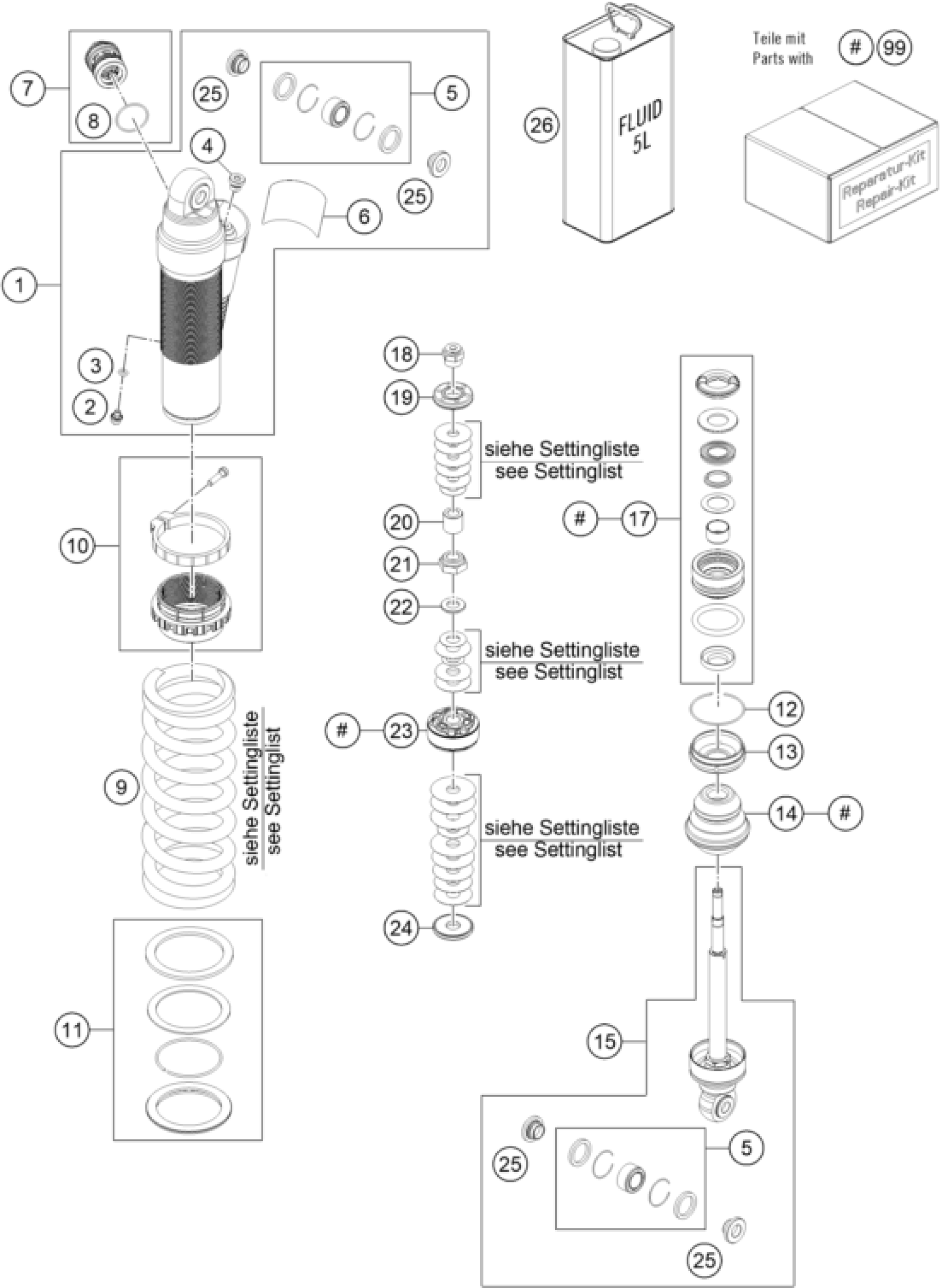

KTM 85 SX 17/14 2018 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

Monoshock case M53x1 with pipe

46181242S3

Unavailable

2

HS lock screw M5x6

36120151

Unavailable

3

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

4

HS cylinder-head screw R1/8 l8

50180095

Unavailable

5

Ball joint bearing kit top 12m

R12012

Unavailable

6

STICKER WP WARNING 65X40

52000143

Unavailable

7

Compression cpl.

50181101S22

Unavailable

8

O-ring 27x1,5 Viton70 green IS

50180217

Unavailable

9

SPRING (59) 215 30 N/MM

91010271S

Unavailable

9

SPRING (59) 215 40 N/MM D=9,5

91010161S

Unavailable

9

Mainspring (59) 45-215 damper

91010201

Unavailable

10

Spring retainer M55x2x75x40 pl

46181228S

Unavailable

11

SPRING CUP SET PDS 17

RP10005

Unavailable

12

Round-wire snap ring 49x1,5

46810010

Unavailable

13

Cover 46,12x6,2 h15,7

46180338

Unavailable

14

Rubber pad 17x48x55

46181237

Unavailable

15

Shock absorber bot. cpl.

46181301S1

Unavailable

17

Sealholder 46x28 cpl.

46180669S

Unavailable

18

Piston rod nut M10x1 PDS cpl.

46181183S

Unavailable

19

Piston 15x35,4x6 4

46181184

Unavailable

20

Bush 10x17x23

46181249

Unavailable

21

Piston rod nut M12x1

46810474

Unavailable

22

Washer 12x24x2,5

46811258

Unavailable

23

Piston 12x46x20 cpl.

46181328S

Unavailable

24

Rebound disc 12x36x4 h0

46181194

Unavailable

9

Spring (59) 215 35 N/MM D=9.25

91010240S

Unavailable

9

Mainspring (59) 50-215 damper

91010080

Unavailable

25

Distance bush 12x15/18/24,5x10

46180007

Unavailable

99

Repairing kit shock absorber P

RP10020

Unavailable

26

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable
