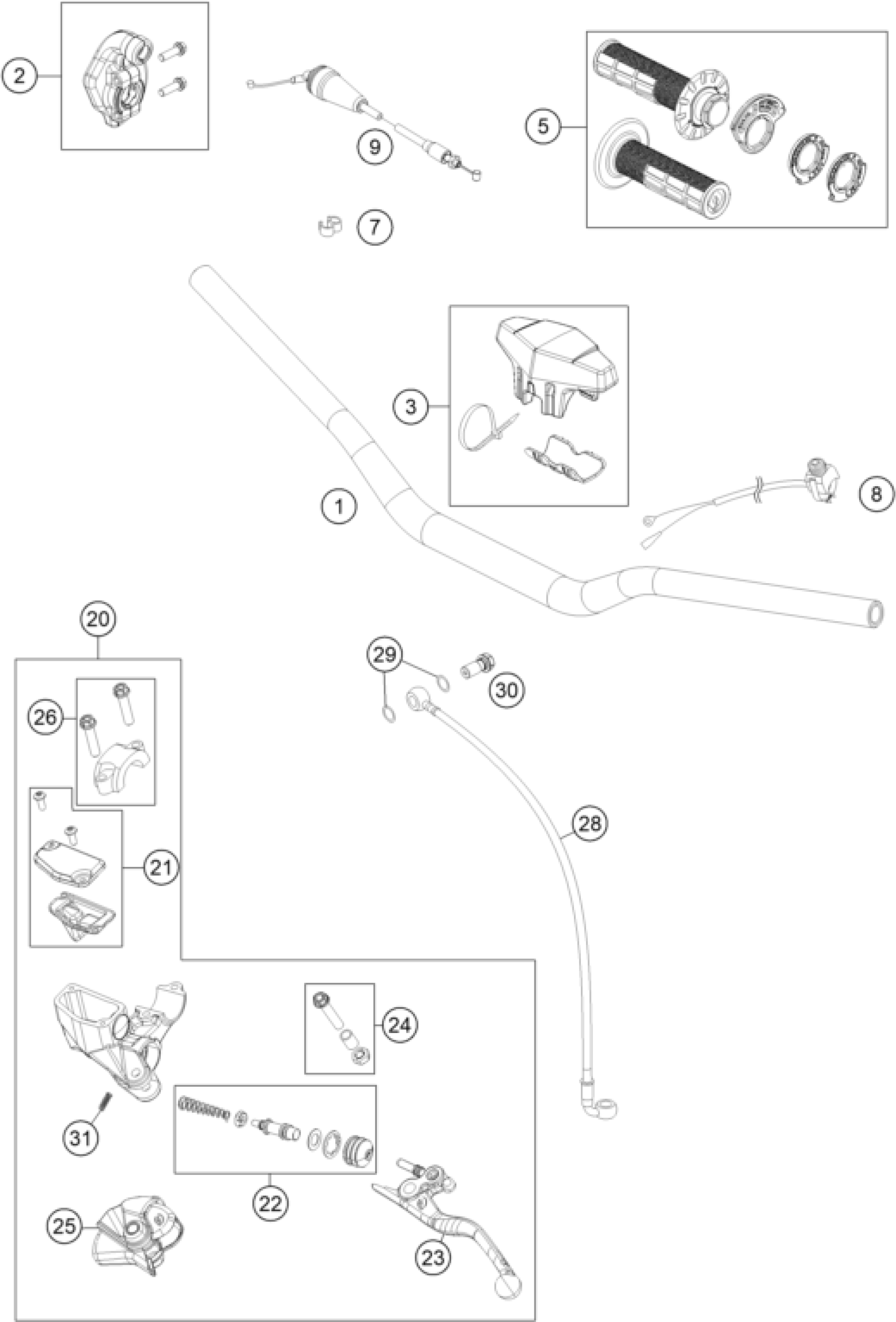

KTM 85 SX 17/14 2018 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

HANDLEBAR 85SX 2013

47102001000

Unavailable

2

THROTTLE BODY CPL.

50402010025

Unavailable

3

Bar pad cmpl.

77202002144

Unavailable

5

GRIP SET

79002021100

Unavailable

8

Kill switch

50311089200

Unavailable

9

Throttle cable

47202091000

Unavailable

20

MASTER CYLINDER CPL. 10MM

72002030100

Unavailable

21

COVER F. MASTER CYLINDER CPL.

72002003000

Unavailable

22

REP. KIT PISTON 10MM

72002032000

Unavailable

23

Lever cmpl.

72013002000

Unavailable

24

LEVER SCREW CPL.

70002038000

Unavailable

25

MUDCOVER CLUTCH LEVER

72002037000

Unavailable

26

CLAMP

72013005000

Unavailable

28

CLUTCH PIPE

72032063000

Unavailable

29

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

30

Hollow screw, brake cylinder 0

47013025000

Unavailable

31

SPRING FOR CLUTCH LEVER

72002035000

Unavailable

7

CLIP 5/7 MM 06

60111094000

Unavailable
