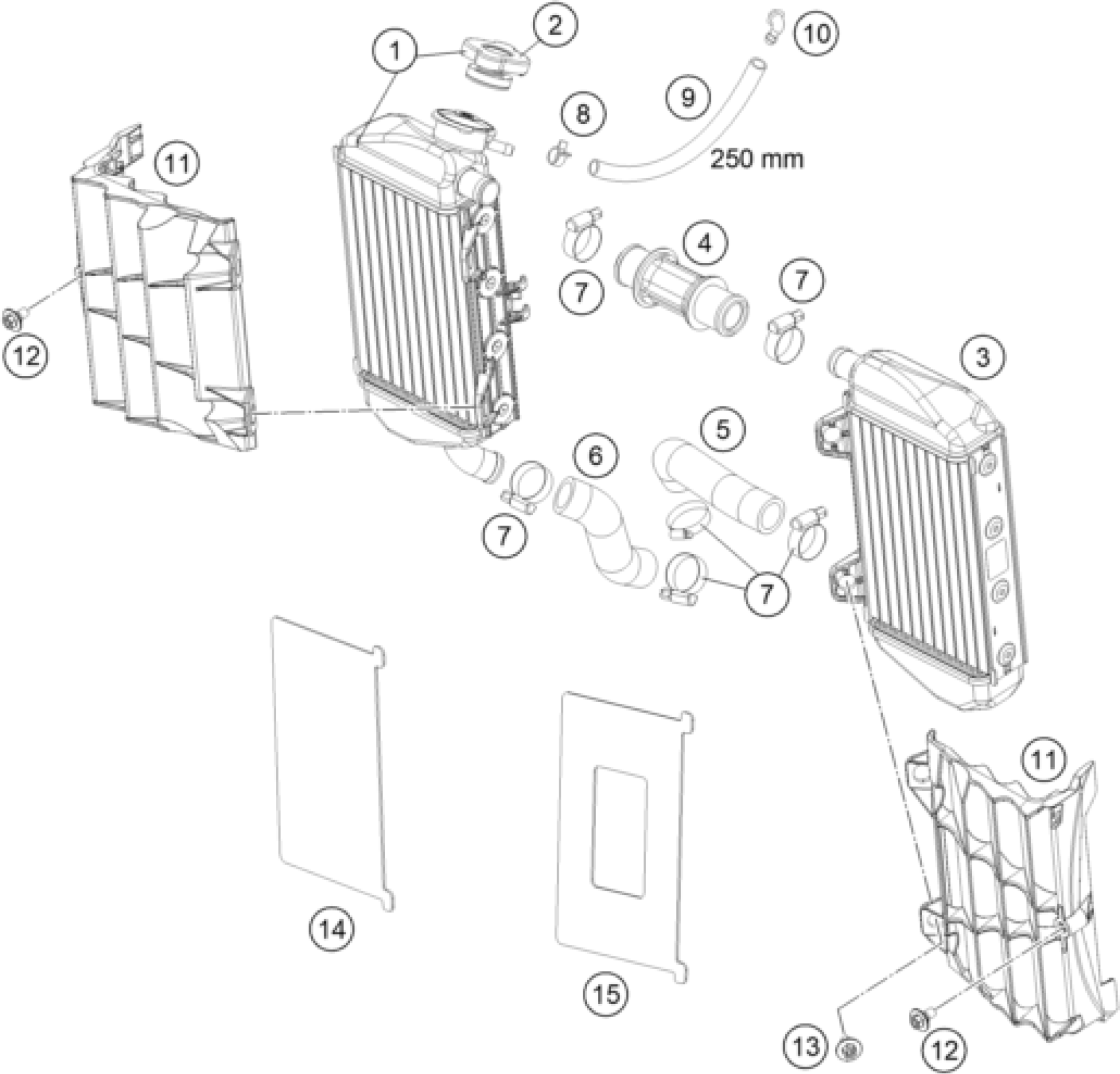

KTM 85 SX 17/14 2018 COOLING SYSTEM Diagram

#

Description

Price

1

Radiator right

47235008000

Unavailable

2

RADIATOR CAP 1,8 BAR

79035016000

Unavailable

3

Radiator left

47235007000

Unavailable

4

Radiator connector top

47235025000

Unavailable

5

Preformed hose engine

47235026000

Unavailable

6

Preformed hose water pump

47235027000

Unavailable

7

hose clamp 18-29

10001020300

Unavailable

8

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

9

PVC-HOSE 6X9

50335030001

Unavailable

10

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

11

Radiator protection

47235034000

Unavailable

12

special screw M6x12x3

83008000012

Unavailable

13

COLLAR SCREW M6X12 TX

0024060123

Unavailable

14

Radiator cover full

47235033000

Unavailable

15

Radiator cover half

47235033100

Unavailable
