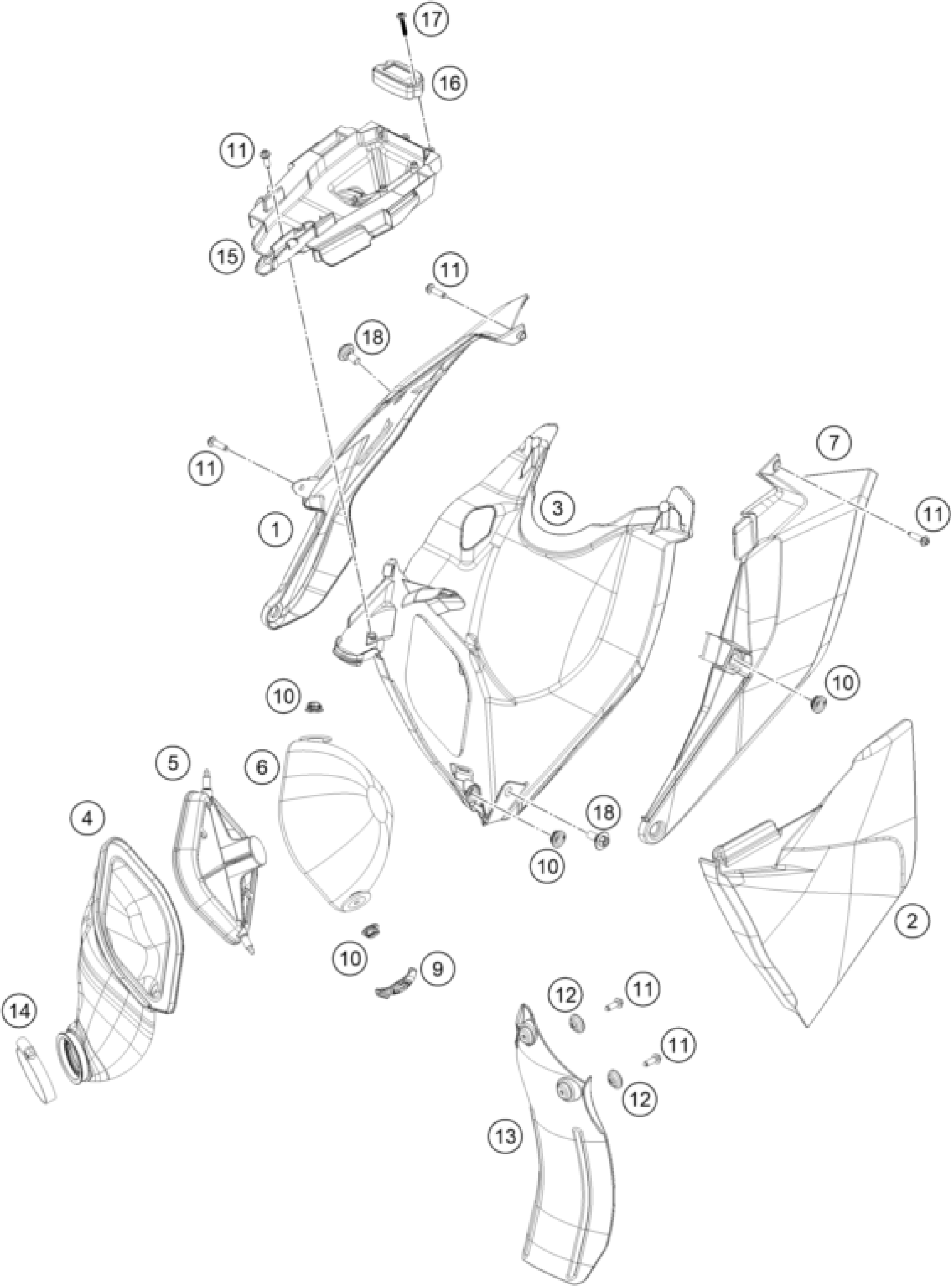

KTM 85 SX 17/14 2018 AIR FILTER Diagram

#

Description

Price

1

Airbox cover right

4720600400028

Unavailable

2

Airbox cover white

4720600300028

Unavailable

3

Airbox white

4720600100028

Unavailable

4

Airbox rubber

47206026000

Unavailable

5

Air filter carrier

47206016000

Unavailable

6

Air filter

47206015000

Unavailable

7

Airbox side cover white

4720600500028

Unavailable

9

FILTER MOUNTING BRACKET

79006017000

Unavailable

10

quick release rubber grommet

47106003160

Unavailable

11

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

12

chain slider bushing

77304066050

Unavailable

13

Splash protection

47206010000

Unavailable

14

HOSE CLAMP 45-65MM

78006027000

Unavailable

15

Electric compartment

47211094000

Unavailable

16

HOUR METER

78112020050

Unavailable

17

Ejot delta PT screw 35X18

0081035183

Unavailable

18

SPECIAL SCREW M6X15X3

83008000015

Unavailable
