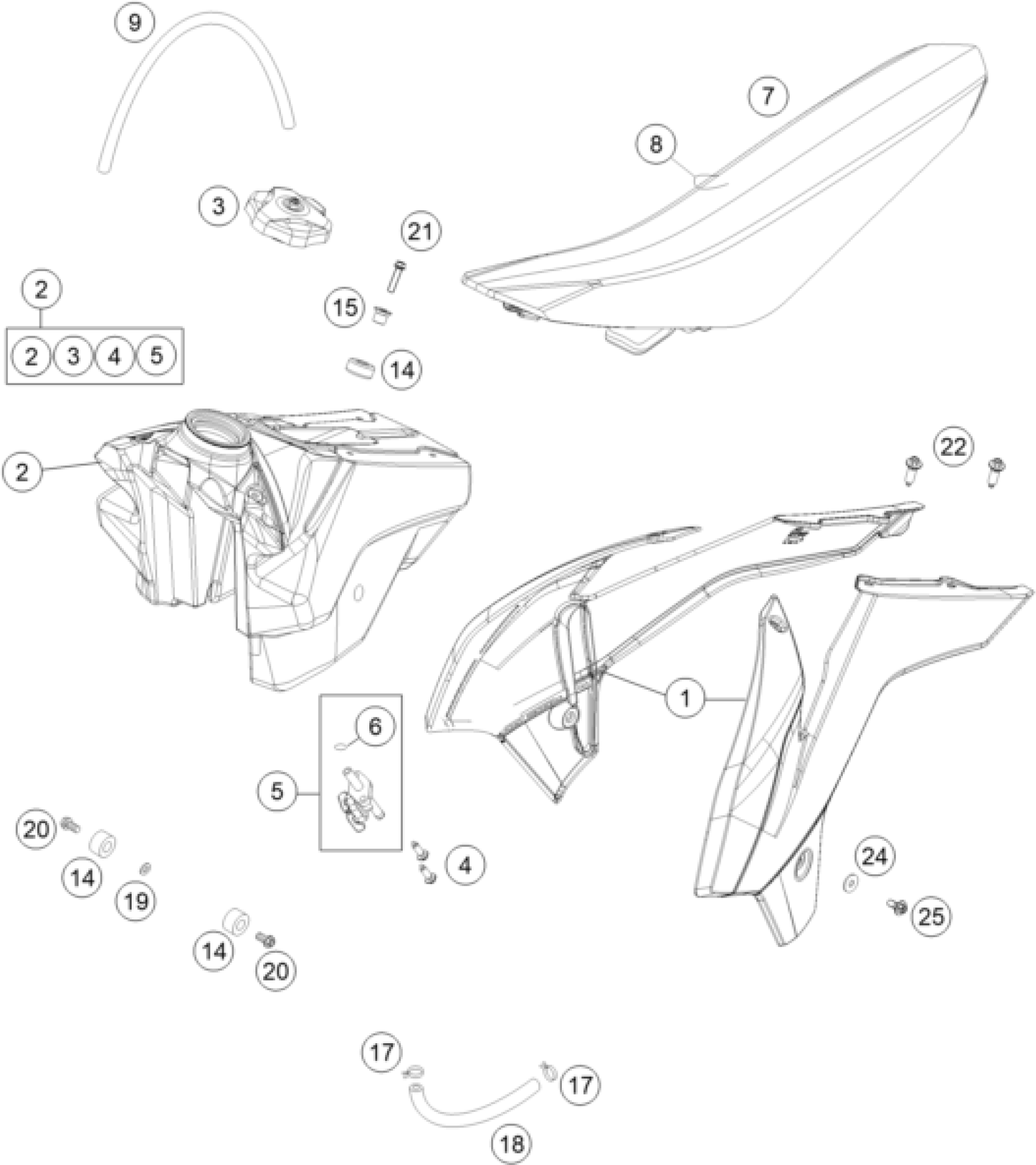

KTM 85 SX 17/14 2015 TANK, SEAT Diagram

#

Description
Price

1

SPOILER SET 85SX 2015

4710805400028A

Unavailable

2

FUEL TANK CPL. 2014

4710701314430

Unavailable

3

Tank plug cmpl. 2014

7770700814404

Unavailable

4

EJOT PT SCREW K60X25-Z SW6

0017060253

Unavailable

5

GAS COCK MIKUNI ON/OFF 2001

50307005000

Unavailable

6

O-RING 13,00X2,30

0770130023

Unavailable

7

SEAT CPL.

47107040000

Unavailable

8

SEATCOVER 85 SX 2013

47107040050

Unavailable

9

TUBE RUBBER 6X9 DVOH 200MM

50332095200

Unavailable

14

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

15

TANK BUSHING 07

77307026000

Unavailable

17

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

Unavailable

18

PVC-hose 5.6X10X270MM

78007000270

Unavailable

19

WASHER 6 X 12 X 3

12011016000

Unavailable

20

COLLAR SCREW M6X13 ISA30

0026060136

Unavailable

21

COLLAR SCREW M6X27 TX

0024060273

Unavailable

22

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

24

Washer DIN9021-A 6.4

0021060003

Unavailable

25

HH collar screw M6x15 TX30

0024060156

Unavailable
