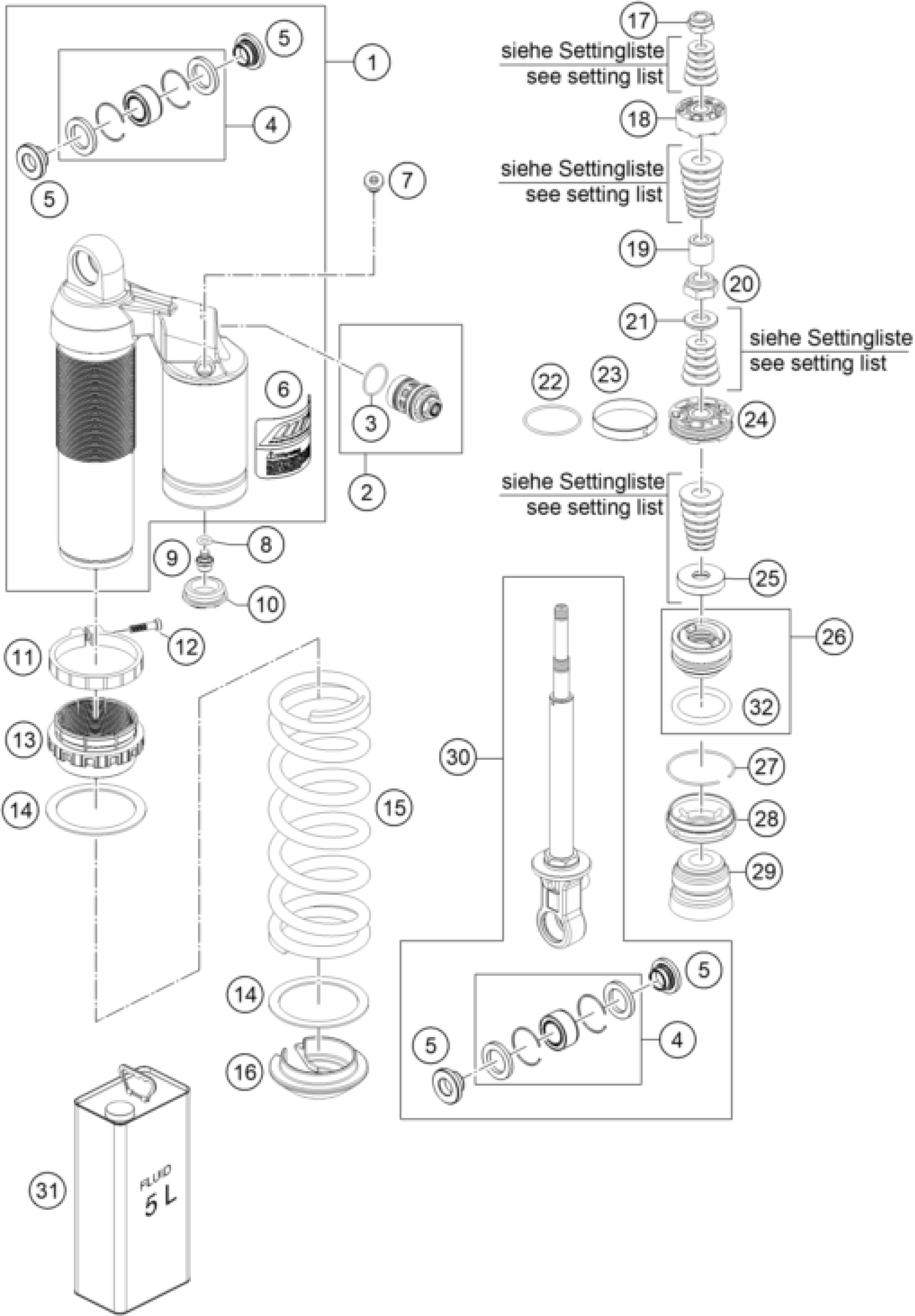

KTM 85 SX 17/14 2015 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

MONOSHOCK CASE CPL.

46181019S2

Unavailable

2

DCC-COMPR.DAMP.CONTROL CPL. 07

50180213S10

Unavailable

3

O-ring 25x1,5 Viton70

50180218

Unavailable

4

Ball joint bearing kit top 12m

R12012

Unavailable

5

Distance bush 12x15/18/24,5x10

46180007

Unavailable

6

Sticker WP warning 47x63

52000087

Unavailable

7

HS cylinder-head screw R1/8 l8

50180095

Unavailable

8

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

9

HS lock screw M5x6

36120151

Unavailable

10

Rubber cap do not open 22x5,5

46811208

Unavailable

11

Clamp d61

46181014

Unavailable

12

HS cylinder-head screw M5x20 D

14460042

Unavailable

13

Spring retainer M55x2x71x35 pl

46181013

Unavailable

14

Washer 58,6x73,6x1,5

50180410

Unavailable

15

SPRING 215 30 N/MM D=9,00 ORAN

91010272

Unavailable

15

Mainspring (59) 35-215 damper

91010273

Unavailable

15

SPRING 215 40 N/MM D=9,50 ORG

91010274S

Unavailable

16

Spring retainer 28x56x15

46180349

Unavailable

17

PISTON ROD NUT M10X1

46180356

Unavailable

18

Piston 10,05x35,4x13,65 3,5/5,

46180744

Unavailable

19

Bush 10x17x17

46181025

Unavailable

20

Piston rod nut M12x1

46810474

Unavailable

21

Washer 12x24x2,5

46811258

Unavailable

22

O-ring 37x,82x1,78 Viton70 gre

46810035

Unavailable

23

Piston ring 43,95x45,95x8

46811206

Unavailable

24

Piston 12,05x45,5x12,6 4,5/7

46810560

Unavailable

25

Rebound disc 12x34x7 h4

46180337

Unavailable

26

Sealholder 46x28 cpl.

46180669S

Unavailable

27

Round-wire snap ring 49x1,5

46810010

Unavailable

28

Cover 46,12x6,2 h15,7

46180338

Unavailable

29

Rubber pad 17,2x45,2x40 black

50180276

Unavailable

30

MONOSHOCK LOWER PART

46180520S5

Unavailable

31

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

32

O-ring 36x5 NBR70

14460004

Unavailable
