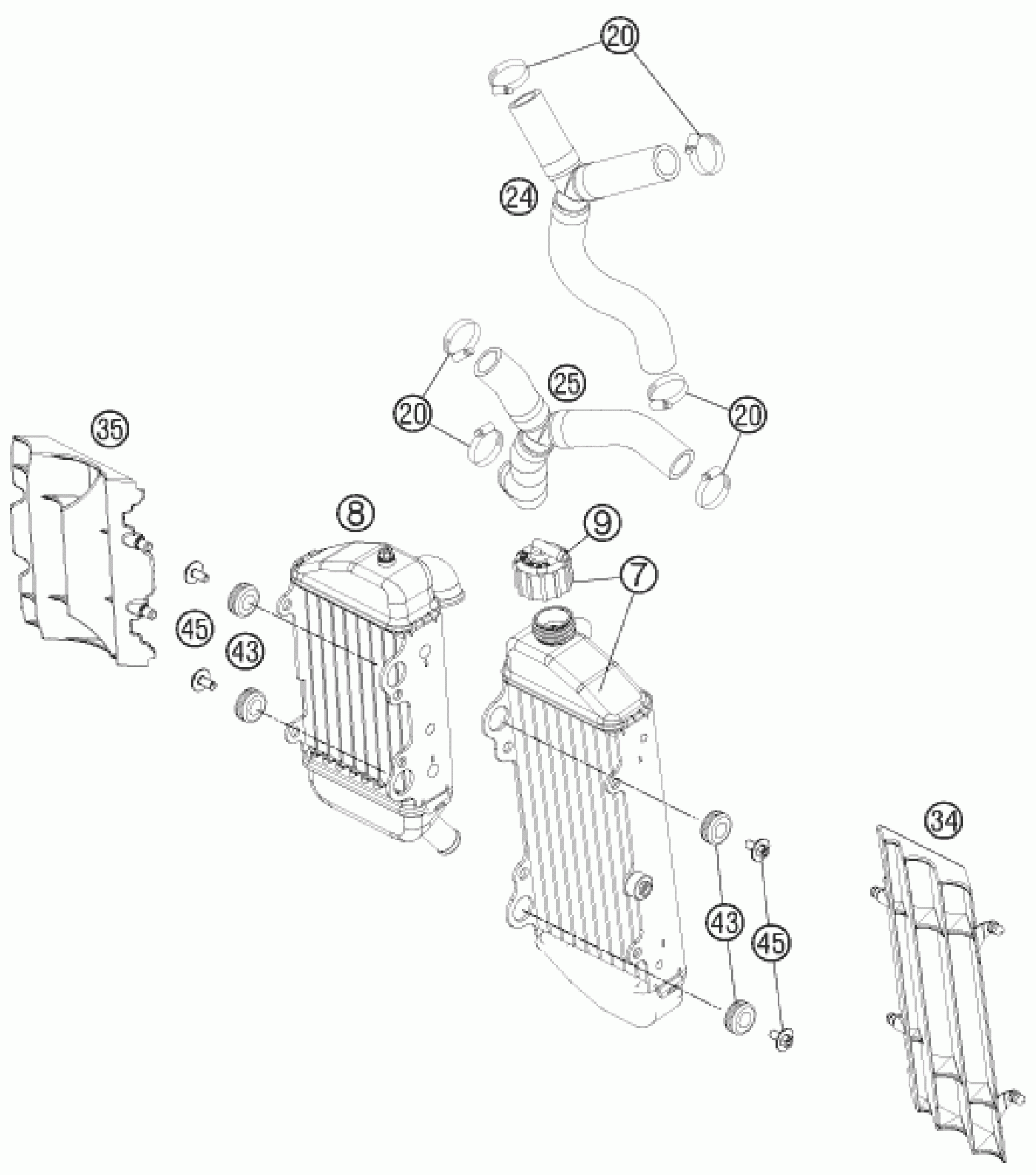

KTM 85 SX 17/14 2014 COOLING SYSTEM Diagram

#

Description

Price

7

RADIATOR L/S

47135007000

Unavailable

8

RADIATOR R/S

47135008000

Unavailable

9

RADIATOR CAP 1,8 BAR

72035016000

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

24

RADIATOR HOSE CPL. TOP

47135025033

Unavailable

25

RADIATOR HOSE BELOW

47135028033

Unavailable

34

RADIATOR PROTECTOR L/S

4713503400030

Unavailable

35

RADIATOR PROTECTOR 65 SX 2009

46235034000

Unavailable

43

RUBBER SLEEVE D=12MM

41001052000

Unavailable

45

COLLAR SCREW M6X12 TX

0024060123

Unavailable
