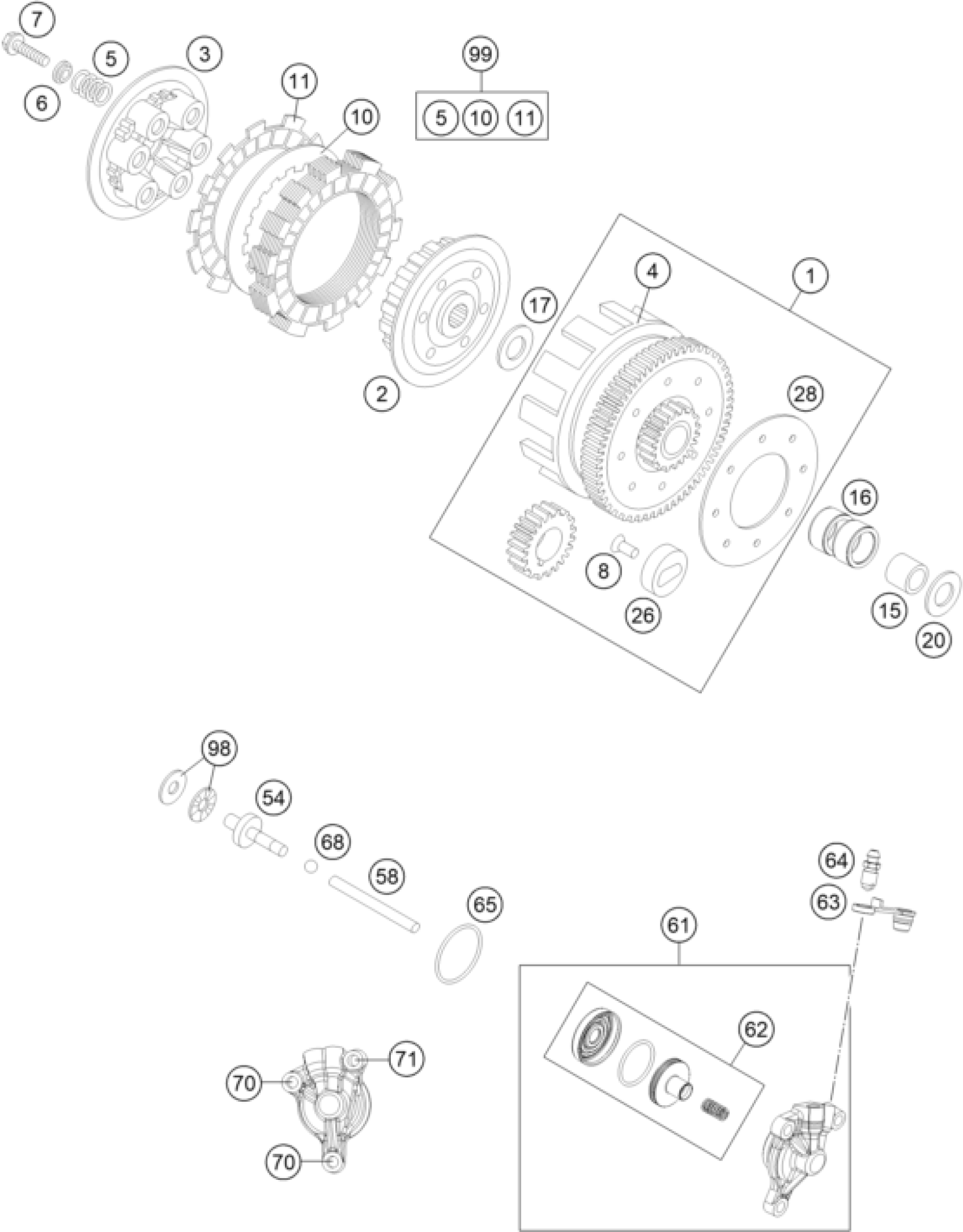

KTM 85 SX 17/14 2014 CLUTCH Diagram
#
Description
Price
1
OUTER CLUTCH HUB CPL. 85 SX 13
47032001244
Unavailable
2
INNER CLUTCH HUB 85 SX 2003
47032002000
Unavailable
3
PRESSURE CAP 85 SX 2003
47032003000
Unavailable
4
OUT. CLUTCH HUB LOOSE 85 SX 07
47032001100
Unavailable
5
CLUTCH SPRING 85 SX 2003
47032005000
Unavailable
6
SPRING RETAIN. 5,1X10,2X15X2,5
47032006000
Unavailable
7
HH collar screw M5x20 TX30
0025050206
Unavailable
8
RIVET DIN0661 5X14
47032008000
Unavailable
10
STEEL DISC 85 SX 03
47032010000
Unavailable
11
LINING DISC 85 SX 2003
47032011000
Unavailable
15
BUSHING 20X25X20,5
47032015000
Unavailable
16
NEEDLE BEAR K 25X29X10
0405252910
Unavailable
17
SUPPORT WASHER 18,5X35X1,5 03
47032017000
Unavailable
20
thrust washer 20x32x2
47032020000
Unavailable
26
DAMPING ELEMENT 85 SX 2003
47032026000
Unavailable
28
RETAINING PLATE 85 SX 2003
47032028000
Unavailable
54
PRESSURE PLATE 85 SX 2003
47032054000
Unavailable
58
PUSH ROD 85 SX 2003
47032058000
Unavailable
61
OUTPUT CYLINDER CPL.
47132061044
Unavailable
62
Piston cmpl.
47132066000
Unavailable
64
BLEEDER SCREW M8X1
47013085000
Unavailable
65
O-RING 31,47X1,78
0770031018
Unavailable
68
BALL D=6MM 85 SX 2003
47032068000
Unavailable
70
HH COLLAR SCREW M 6X16 WS=8
0015060163
Unavailable
71
HH COLLAR SCREW M 6X30 SW=8
0015060303
Unavailable
98
AXIAL NEEDLE BEARING 85 SX 03
47032098000
Unavailable
99
CLUTCH KIT 105/85 SX 03-14
47032010010
Unavailable
63
CAP FOR BLEEDER SCREW
47013021000
Unavailable
