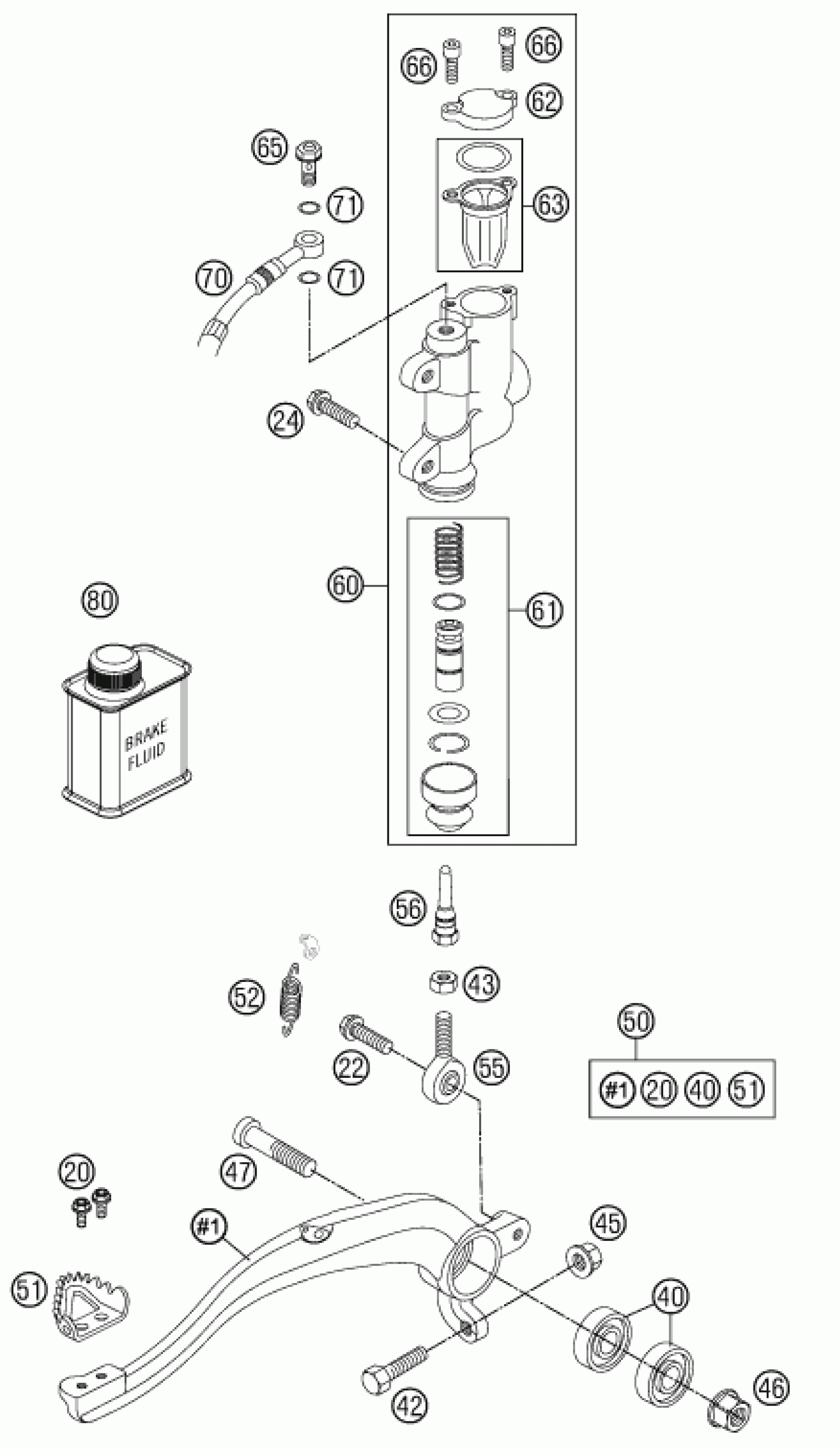

KTM 85 SX 17/14 2013 REAR BRAKE CONTROL Diagram

#

Description
Price

22

HH collar screw M6x20 TX30

0025060206

Unavailable

43

Hex. nut DIN 934 M6

0934060003

Unavailable

20

HH collar screw M5x12 TX30

0025050126

Unavailable

24

HH collar screw M6x12 TX30

0025060126

Unavailable

40

deep groove ball bearing SKF 6

0625060002

Unavailable

42

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

45

flanged nut M8 WS10

46030045000

Unavailable

46

COLLAR NUT M10 WS=13

54630044000

Unavailable

47

AH-COLLAR SCREW M10X40 ISA45

0032100406S

Unavailable

50

FOOT BRAKE LEVER CPL. 85 SX 03

47013050044

Unavailable

51

STEP PLATE FOR BRAKE LEVER

54813051000

Unavailable

52

RETURN SPRING FOR BRAKELEVER

54603062000

Unavailable

55

SWIVEL HEAD KA6 03

54813055000

Unavailable

56

PRESSURE ROD 85 SX 06

47013056100

Unavailable

60

FOOT BRAKE CYL.R. CPL. D=11 05

47013060200

Unavailable

60

FOOTBRAKECYL.R. CPL. D=12 05

47013060300

Unavailable

61

REP. SET PISTON REAR D=11 2003

47013061000

Unavailable

61

Rep.set piston, rear D=12 2004

47013061100

Unavailable

62

CYLINDER COVER REAR 85 SX 03

47013062000

Unavailable

63

GASKET CYLINDER COVER REAR 03

47013063000

Unavailable

65

Hollow screw, brake cylinder 0

47013025000

Unavailable

66

AH.SCREW DIN0912-M 4X10

0912040103

Unavailable

70

BRAKE HOSE REAR 85 SX 03

47013070000

Unavailable

71

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

80

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
