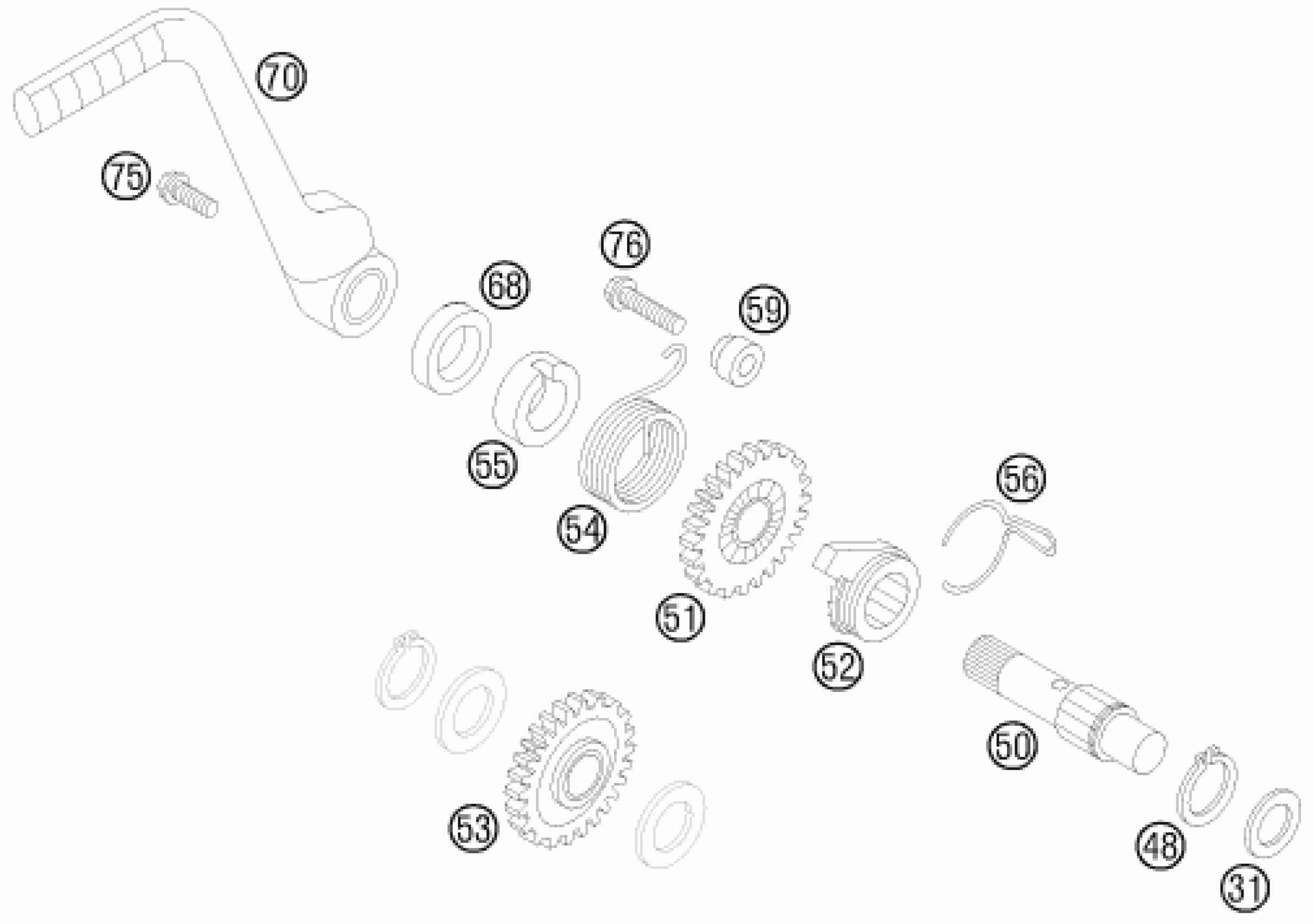

KTM 85 SX 17/14 2013 KICK STARTER Diagram

#

Description
Price

31

STOP DISC 15X25X1

47033040000

Unavailable

48

CIRCLIP DIN0471-19X1,2

0471190120

Unavailable

50

KICKSTARTER SHAFT 85 SX LONG

47033050100

Unavailable

51

KICKSTART GEAR 85 SX 2003

47033051000

Unavailable

52

RATCHET GEAR 85 SX 2003

47033052000

Unavailable

53

KICKST. INTERMEDIATE GEAR 2003

47033053000

Unavailable

54

KICKSTART SPRING 85 SX 2003

47033054000

Unavailable

55

DRIVING HUB

46033055000

Unavailable

56

RATCHET GEAR SPRING 85 SX 2003

47033056000

Unavailable

59

SPRING SPACER 85 SX 2003

47033059000

Unavailable

68

radial shaft seal 14x24x6 B

0760142460

Unavailable

70

KICKSTARTER CPL. 85 SX 2003

47033070000

Unavailable

75

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

76

HH COLLAR SCREW M 5X25 WS=8

0015050253

Unavailable
