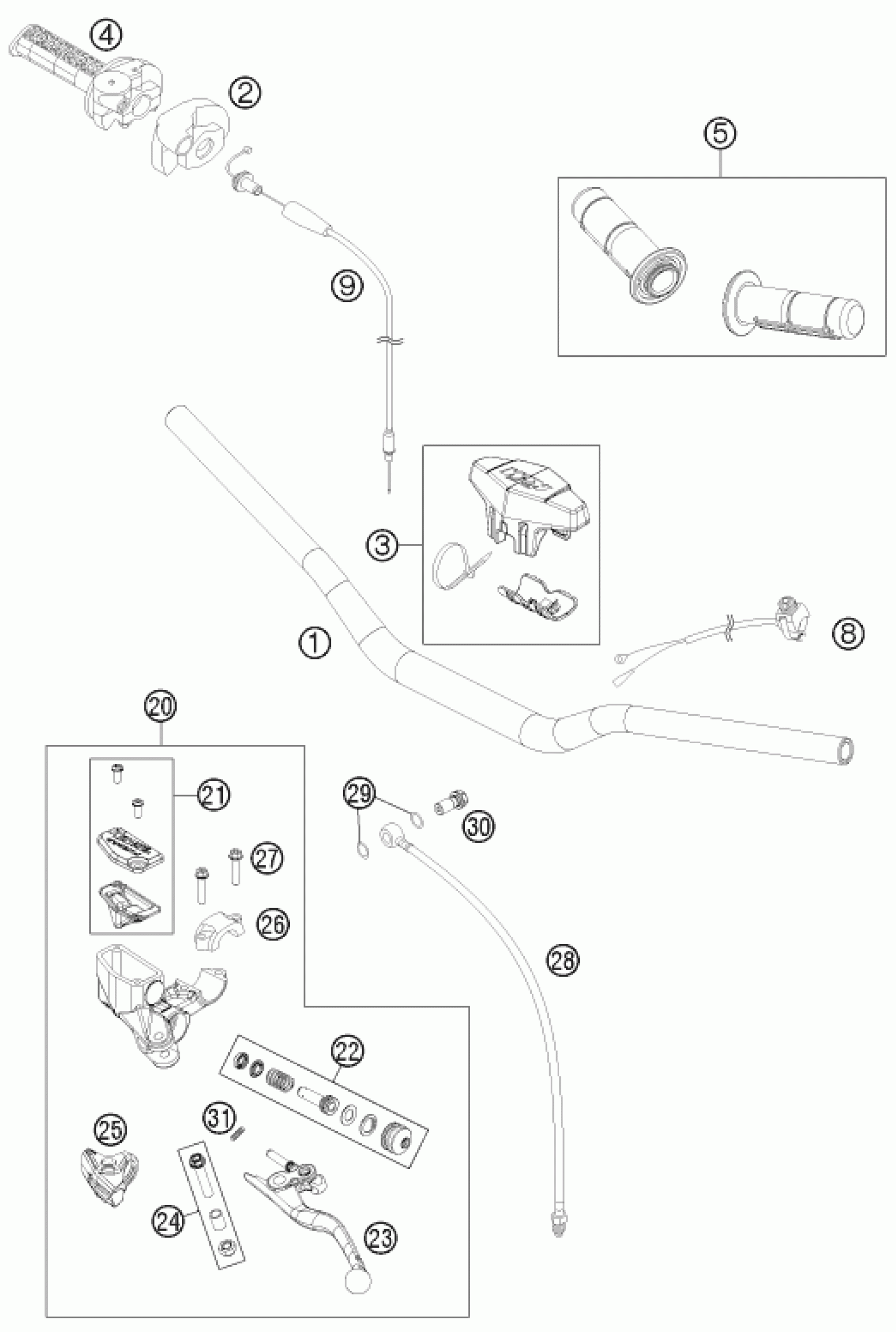

KTM 85 SX 17/14 2013 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR 85SX 2013

47102001000

Unavailable

2

PROTECTION COVER '97

50302020000

Unavailable

29

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

4

THR.TWIST CRIP CPL. W.O C.'97

50302010000

Unavailable

3

Bar pad cmpl.

77202002144

Unavailable

30

Hollow screw, brake cylinder 0

47013025000

Unavailable

31

SPRING FOR CLUTCH LEVER

72002035000

Unavailable

9

THROTTLE CABLE 2T.DOM/KEIH.

51502091100

Unavailable

8

Kill switch

50311089200

Unavailable

5

GRIP SET DUAL COMPOUND

63002021100

Unavailable

21

COVER F. MASTER CYLINDER CPL.

72002003000

Unavailable

22

REP. SET PISTON 9,5MM

47002032000

Unavailable

23

LEVER CPL.

70013002000

Unavailable

24

LEVER SCREW CPL.

70002038000

Unavailable

25

MUDCOVER CLUTCH LEVER

72002037000

Unavailable

26

CLAMP

72013005000

Unavailable

20

MASTER CYLINDER CPL. 9,5MM

72002030000

Unavailable

27

HH collar screw M6x25 TX30

0025060256

Unavailable

28

CLUTCH PIPE

47132063000

Unavailable
