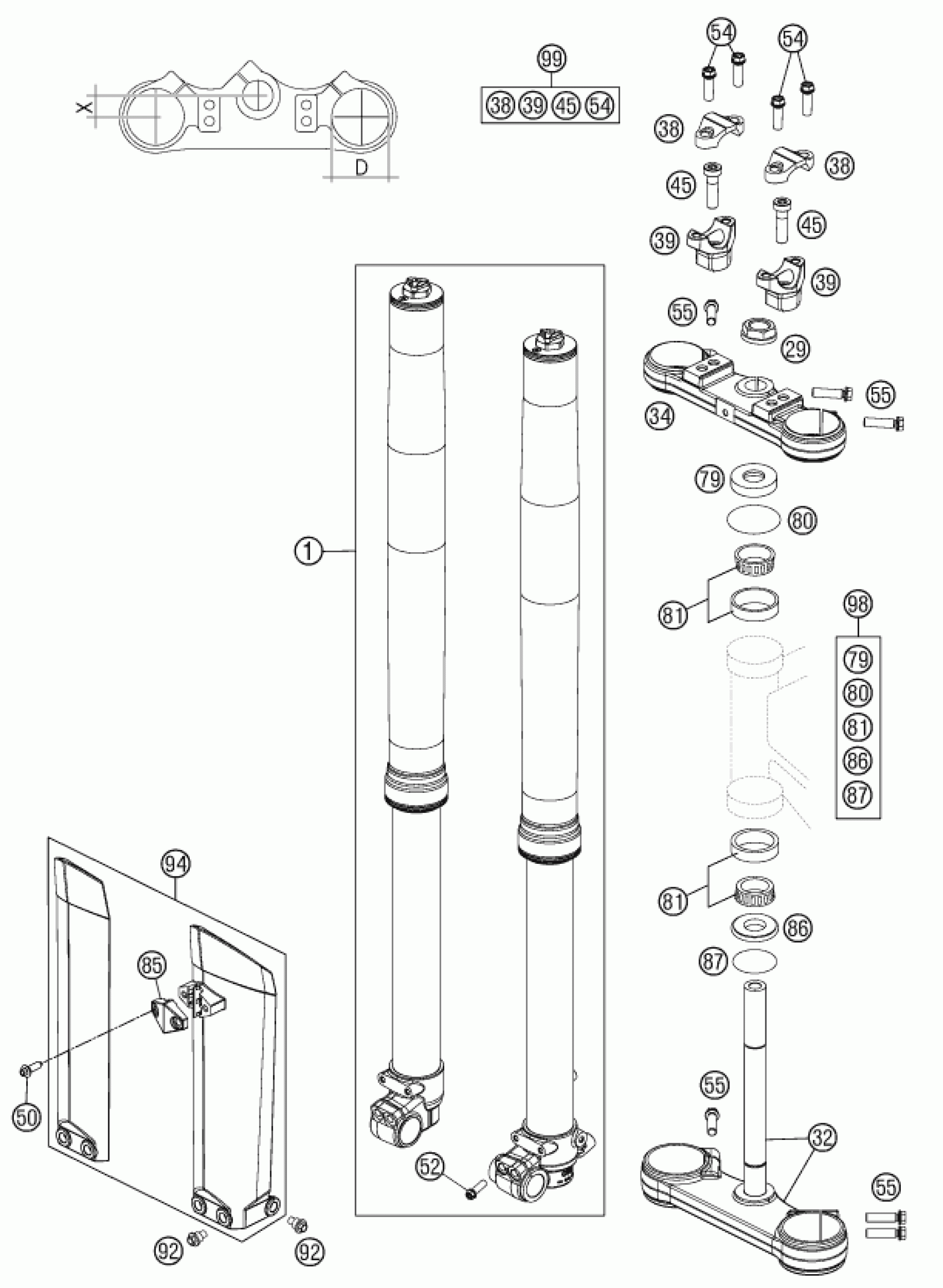

KTM 85 SX 17/14 2013 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

99

HANDLEBAR SUPPORT KIT D28/H37

00050000921

Unavailable

54

HH collar screw M8x25

0025080256

Unavailable

1

FORK WP 85SX 2013

05187M0501

Unavailable

29

HH NUT M20X1,5 WS=27 RIGHT

59030029000

Unavailable

32

BOT.TRIPLE CLAMP CPL. 85 SX 03

47001032014

Unavailable

34

TOP FORK PLATE 85 SX

47101034014

Unavailable

38

HANDLEBAR CLAMP 28MM

77201038000

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

Unavailable

45

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

50

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

52

HH collar screw M8x20

0025080206

Unavailable

55

HH collar screw M8x30

0025080306

Unavailable

79

COVERING CAP

49001086000

Unavailable

80

O-ring 40.94X2.62 NBR70

0770021300

Unavailable

81

TAPERED ROLLER BEARING 32004X

49001081000

Unavailable

85

CLAMP F. SPEED. CABLE D=6MM 08

7800108500028

Unavailable

86

PROTECTION RING 20,1X39X5

46001086000

Unavailable

87

O-RING 36,00X3,00 NBR

0770360030

Unavailable

92

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

94

FORK PROTECTOR SET 85SX WHITE

4710109400028

Unavailable

98

STEARING HEAD REP. KIT MINI

00050000931

Unavailable
