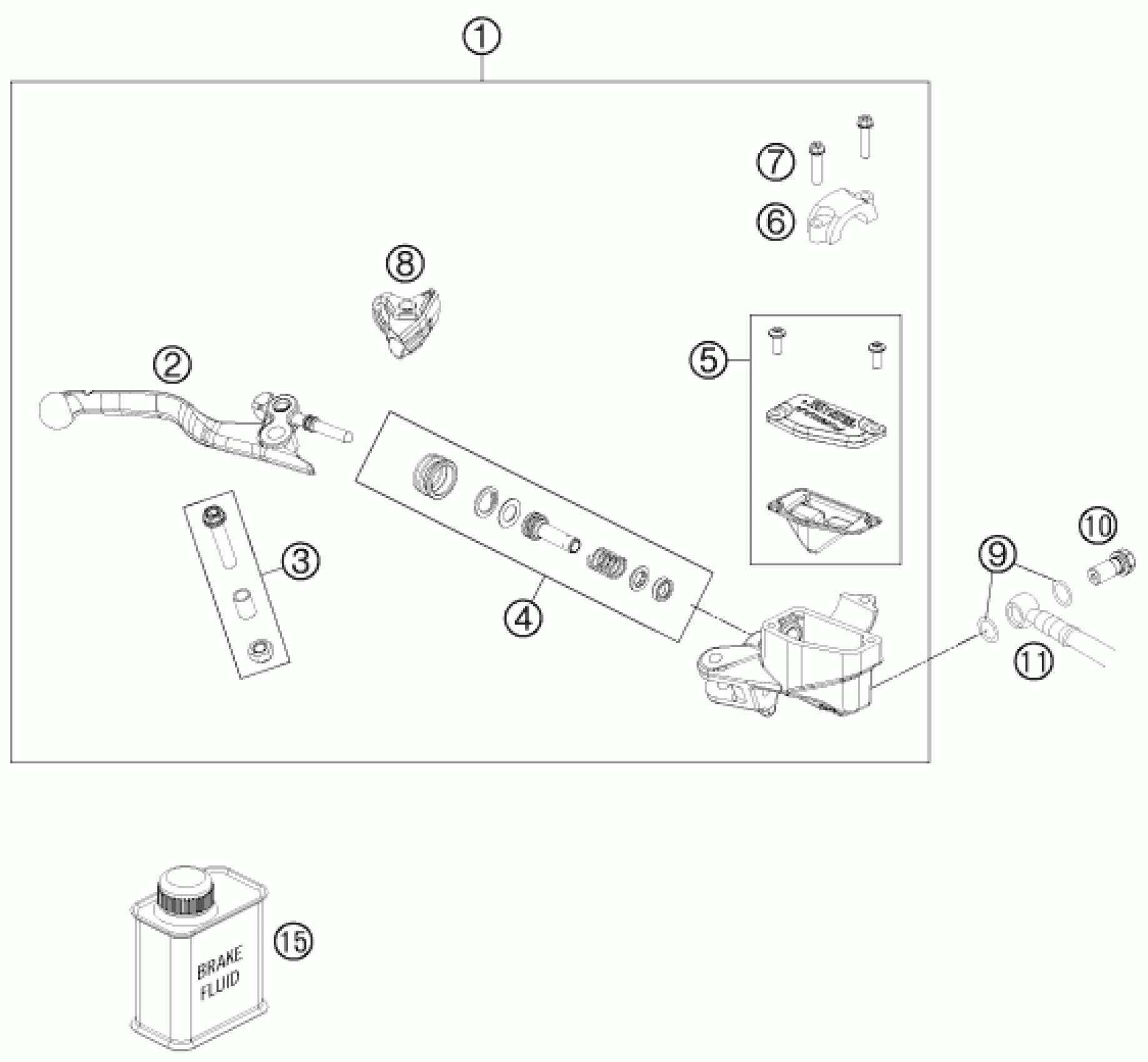

KTM 85 SX 17/14 2013 FRONT BRAKE CONTROL Diagram

#

Description

Price

1

HAND BRAKE CYLIN. CPL. 9,5MM

47113001000

Unavailable

2

LEVER CPL.

70013002000

Unavailable

3

LEVER SCREW CPL.

70002038000

Unavailable

4

REP. SET PISTON 9,5MM

47002032000

Unavailable

5

COVER HAND BRAKE CYLINDER CPL.

70013003000

Unavailable

6

CLAMP

47113005000

Unavailable

7

HH collar screw M6x25 TX30

0025060256

Unavailable

8

MUDCOVER HANDBRAKE LEVER

70013004000

Unavailable

9

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

10

Hollow screw, brake cylinder 0

47013025000

Unavailable

11

BRAKE HOSE FRONT 1065MM

70013010100

Unavailable

15

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
