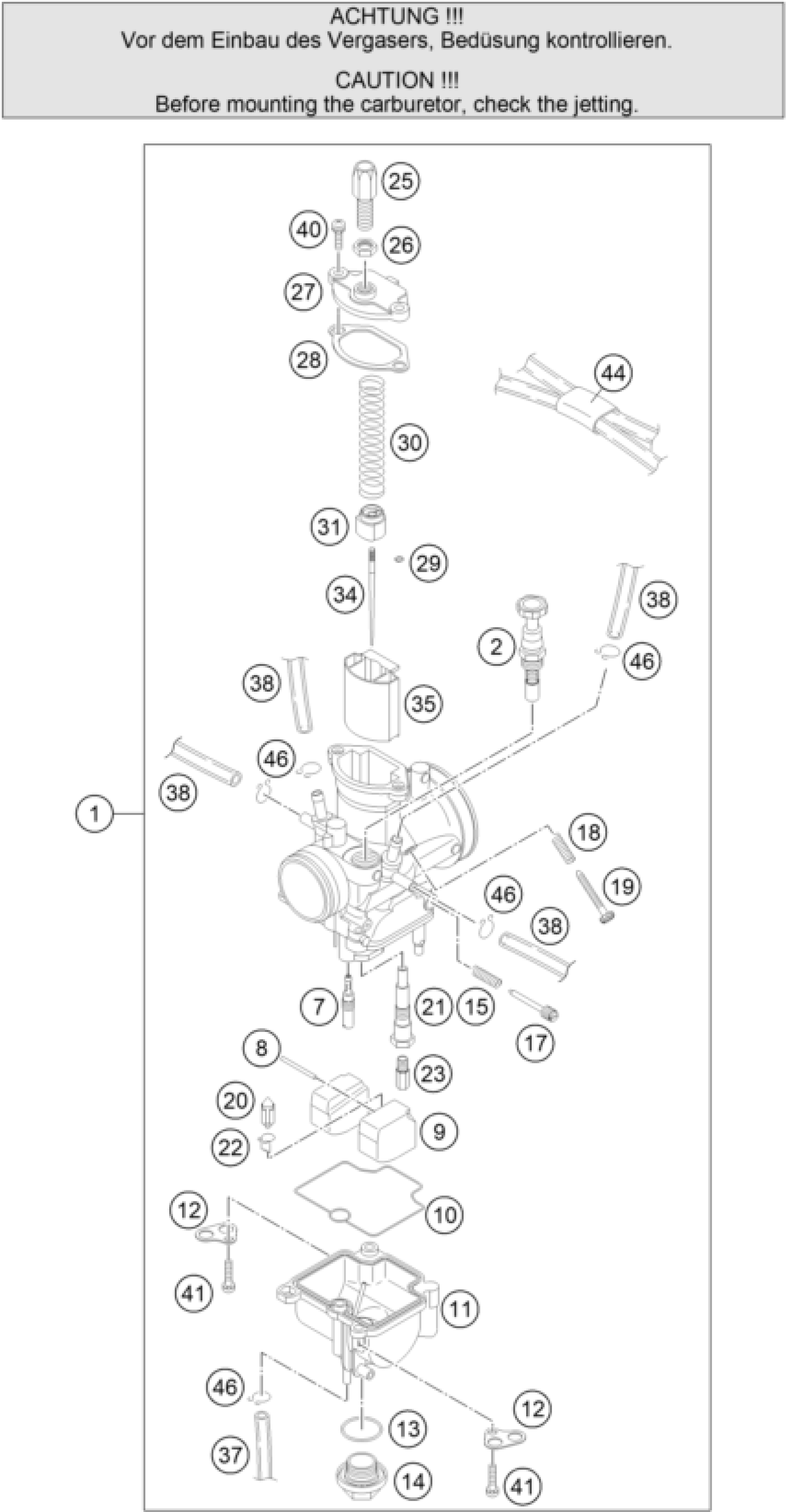

KTM 85 SX 17/14 2013 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR KEIHIN PWK 28 2003

47031001000

Unavailable

2

STARTER PISTON CPL.

54631245000

Unavailable

7

IDLE JET 38 KEIHIN

54531607038

Unavailable

7

IDLE JET 40 KEIHIN

54531607040

Unavailable

7

IDLE JET 45 KEIHIN

54531607045

Unavailable

8

ARM PIN FLOAT

57331008000

Unavailable

9

FLOAT CPL. PWK28 03

47031009000

Unavailable

7

IDLE JET 42 KEIHIN

54531607042

Unavailable

7

IDLE JET 48 KEIHIN

54531607048

Unavailable

7

IDLE JET 50 KEIHIN

54531607050

Unavailable

10

FLOAT CHAMBER GASKET

47031010000

Unavailable

11

FLOAT CHAMBER PWK28 03

47031011000

Unavailable

12

RETAINING PLATE FOR BLEEDER

54531612100

Unavailable

13

O-RING 18,00X2,30 NBR 70

0770180230

Unavailable

14

PLUG M 18X1

54531699000

Unavailable

15

SPRING FOR ADJUSTMENT SCREW

54531615000

Unavailable

17

ADJUSTMENT SCREW

54531617000

Unavailable

18

SPRING

54631118000

Unavailable

19

ADJUSTMENT SCREW M 5

54631219100

Unavailable

20

FLOAT NEEDLE CPL.

47031020000

Unavailable

21

NEEDLE JET

47031021000

Unavailable

22

CLAMP

54531621000

Unavailable

23

MAIN JET 115 KEIHIN

54531623115

Unavailable

23

MAIN JET 118 KEIHIN

54531623118

Unavailable

23

MAIN JET 120 KEIHIN

54531623120

Unavailable

23

MAIN JET 122 KEIHIN

54531623122

Unavailable

46

Clamp 6mm

54531696000

Unavailable

23

MAIN JET 125 KEIHIN

54531623125

Unavailable

23

MAIN JET 128 KEIHIN

54531623128

Unavailable

23

MAIN JET 130 KEIHIN

54531623130

Unavailable

23

MAIN JET 132 KEIHIN

54531623132

Unavailable

23

MAIN JET 135 KEIHIN

54531623135

Unavailable

25

ADJUSTMENT SCREW M 6X0,75

54531625000

Unavailable

26

HEXAGON NUT M 6X0,75 DIN0439

52031126000

Unavailable

27

CARBURETOR COVER PWK28 03

47031027000

Unavailable

28

CARBURETOR COVER GASKET PWK28

47031028000

Unavailable

29

CLIP FOR JET NEEDLE

54531629000

Unavailable

30

THROTTLE VALVE SPRING

47031030000

Unavailable

31

SPRING CAP

47031031000

Unavailable

34

JET NEEDLE N5HG KEIHIN

47031034000

Unavailable

34

JET NEEDLE N5HF KEIHIN

47031034100

Unavailable

34

JET NEEDLE N5HH KEIHIN

47031034200

Unavailable

35

THROTTLE VALVE 3,5

47031035000

Unavailable

37

PVC-HOSE 3X5MM

52031137001

Unavailable

38

PVC-HOSE 4X6MM

31007007101

Unavailable

40

HH COLLAR SCREW M 4X16 WS=6

0016040163

Unavailable

44

PLASTIC-CLIP

47031084000

Unavailable

41

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

Unavailable
