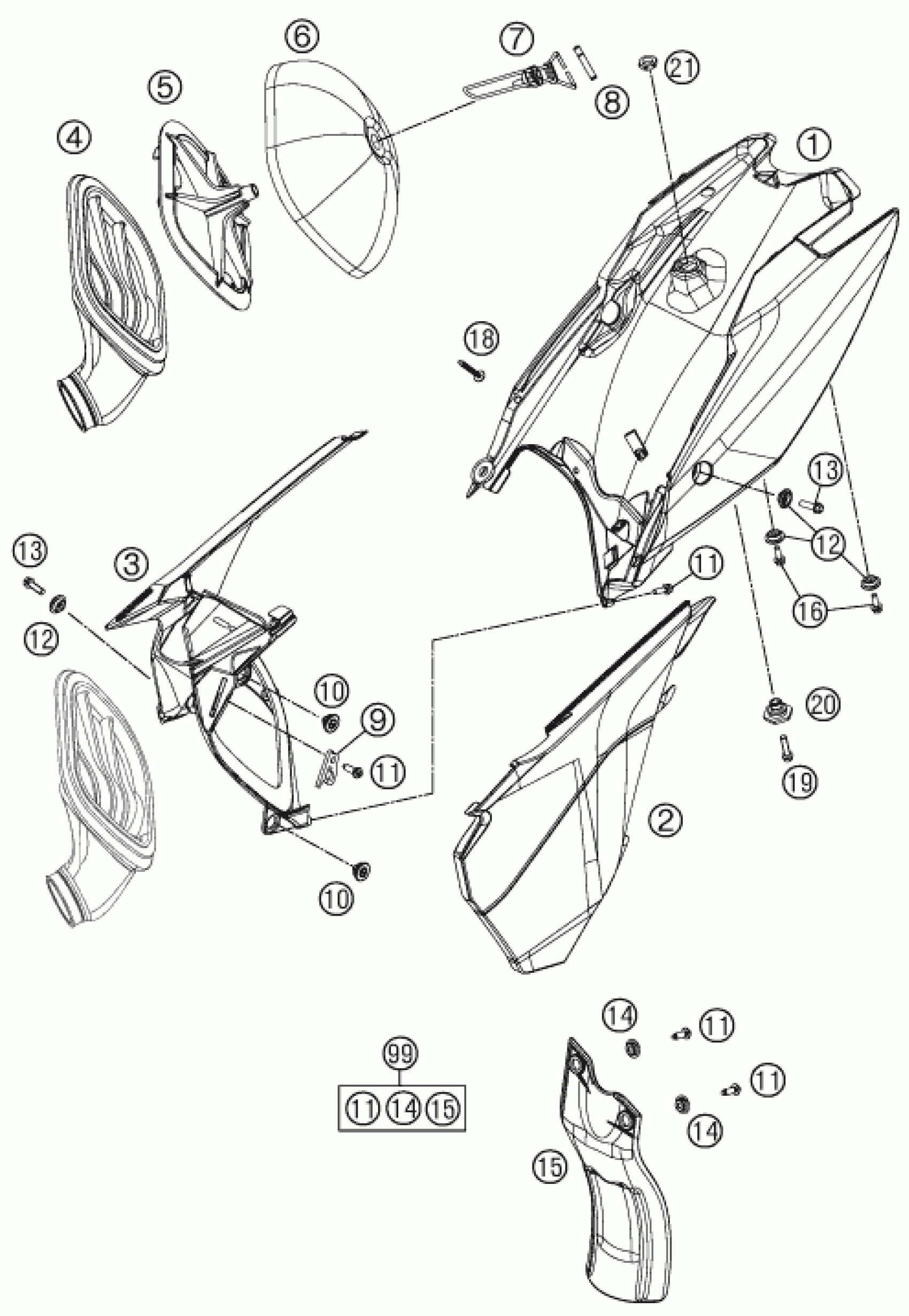

KTM 85 SX 17/14 2013 AIR FILTER Diagram

#

Description
Price

4

CARBURETOR CONNECTING

47106026000

Unavailable

5

FILTER CARRIER

54806516000

Unavailable

6

AIR FILTER

77206015000

Unavailable

1

FILTER BOX PART REAR WHITE

4710600105228

Unavailable

2

FILTER COVER ORANGE 2013

4710600300004A

Unavailable

3

AIR BOX PART ORANGE 2013

4710600101004

Unavailable

7

AIR FILTER SUPPORT BRACKET CPL

47106017000

Unavailable

99

SPLASH PROTECTOR KIT 85 SX

47106010010

Unavailable

19

HH collar screw M6x25 TX30

0025060256

Unavailable

20

BUSHING FOR SEAT FASTENING 03

54807048000

Unavailable

21

COLLAR NUT M12X1/WS17 H=5MM

50314057050

Unavailable

11

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

9

FASTEN. DEVICE FILTER SUPPORT

47106019000

Unavailable

8

FILTER SUPPORT BUSH 07

77306018000

Unavailable

12

COLLAR BUSH. F.REAR FENDER 07

77308013010

Unavailable

15

SPLASH PROTECTION

47106010000

Unavailable

14

BUSH FOR CHAINSLIDER GUARD 02

46104066050

Unavailable

16

HH collar screw M5x16 TX30

0025050166

Unavailable

18

SPECIAL SCREW T60 6X40 WS=6

0017060403

Unavailable

13

HH collar screw M6x20 TX30

0025060206

Unavailable

10

quick release rubber grommet

47106003160

Unavailable
