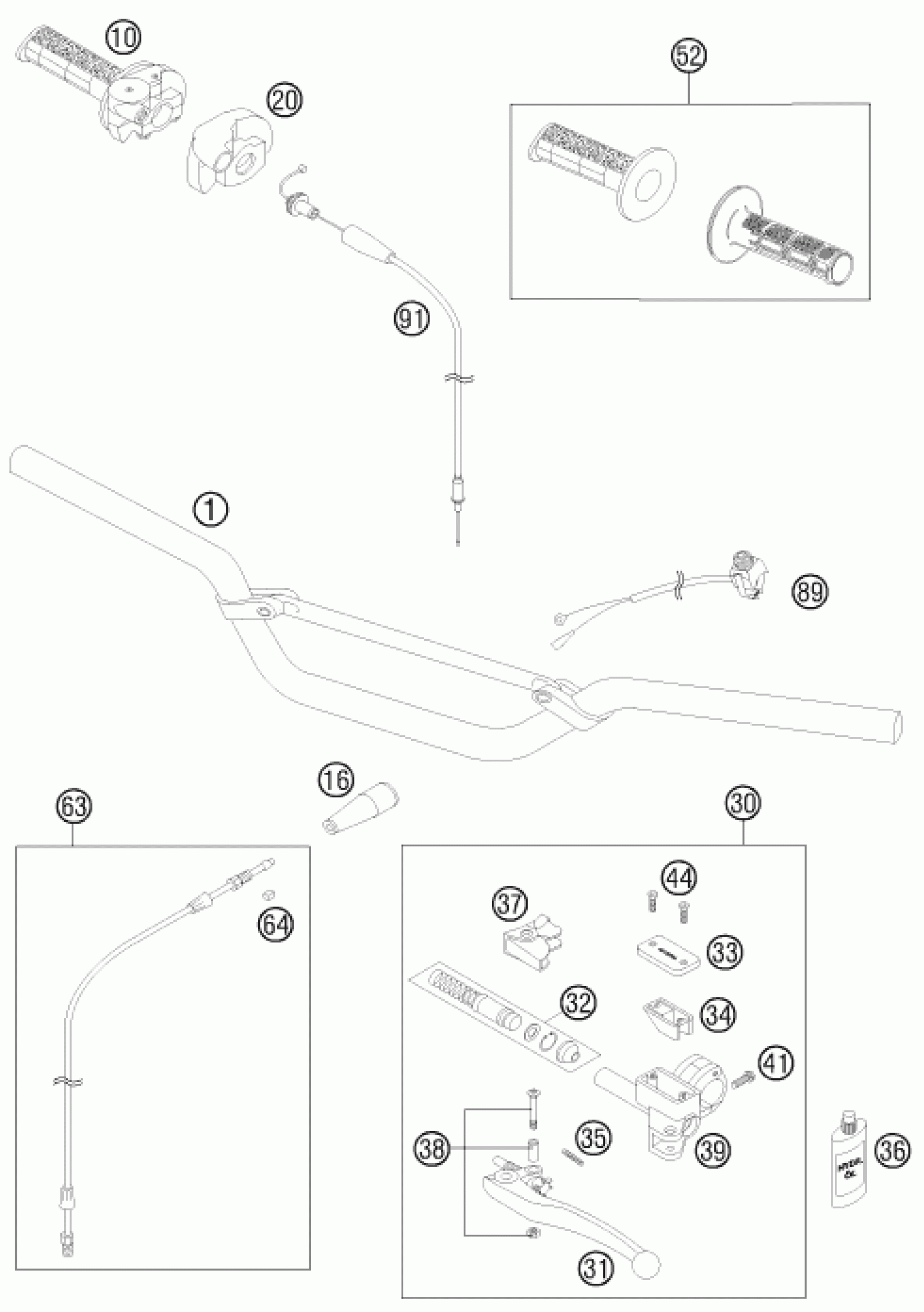

KTM 85 SX 17/14 2012 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR

47002001300

Unavailable

10

THR.TWIST CRIP CPL. W.O C.'97

50302010000

Unavailable

16

PROTECTION CAP

54002016000

Unavailable

20

PROTECTION COVER '97

50302020000

Unavailable

30

MASTER CYLINDER CPL. D=9MM 05

46102030100

Unavailable

31

CLUTCH LEVER SHORT CPL. 2003

54602031000

Unavailable

31

CLUTCH LEVER LONG CPL. 2003

59002031000

Unavailable

33

COVER HYD.CLUTCH 2T 2000

50302033100

Unavailable

32

REP.KIT PISTON 9,0MM RAC. 2004

59002032100

Unavailable

34

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

35

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

38

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

39

CLAMP WITH PIN 2000

50302030150

Unavailable

41

HH collar screw M6x20 TX30

0025060206

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

52

GRIP SET DUAL COMPOUND

63002021100

Unavailable

63

PIPE KIT FOR HYDR.CLUTCH 65 SX

46132063000

Unavailable

64

SELF CUTTING RING HYDR.PIPE

50332063050

Unavailable

89

Kill switch

50311089200

Unavailable

91

THROTTLE C. 125-380 DOM/KEIH

50302091000

Unavailable
