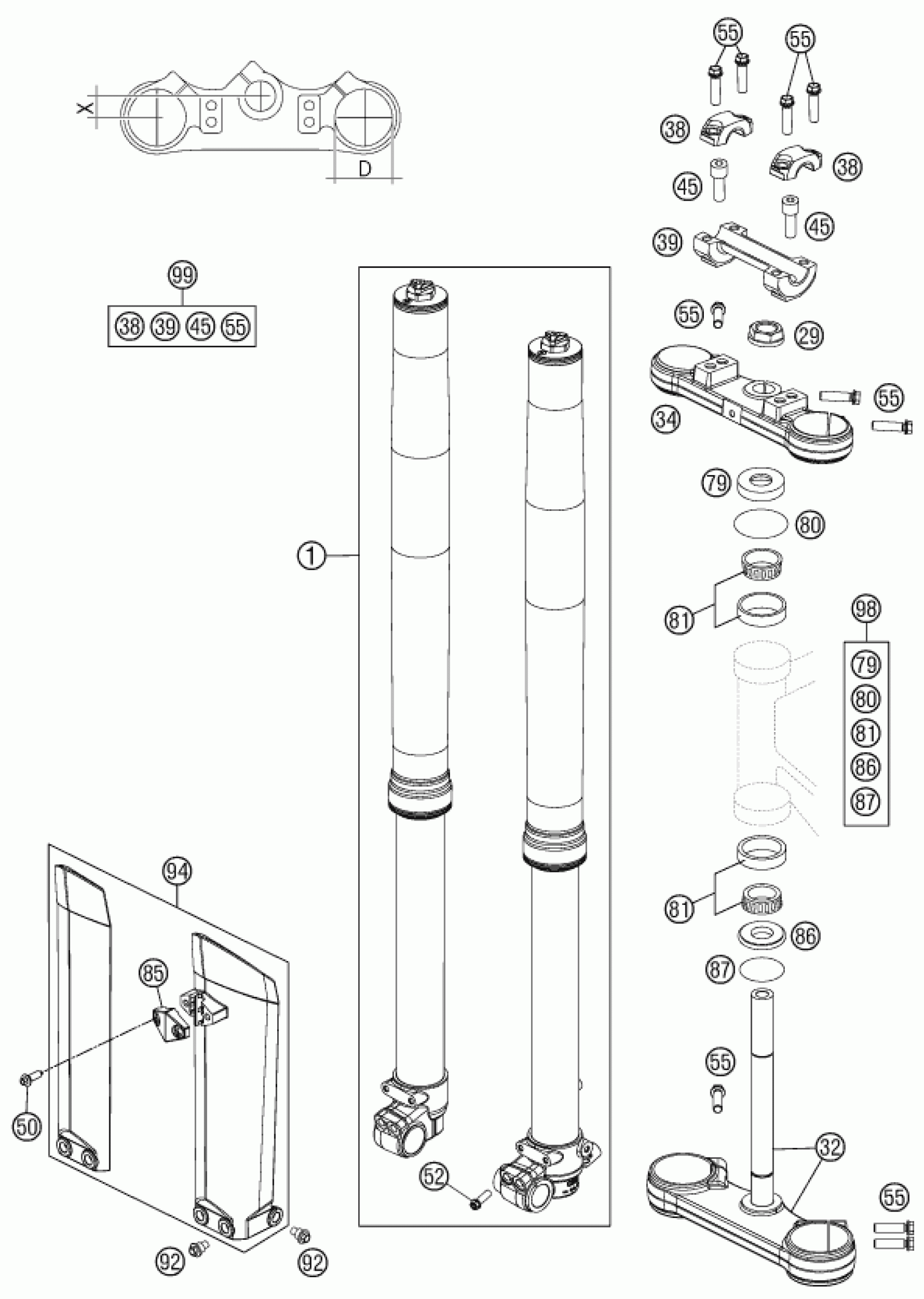

KTM 85 SX 17/14 2012 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK WP 85/105 SX

05187L0501

Unavailable

29

HH NUT M20X1,5 WS=27 RIGHT

59030029000

Unavailable

32

BOT.TRIPLE CLAMP CPL. 85 SX 03

47001032014

Unavailable

34

TOP TRIPLE CLAMP 85 SX 2003

47001034014

Unavailable

38

HANDLEBAR CLAMP D=22MM 2001

50301038000

Unavailable

39

HANDLEBAR SUPPORT 22MM 2T 2000

59001039000

Unavailable

45

AH collar screw M10x25 ISA45

0032100256S

Unavailable

50

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

52

HH collar screw M8x20

0025080206

Unavailable

55

HH collar screw M8x30

0025080306

Unavailable

79

COVERING CAP

49001086000

Unavailable

80

O-ring 40.94X2.62 NBR70

0770021300

Unavailable

81

TAPERED ROLLER BEARING 32004X

49001081000

Unavailable

85

CLAMP F. SPEED. CABLE D=6MM 08

7800108500028

Unavailable

86

PROTECTION RING 20,1X39X5

46001086000

Unavailable

87

O-RING 36,00X3,00 NBR

0770360030

Unavailable

92

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

94

FORK PROTECTOR SET 85SX WHITE

4710109400028

Unavailable

98

STEARING HEAD REP. KIT MINI

00050000931

Unavailable

99

HANDLEBAR SUPPORT KIT

00050000923

Unavailable
