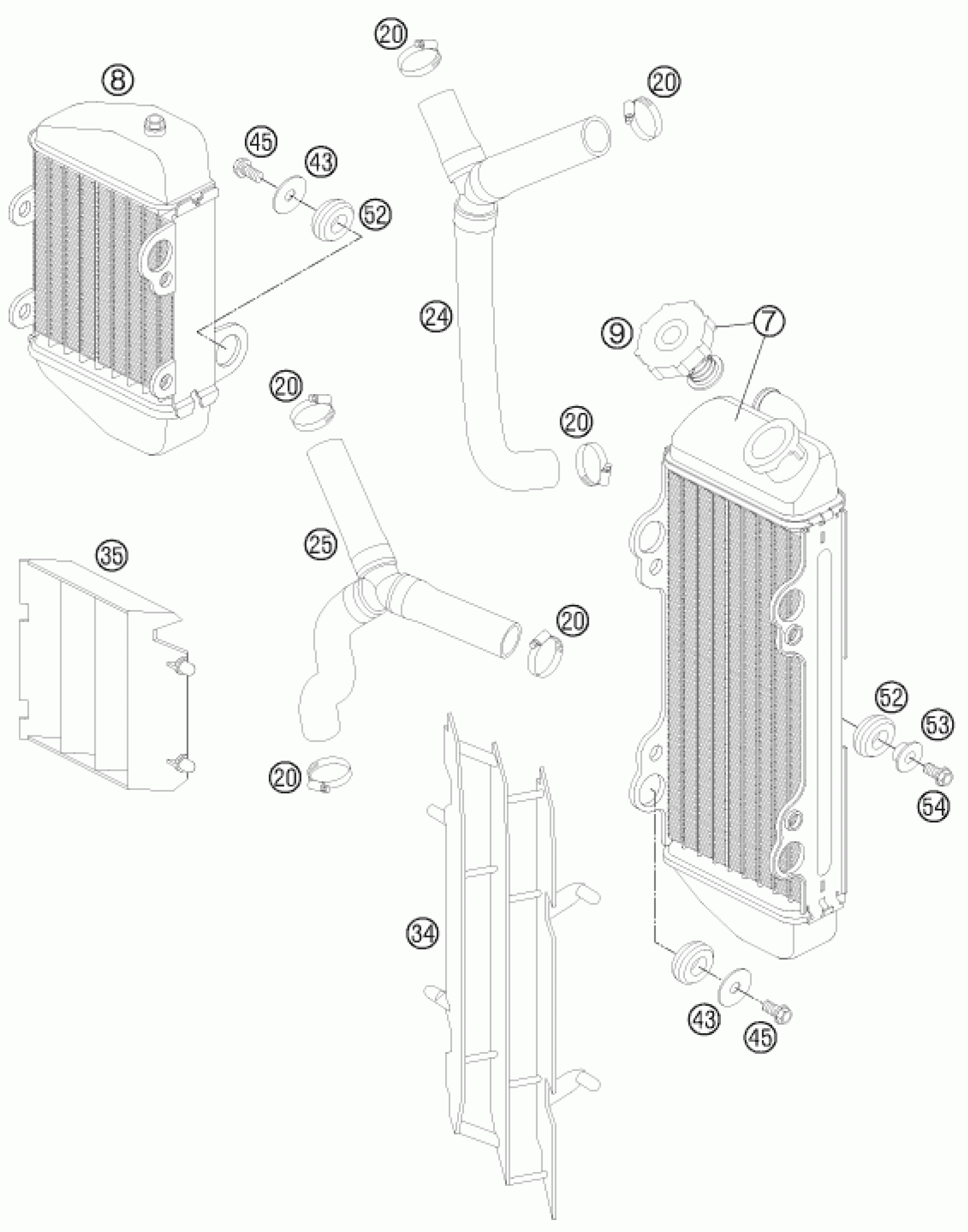

KTM 85 SX 17/14 2012 COOLING SYSTEM Diagram

#

Description
Price

7

RADIATOR L/S 85 SX 2005

47035007100

Unavailable

8

RADIATOR R/S 85 SX 2003

47035008000

Unavailable

9

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

24

RADIATOR HOSE TOP 85 SX 2003

47035024000

Unavailable

25

RADIATOR HOSE BOTTOM 85 SX 03

47035025000

Unavailable

34

RADIATOR PROTECTOR L. BLACK

5463503420030

Unavailable

35

RADIATOR PROTECTOR R. BLACK

4703503500030

Unavailable

43

Washer DIN9021-A 6.4

0021060003

Unavailable

45

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

52

RUBBER SLEEVE D=12MM

41001052000

Unavailable

53

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

54

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable
