1968 Suzuki 80K10 Piston - Crankshaft Diagram

← All diagrams

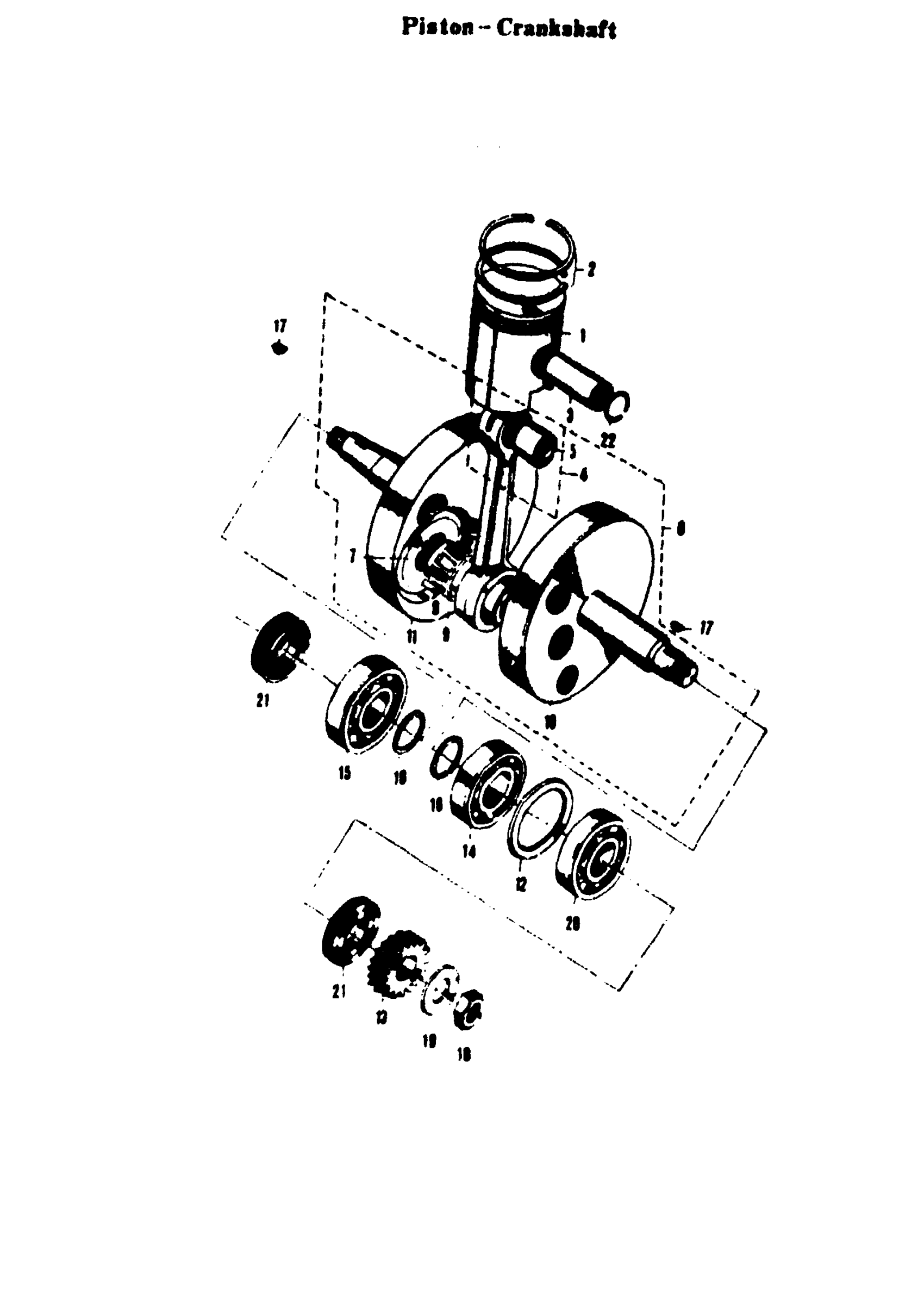

Find the part on the Piston - Crankshaft diagram for your 1968 Suzuki 80K10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1968 Suzuki 80K10 Piston - Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON | DARD

12110-03971

—
Out of stock

1

PISTON | SIZE 0.5 (0.02)

12110-03981

—
Out of stock

1

NO DESCRIPTION AVAILABLE | SIZE 1.0 (0.04) This part replaces 12110-03991.

12110-03732

—
Out of stock

2

PISTON RING SET | STANDARD OVERSIZE 0.5 (0.02)

12140-03010

1
Out of stock

2

NO DESCRIPTION AVAILABLE | OVERSIZE 1.0 (0.04) This part replaces 12140-03970.

12140-03010-050

—
Out of stock

3

PISTON PIN | O.D.=14 (0.55) L.=35.4

12151-03000

1
Out of stock

4

CONNECTING ROD COMP.

12161-03000

1
Out of stock

5

CONNECTING ROD SMALL END BUSH | O.D.=17 (0.67) I.D.=13. O.D.=17 (0.67) I.D.=13.L.=18 (0.71)

12162-03970

—
Out of stock

6

CRANKSHAFT ASS'Y

12001-03861

—
Out of stock

7

PIN CRANK | O.D.=19 (0.75) L. =50 (1. This part replaces 12211-03000.

12211-03020

1
Out of stock

8

CONNECTING ROD NEEDLE ROLLER | O.D.=3.5 (0.14) L.=12 (0.

12214-03000

14
Out of stock

9

ROLLER BEARING RETAINER | O.D. =26 (1.02) I.D.=26.

12215-03000

1
Out of stock

10

RIGHT CRANKSHAFT

12221-03000

—
Out of stock

11

LEFT CRANKSHAFT

12261-03001

—
Out of stock

12

CRANKSHAFT BEARING THRUST WAS | O.D.=47 (1.85) I.D.=35(1.38)6)

12351-03010

1
Out of stock

13

PRIMARY PINTON | N.T.=19

21111-03000

—
Out of stock

14

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

1
Out of stock

15

BEARING, COUNTER SHAFT This part replaces 08113-63040.

09262-20073

1
Out of stock

16

SHIM (20X28X0.5) This part replaces 08221-20285.

09181-20158

2
Out of stock

17

KEY

08341-31039

2
Out of stock

18

PRIMARY PINION NUT

09140-14002

1
Out of stock

19

PRIMARY PINION WASHER | O.D. =28 (1.1) I.D. =14.5 =3.0 (0.12)

09166-14003

—
Out of stock

20

RIGHT CRANKSHAFT OUTER BEARIN | O.D. =47 (1.85) I.D. =20 =9 (0.35)

09262-20004

—
Out of stock

21

CRANKSHAFT OIL SEAL | O.D. =37(1.45) I.D.=19=7 (0.28)

09283-20006

2
Out of stock
