1968 Suzuki 80K10 Flywheel Magneto Diagram

← All diagrams

Find the part on the Flywheel Magneto diagram for your 1968 Suzuki 80K10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

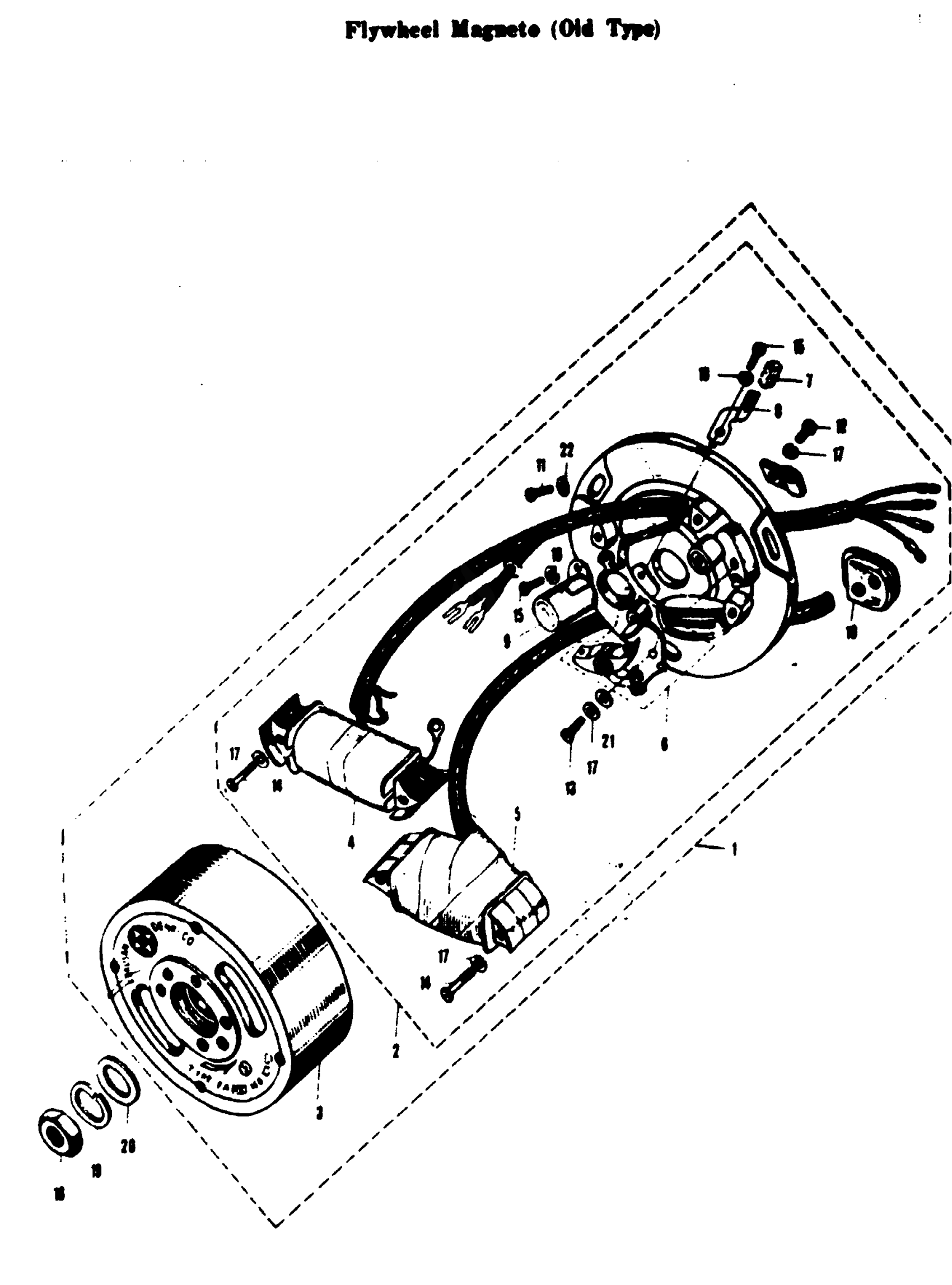

1968 Suzuki 80K10 Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLYWHEEL MAGNETO ASS'Y | ISO UP TO E.NO. K10-@1069

32100-03020

—
Out of stock

2

STATOR ASS'Y | ISO

32101-50032

—
Out of stock

3

FLYWHEEL ROTOR

32102-50162

—
Out of stock

4

LAMP COIL

32120-50162

—
Out of stock

5

LAMP COIL

32140-50032

—
Out of stock

6

CONTACT POINT ASS'Y | ISO

32240-03120

1
Out of stock

7

CONTACT BRESHER CAM OIL FELT

32338-03020

—
Out of stock

8

CONTACT BRESHER CAM OIL FELT

32339-50162

—
Out of stock

9

CONDENSER

32341-50162

—
Out of stock

10

MAGNATO WIRING HARNESS BUSHIN

32741-50162

—
Out of stock

11

3

$1.52

In stock

11

STRONG CROSS HEAD SCREW

02112-05161

—
Out of stock

12

SLOTTED PAN HEAD SCREW

02311-04058

—
Out of stock

12

SLOTTED PAN HEAD SCREW

02311-04051

—
Out of stock

13

SLOTTED PAN HEAD SCREW

02311-04128

1
Out of stock

13

SLOTTED PAN HEAD SCREW

02311-04121

1
Out of stock

14

SLOTTED PAN HEAD SCREW

02311-04258

—
Out of stock

14

SLOTTED PAN HEAD SCREW

02311-04251

—
Out of stock

15

SLOTTED PAN HEAD SCREW

02311-05108

1
Out of stock

15

SLOTTED PAN HEAD SCREW

02311-05101

—
Out of stock

16

1

$2.35

In stock

17

6

$2.00

In stock

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

19

1

$1.93

In stock

20

WASHER This part replaces 08322-11108.

08322-01107

1
Out of stock

21

FLAT WASHER

08222-21048

—
Out of stock
← Battery - Selemium Rectifier - Main Wiring Harness - Switches Flywheel Magneto - Ignition Coil →
