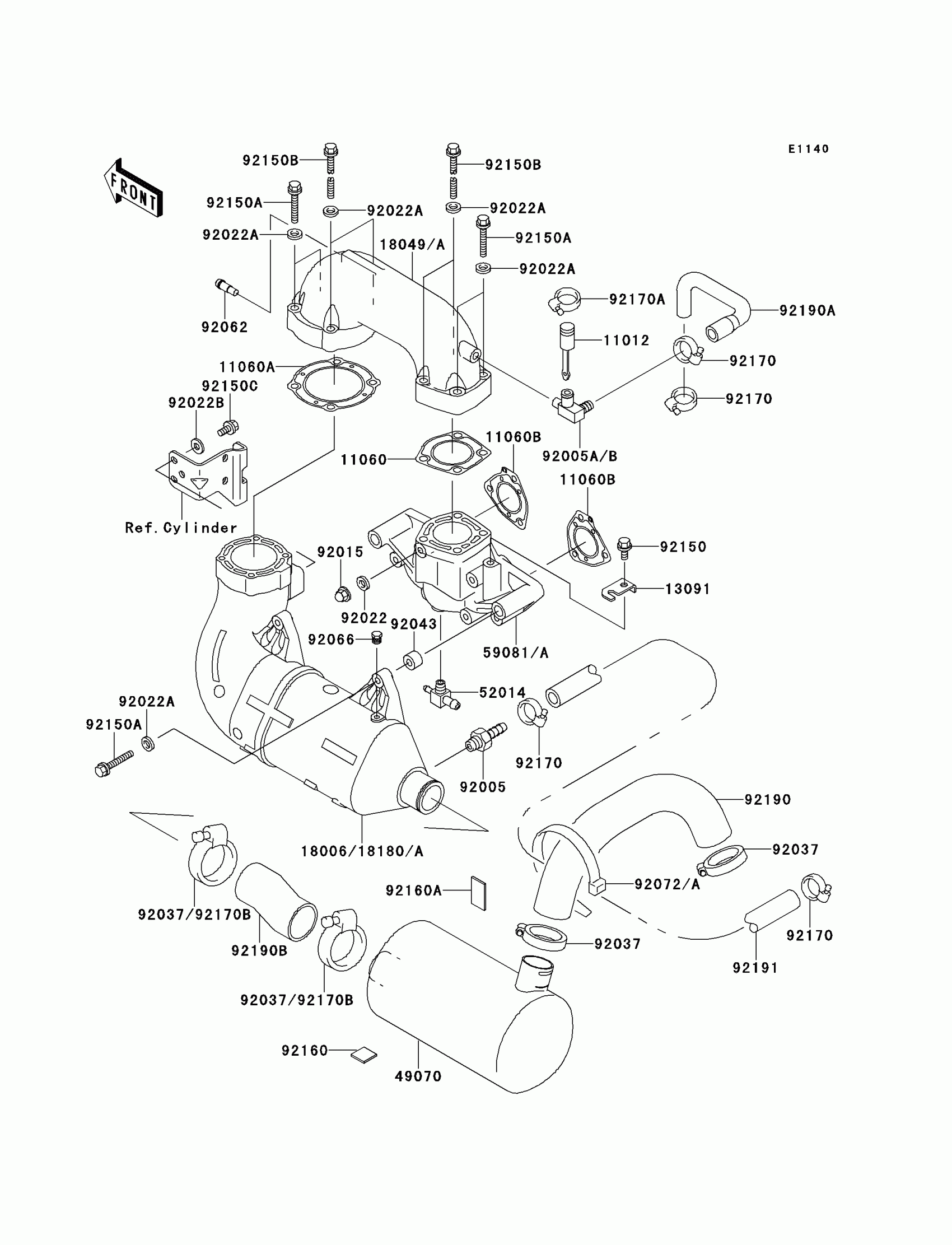

Kawasaki 750 ZXi Muffler(s) Diagram

#

Description
Price

11012

CAP

11012-3757

Unavailable

11060

GASKET

11060-3754

$37.48

11060A

GASKET

11060-3755

$30.24

11060B

GASKET,EXHAUST MANIFOLD

11060-3759

$13.46

13091

HOLDER

13091-3791

Unavailable

18049A

PIPE-EXHAUST

18049-3753

$243.86

18180A

BODY-MUFFLER

18180-3706

Unavailable

49070

MUFFLER-COMP

49070-3725

$384.53

52014

ELBOW

52014-3711

$26.63

59081A

MANIFOLD-EXHAUST

59081-3719

Unavailable

92005

FITTING,HOSE

92005-3712

$10.71

92005B

FITTING

92005-3723

Unavailable

92015

NUT,CAP,8MM

92015-1371

$3.81

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92022A

WASHER,10.2X20X1.5

92022-3742

$3.19

92022B

WASHER,8.2X18X1.5

92022-3743

$3.22

92037

CLAMP

92037-3738

$5.47

92043

PIN,11X14X12.3

92043-1266

$0.86

92062

NOZZLE

92062-3705

$6.73

92066

PLUG,CYLINDER HEAD

92066-3001

Unavailable

92072

BAND,L=292.1

92072-3509

Unavailable

92072A

BAND

92072-3799

$1.20

92150

BOLT,8X16

92150-3722

$7.49

92150A

BOLT,10X50

92150-3819

Unavailable

92150B

BOLT,10X125

92150-3825

$19.24

92150C

BOLT,8X16

92150-3846

$5.42

92160

DAMPER,25X25

92160-3864

$2.66

92160A

DAMPER,40X25

92160-3865

$4.61

92170

CLAMP

92170-3718

$10.33

92170A

CLAMP

92170-3729

Unavailable

92170B

CLAMP

92170-3754

$12.71

92190

TUBE,MUFFLER-TAILPIPE

92190-3938

Unavailable

92190A

TUBE,HEAD-EXHAUSTPIPE

92190-3939

Unavailable

92190B

TUBE,CHAMBER-MUFFLER

92190-3986

Unavailable

92191

TUBE,TAIL-CHAMBER

92191-3714

Unavailable
