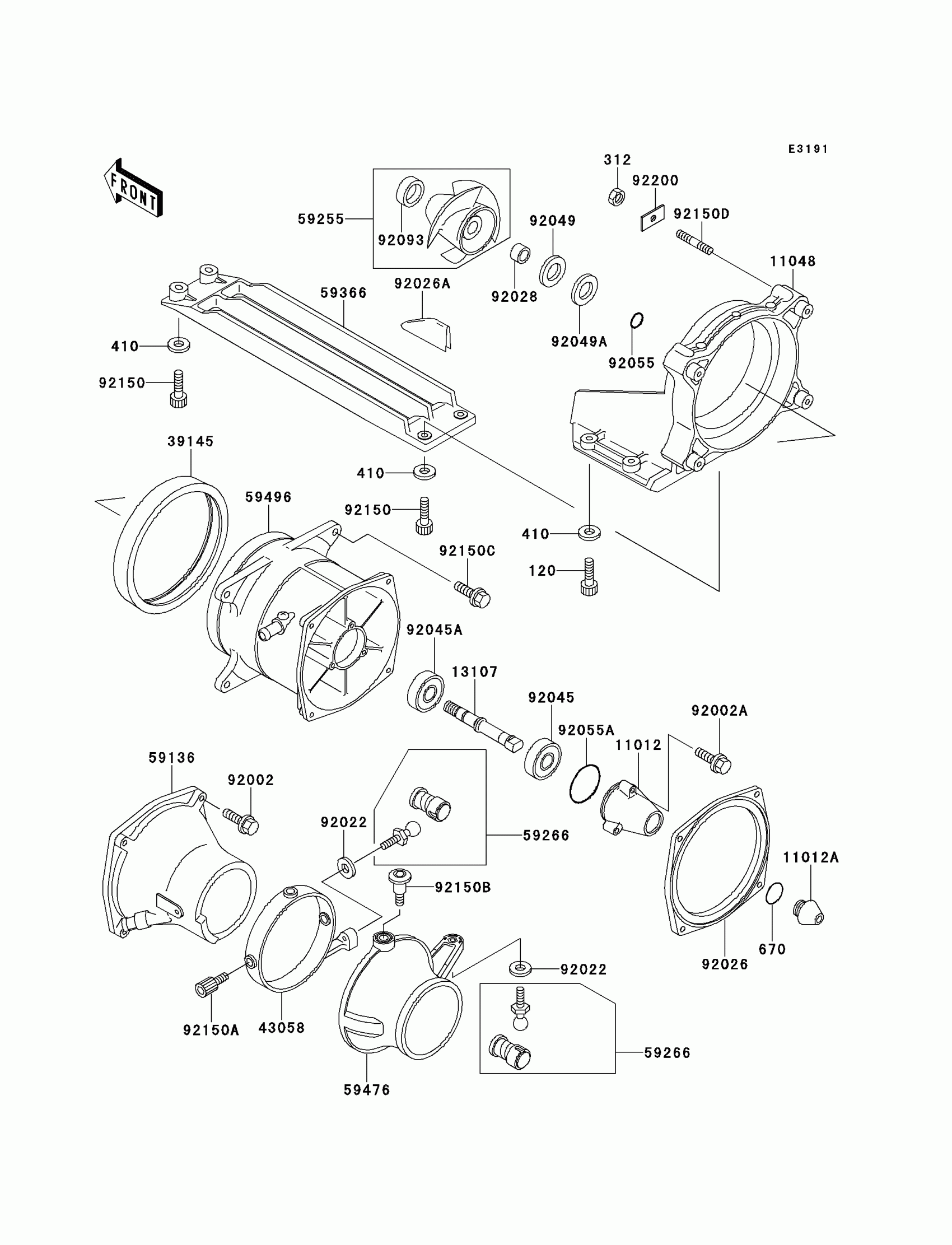

Kawasaki 750 ZXi Jet Pump Diagram

#

Description
Price

120

BOLT-SOCKET,6X20

120R0620

$2.74

312

NUT-HEX,6MM

312R0600

$1.29

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

670

O RING,20MM

670B2020

$0.97

11012

CAP

11012-3771

$51.36

11012A

CAP

11012-3772

Unavailable

11048

BRACKET

11048-3763

Unavailable

13107

SHAFT,JETPUMP

13107-3737

$83.04

39145

TRIM-SEAL

39145-3742

$40.42

43058

RING

43058-3709

$168.32

59136

NOZZLE-PUMP

59136-3738

$167.24

59255

IMPELLER-COMP

59255-3703

$477.62

59266

JOINT-BALL

59266-3707

$59.33

59366

GRATE

59366-3712

$105.63

59476

NOZZLE-STRG,GRAY

59476-3724-RA

$101.33

59496

VANE-GUIDE

59496-3713

$1,130.73

92002

BOLT,6X40

92002-3716

$3.79

92002A

BOLT,6X30

92002-3726

$3.57

92022

WASHER

92022-567

$1.89

92026

SPACER

92026-3730

$50.31

92026A

SPACER

92026-3731

$12.78

92028

BUSHING

92028-3750

$36.81

92045

BEARING-BALL,62022RD

92045-3721

$18.00

92045A

BEARING-BALL,6303-132RD

92045-3722

Unavailable

92049

SEAL-OIL

92049-3717

$29.85

92049A

SEAL-OIL

92049-3718

$33.00

92055

RING-O,13X1.9

92055-1021

$5.81

92055A

RING-O

92055-3741

$2.30

92093

SEAL,JET PUMP

92093-3739

$14.68

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92150A

BOLT

92150-3808

Unavailable

92150B

BOLT

92150-3827

Unavailable

92150C

BOLT,8X30

92150-3828

$5.75

92150D

BOLT

92150-3829

$5.22

92200

WASHER

92200-3740

$4.12
