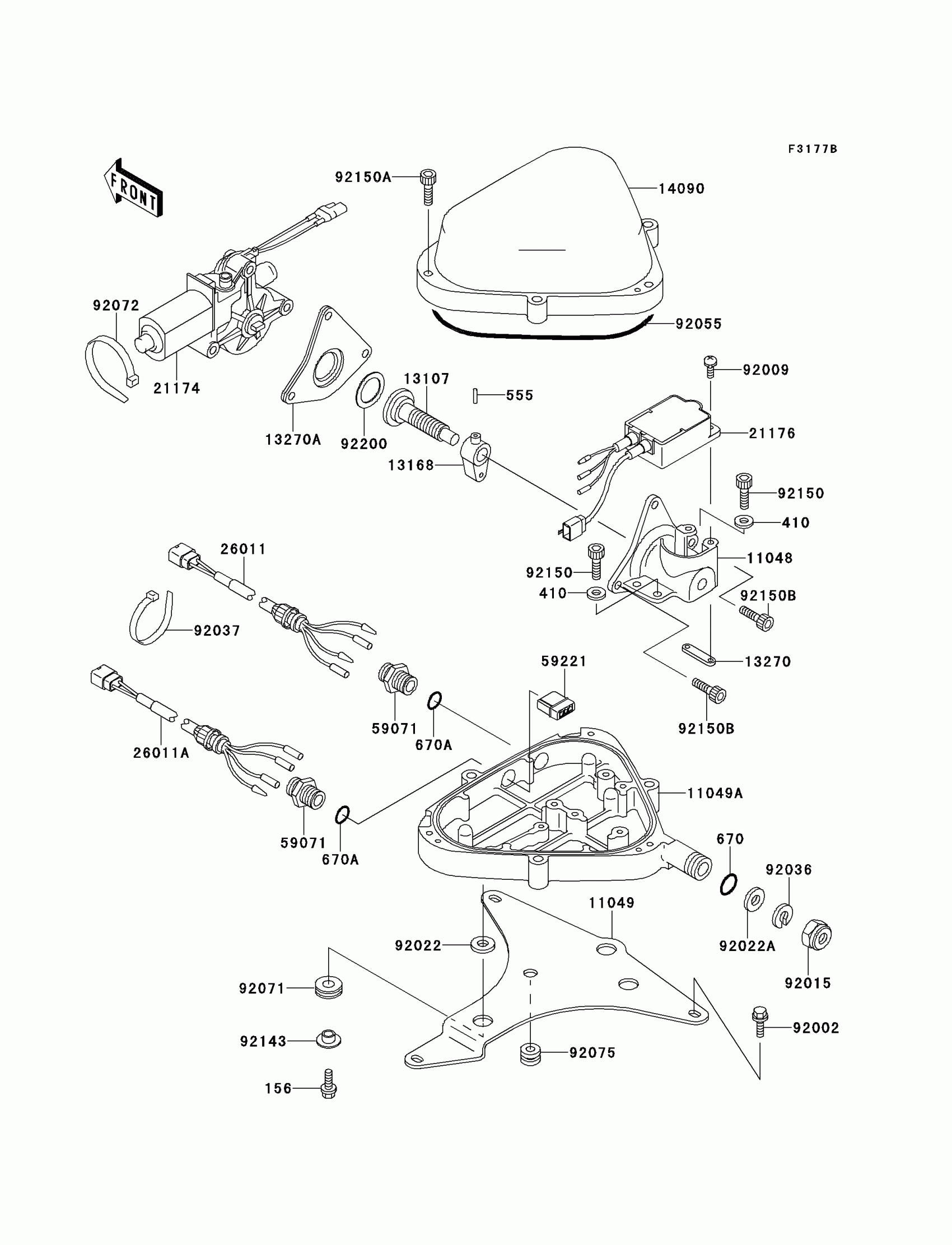

Kawasaki 750 ZXi Control(JH750-C3) Diagram

#

Description
Price

156

BOLT-WP,6X22

156R0622

$3.66

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

555

PIN-SPRING,3X14

555B0314

$4.15

670

O RING,11MM

670B2011

$0.98

670A

O RING,16MM

670B2016

$1.04

11048

BRACKET,MOTOR MOUNT

11048-3738

$80.69

11049

BRACKET,TILT BOX

11049-3712

Unavailable

11049A

BRACKET,MOTOR BOX,LWR

11049-3715

Unavailable

13107

SHAFT

13107-3748

$53.61

13168

LEVER,SLIDE

13168-3730

Unavailable

13270

PLATE,TRIM SENSOR

13270-3744

$7.24

13270A

PLATE,MOTOR MOUNT

13270-3822

$34.48

14090

COVER,MOTOR BOX,UPP

14090-3768

$175.66

21174

MOTOR-ELECTRIC

21174-3703

$621.65

21176

SENSOR,TRIM METER

21176-3721

Unavailable

26011

WIRE-LEAD,TRIM SWITCH

26011-3835

$47.30

26011A

WIRE-LEAD,TRIM METER

26011-3840

$52.63

59071

JOINT

59071-3001

$4.72

59221

CONNECTOR-CORD

59221-3709

$2.02

92002

BOLT,6X16

92002-3728

$3.24

92009

SCREW,4X12

92009-3807

$4.41

92015

NUT,20MM

92015-526

$30.30

92022

WASHER,6.2X20X2

92022-3714

$3.19

92022A

WASHER

92022-535

$7.25

92036

RING-SNAP

92036-501

Unavailable

92037

CLAMP

92037-1173

$2.58

92055

RING-O,ID=171

92055-3737

Unavailable

92071

GROMMET

92071-3737

$4.85

92072

BAND,L=201

92072-3778

$1.61

92075

DAMPER

92075-1435

$4.84

92143

COLLAR

92143-3749

$4.61

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92150A

BOLT,SOCKET,6X30

92150-3822

$3.29

92150B

BOLT,SOCKET,6X25

92150-3823

Unavailable

92200

WASHER,22.5X32X1

92200-3742

$7.32
