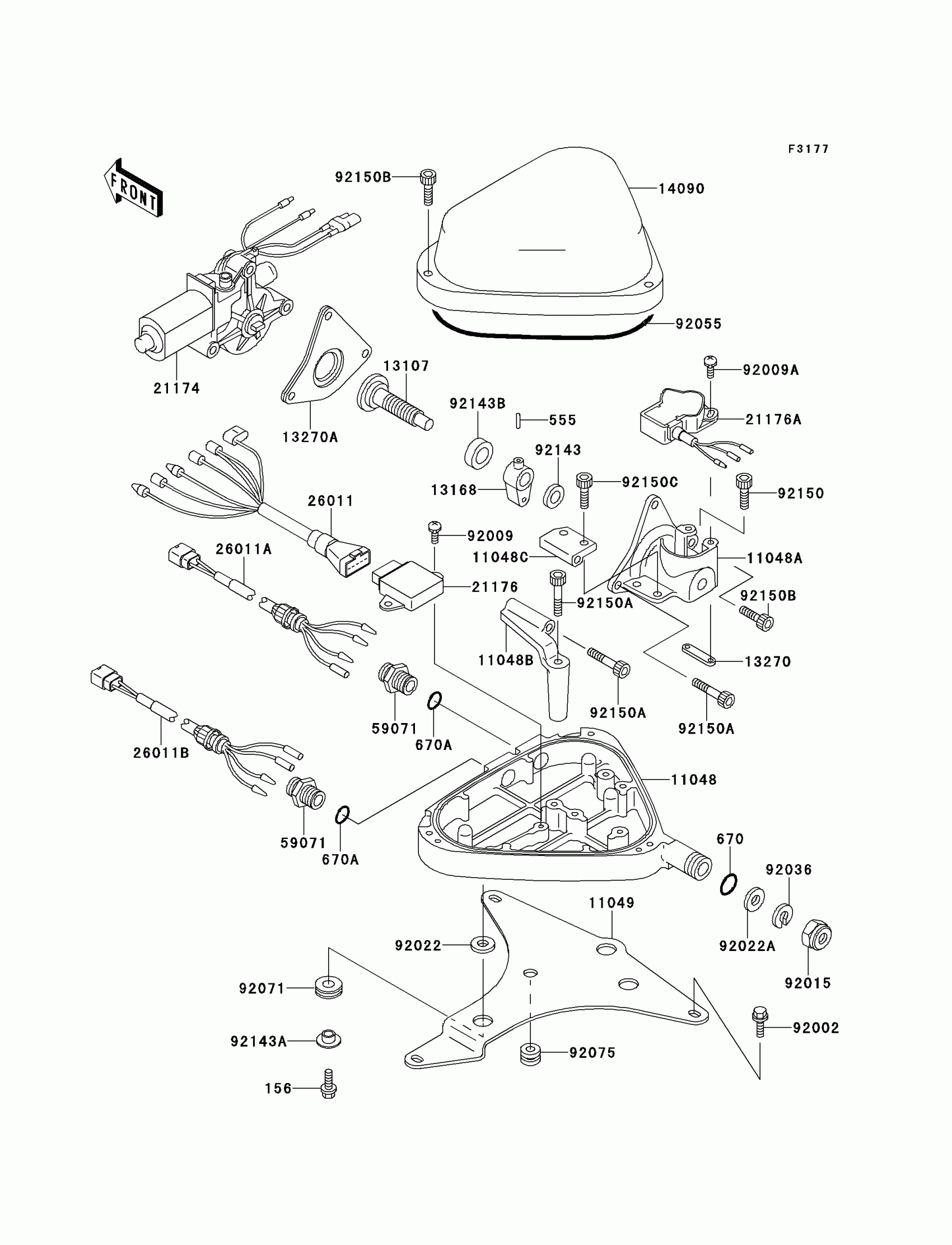

Kawasaki 750 ZXi Control(JH750-C1) Diagram

#

Description
Price

156

BOLT-WP,6X22

156R0622

$3.66

555

PIN-SPRING,3X14

555B0314

$4.15

670

O RING,11MM

670B2011

$0.98

670A

O RING,16MM

670B2016

$1.04

11048

BRACKET,MOTOR BOX,LWR

11048-3737

Unavailable

11048A

BRACKET,MOTOR MOUNT

11048-3738

$80.69

11048B

BRACKET

11048-3753

Unavailable

11048C

BRACKET

11048-3754

Unavailable

11049

BRACKET,TILT BOX

11049-3712

Unavailable

13107

SHAFT

13107-3735

Unavailable

13168

LEVER,SLIDE

13168-3724

Unavailable

13270

PLATE,TRIM SENSOR

13270-3744

$7.24

13270A

PLATE,MOTOR MOUNT

13270-3750

Unavailable

14090

COVER,MOTOR BOX,UPP

14090-3739

$154.30

21174

MOTOR-ELECTRIC

21174-3702

$700.23

21176

SENSOR,MOTOR CONTROL

21176-3701

$308.71

21176A

SENSOR,TRIM METER

21176-3705

Unavailable

26011

WIRE-LEAD,MOTOR CONTROL

26011-3809

Unavailable

26011A

WIRE-LEAD,TRIM SWITCH

26011-3823

Unavailable

26011B

WIRE-LEAD,TRIM METER

26011-3824

$88.88

59071

JOINT

59071-3001

$4.72

92002

BOLT,6X16

92002-3728

$3.24

92009

SCREW,5X12

92009-3740

$3.75

92009A

SCREW,4X12

92009-3807

$4.41

92015

NUT,20MM

92015-526

$30.30

92022

WASHER,6.2X20X2

92022-3714

$3.19

92022A

WASHER

92022-535

$7.25

92036

RING-SNAP

92036-501

Unavailable

92055

RING-O,ID=171

92055-3737

Unavailable

92071

GROMMET

92071-3737

$4.85

92075

DAMPER

92075-1435

$4.84

92143

COLLAR

92143-3744

Unavailable

92143A

COLLAR

92143-3749

$4.61

92143B

COLLAR,14.3X24.5X8

92143-3751

Unavailable

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92150A

BOLT,SOCKET,6X65

92150-3821

$3.78

92150B

BOLT,SOCKET,6X30

92150-3822

$3.29

92150C

BOLT,SOCKET,6X25

92150-3823

Unavailable
