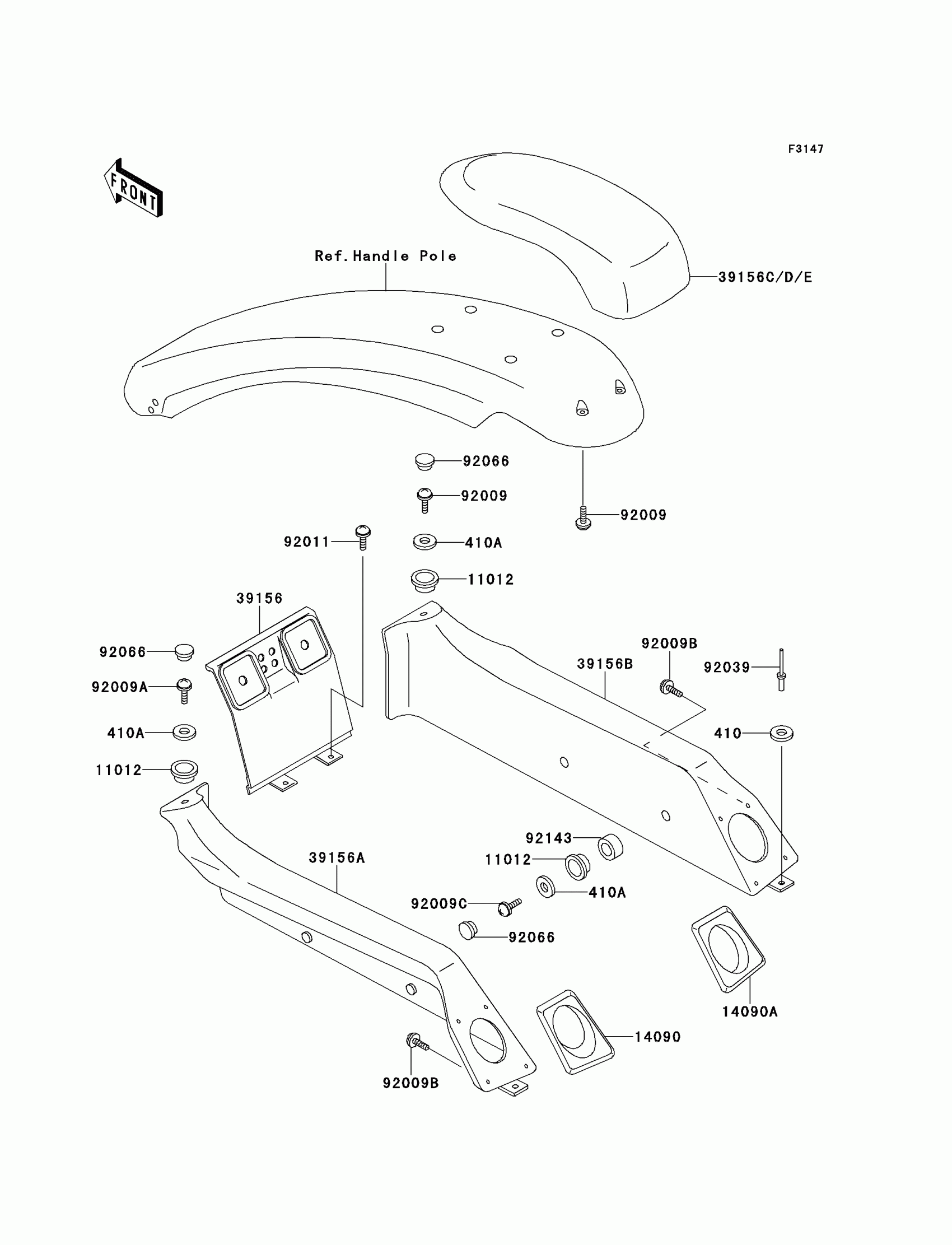

Kawasaki 750 SXi (Canada Only) Pads Diagram

Description

Price

410

W-PLAIN-S,5MM

410S0500

$1.20

410A

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

11012

CAP,VIOLET

11012-3760-RE

$4.55

14090

COVER,DECK PAD,LH,VIOLET

14090-3716-RE

Unavailable

14090A

COVER,DECK PAD,RH,VIOLET

14090-3717-RE

Unavailable

39156

PAD,DECK,CNT,VIOLET

39156-3752-PJ

$256.25

39156A

PAD,DECK,LH,J.S.VIOLET

39156-3761-PJ

$394.91

39156B

PAD,DECK,RH,J.S.VIOLET

39156-3762-PJ

Unavailable

39156D

PAD,HANDLE POLE,UPP,BLACK

39156-3787-MA

$345.07

92009

SCREW,TAPPING,5X20

92009-3716

$2.76

92009A

SCREW,TAPPING,5X30

92009-3794

$3.88

92009B

SCREW,TAPPING,3X10

92009-3802

$3.81

92009C

SCREW,TAPPING,5X25

92009-3803

Unavailable

92011

SCREW,TAPPING

92011-561

Unavailable

92039

RIVET

92039-3747

$1.11

92066

PLUG,VIOLET

92066-3738-RE

$7.75

92143

COLLAR,6X10X5

92143-3737

$2.30
