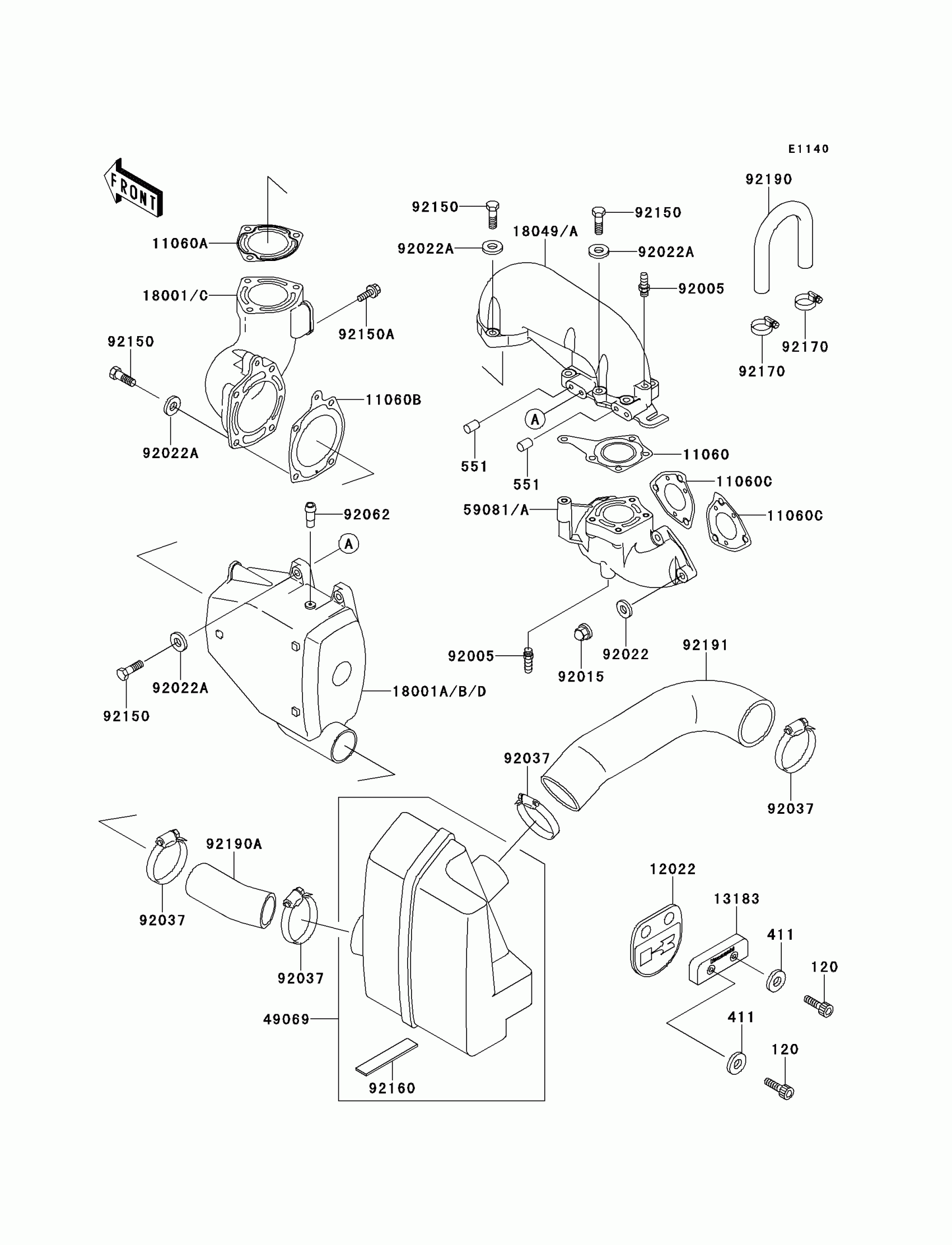

Kawasaki 750 SXi (Canada Only) Muffler(s) Diagram

#

Description
Price

120

BOLT-SOCKET,6X20

120R0620

$2.74

411

WASHER-PLAIN,6MM

411S0600

$1.49

551

PIN-DOWEL

551R0812

$6.04

11060

GASKET,EXHAUST

11060-3712

$32.15

11060A

GASKET,MUFFLER,FR

11060-3713

$30.57

11060B

GASKET,MUFFLER CHAMBER

11060-3714

$34.90

11060C

GASKET,EXHAUST MANIFOLD

11060-3759

$13.46

12022

VALVE-REED

12022-3706

$32.36

13183

PLATE

13183-3817

Unavailable

18001C

MUFFLER,FR

18001-3764

Unavailable

18001D

MUFFLER

18001-3768

Unavailable

18049A

PIPE-EXHAUST

18049-3762

Unavailable

49069

MUFFLER-ASSY,WATER

49069-3705

Unavailable

59081A

MANIFOLD-EXHAUST

59081-3723

Unavailable

92005

FITTING,HOSE

92005-3712

$10.71

92015

NUT,CAP,8MM

92015-1371

$3.81

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92022A

WASHER,8.2X18X1.5

92022-3743

$3.22

92037

CLAMP

92037-3009

$3.25

92062

NOZZLE

92062-3705

$6.73

92150

BOLT,8X35

92150-3833

$7.52

92150A

BOLT,8X16

92150-3846

$5.42

92160

DAMPER

92160-3793

$7.15

92170

CLAMP

92170-3718

$10.33

92190

TUBE,HEAD-EXHAUST PIPE

92190-3829

$18.14

92190A

TUBE

92190-3978

Unavailable

92191

TUBE,WATER MUFFLER-BULKHEAD

92191-3721

$52.80
