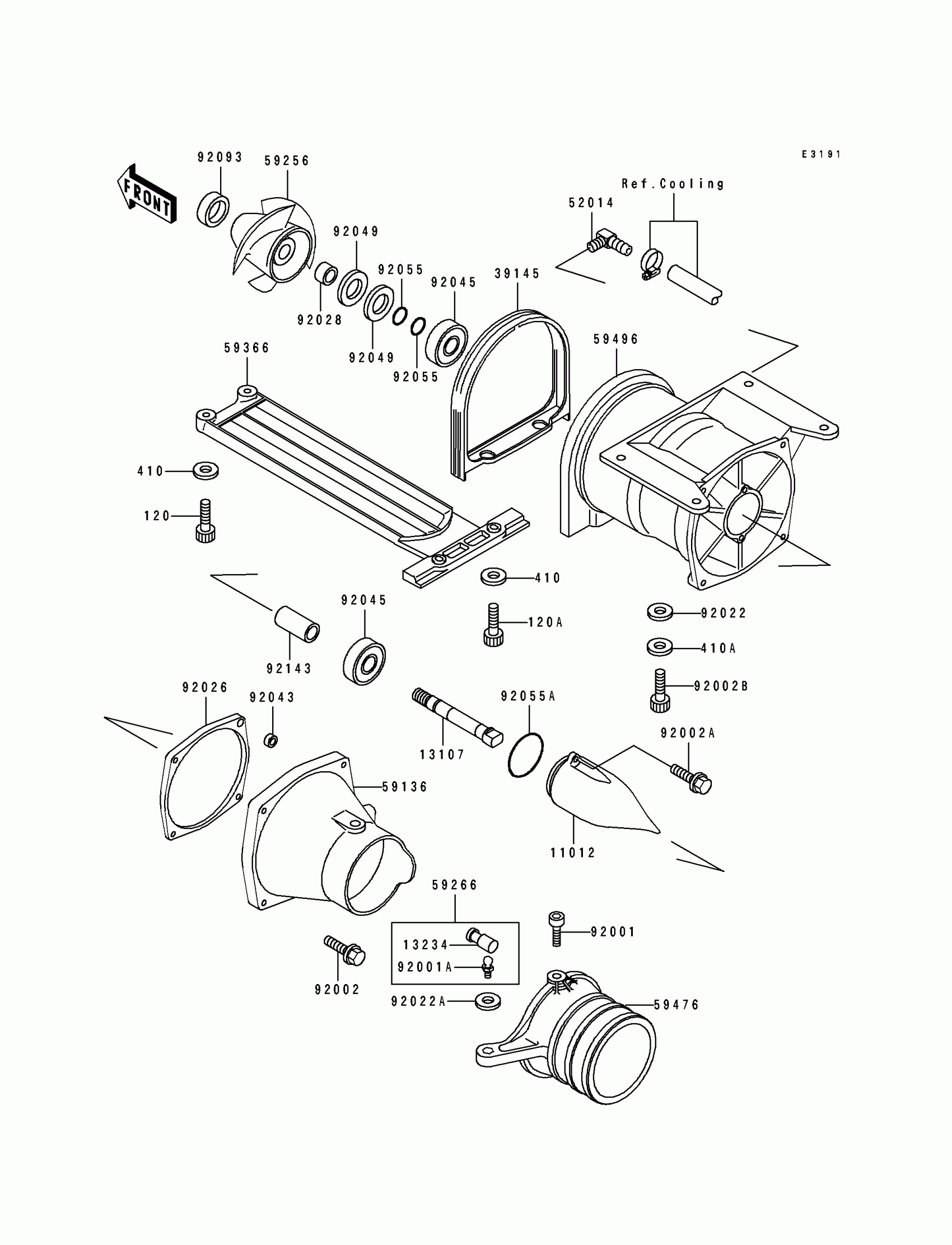

Kawasaki 750 SX Jet Pump Diagram

#

Description
Price

11012

CAP,JET PUMP

11012-3712

$62.69

13107

SHAFT,JET PUMP

13107-3721

$84.95

13234

SHAFT-COMP,JOINT

13234-3708

Unavailable

39145

TRIM-SEAL

39145-3735

$53.20

52014

ELBOW

52014-3708

$37.06

59136

NOZZLE-PUMP

59136-3716

$138.29

59256

IMPELLER

59256-3715

Unavailable

59266

JOINT-BALL

59266-3707

$59.33

59366

GRATE

59366-3707

Unavailable

59476

NOZZLE-STRG

59476-3713

$95.17

59496

VANE-GUIDE

59496-3703

$1,180.89

92001

BOLT,SOCKET,6X11

92001-3701

$14.49

92001A

BOLT,BALL,6MM

92001-3703

Unavailable

92002

BOLT,6X40

92002-3716

$3.79

92002A

BOLT,6X16

92002-3728

$3.24

92002B

BOLT,SOCKET,8X20

92002-3771

$6.32

92022

WASHER,8.4X23X2.5

92022-3744

$3.19

92022A

WASHER

92022-567

$1.89

92026

SPACER,JET PUMP

92026-3708

$58.27

92028

BUSHING,17X25X15

92028-3717

$36.09

92043

PIN

92043-3715

$5.61

92045

BEARING-BALL,#63032RD

92045-3706

$35.60

92049

SEAL-OIL,TCV-25476

92049-3711

Unavailable

92055

RING-O,13X1.9

92055-1021

$5.81

92055A

RING-O

92055-3706

$3.55

92093

SEAL,JET PUMP

92093-3739

$14.68

92143

COLLAR,17.4X25.4X53

92143-3708

$23.59

120

BOLT-SOCKET,6X16

120R0616

$2.76

120A

BOLT-SOCKET,6X20

120R0620

$2.74

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

410A

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62
