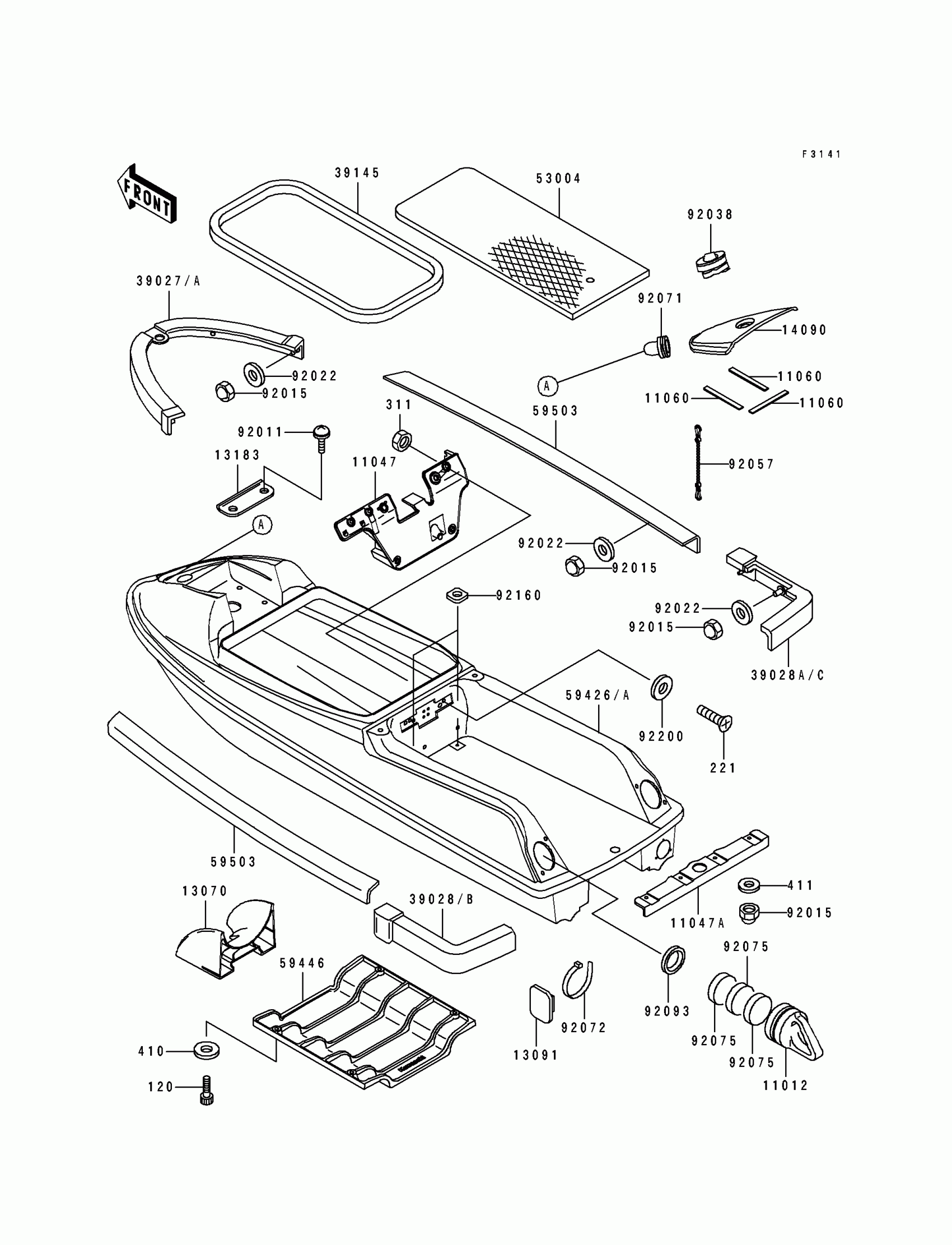

Kawasaki 750 SX Hull Diagram

#

Description
Price

11012

CAP,VIOLET

11012-3752-RE

Unavailable

11047

BRACKET,CONTROL KNOB

11047-3745

$302.26

11047A

BRACKET

11047-3754

Unavailable

11060

GASKET

11060-3722

$4.32

13070

GUIDE,INTAKE

13070-3708

Unavailable

13091

HOLDER,BAND

13091-3764

$4.58

13183

PLATE

13183-3787

$9.73

14090

COVER,TANK CAP,J.WHITE

14090-3707-8C

Unavailable

39027A

BUMPER-FRONT,VIOLET

39027-3726-RE

Unavailable

39028B

BUMPER-REAR,LH,VIOLET

39028-3726-RE

Unavailable

39028C

BUMPER-REAR,RH,VIOLET

39028-3727-RE

Unavailable

39145

TRIM-SEAL

39145-3731

Unavailable

53004

MAT

53004-3740

Unavailable

59426A

HULL-COMP,J.WHITE

59426-3800-8C

$1,604.92

59446

COVER-JET PUMP

59446-3715

Unavailable

59503

FENDER-BOAT,VIOLET

59503-3703-RE

Unavailable

92011

SCREW,TAPPING

92011-561

Unavailable

92015

NUT,CAP,5MM

92015-3802

$4.42

92022

WASHER

92022-567

$1.89

92038

KEY,TANK CAP

92038-3707

$121.35

92057

CHAIN,COVER,L=100

92057-3704

$14.56

92071

GROMMET

92071-3780

Unavailable

92072

BAND,L=148

92072-3768

$2.99

92075

DAMPER

92075-3719

$7.48

92093

SEAL,OSR70X82X7.5

92093-3704

Unavailable

92160

DAMPER

92160-3797

$5.51

92200

WASHER

92200-3720

$2.10

120

BOLT-SOCKET,6X20

120R0620

$2.74

221

SCREW-CSK-CROS,6X20

221R0620

Unavailable

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

411

WASHER-PLAIN,5MM

411S0500

$0.78
