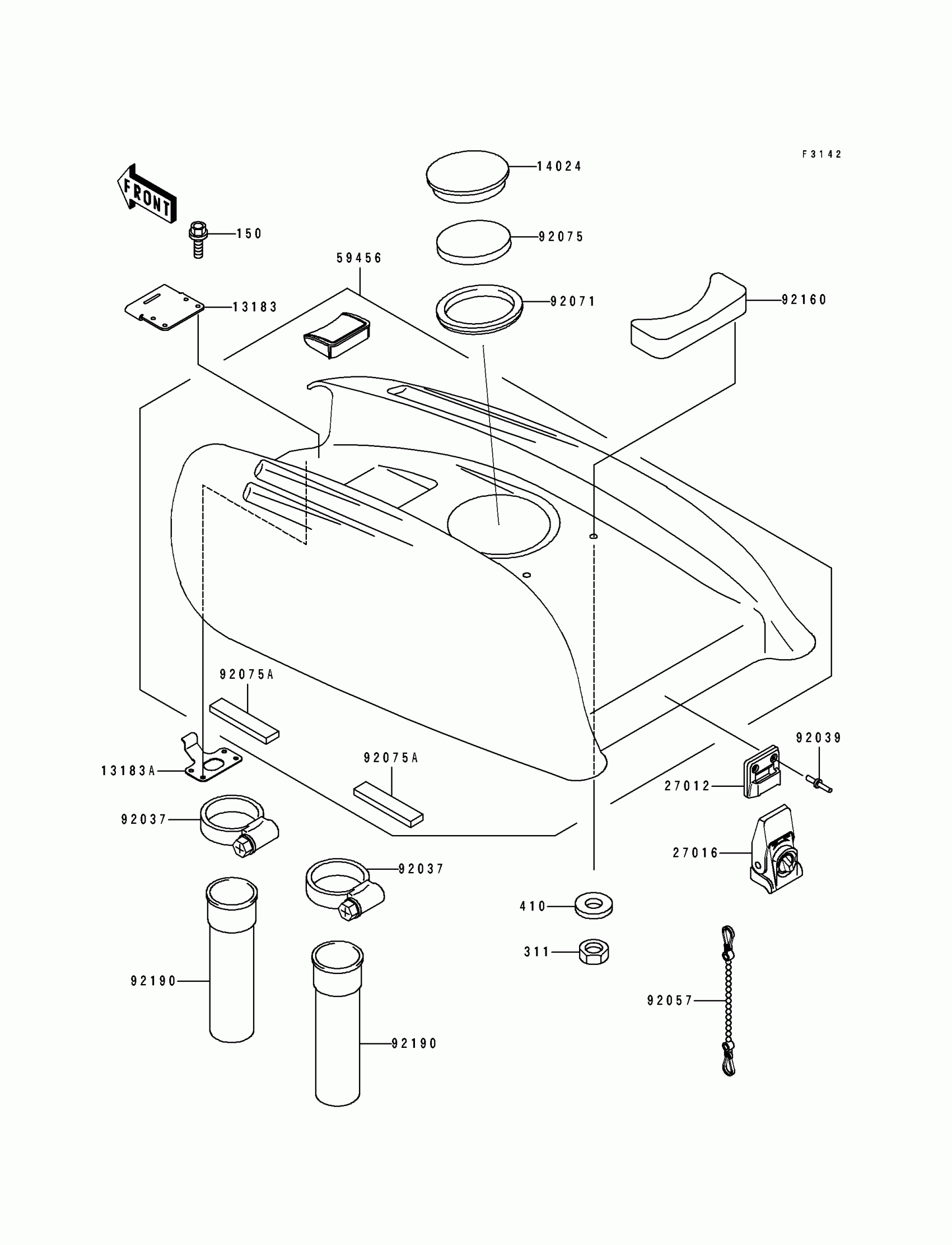

Kawasaki 750 SX Engine Hood Diagram

Description

Price

13183

PLATE,ENGINE HOOD

13183-3788

$49.58

13183A

PLATE,ENGINE HOOD

13183-3789

$38.24

14024

COVER

14024-3748

$5.92

27012

HOOK,ENGINE HOOD LOCK

27012-3762

$41.29

27016

LOCK-ASSY,ENGINE HOOD

27016-3723

Unavailable

59456

HOOD-COMP-ENGINE,J.WHITE

59456-3723-8C

$526.50

92037

CLAMP

92037-3738

$5.47

92039

RIVET

92039-3750

$5.95

92057

CHAIN,COVER,L=100

92057-3704

$14.56

92071

GROMMET

92071-3742

$7.56

92075

DAMPER

92075-3737

$24.34

92075A

DAMPER

92075-3757

Unavailable

92160

DAMPER

92160-3772

$86.08

92190

TUBE

92190-3824

Unavailable

150

BOLT-WS,5X25

150R0525

Unavailable

311

NUT-HEX,5MM

311R0500

$1.24

410

W-PLAIN-S,5MM

410S0500

$1.20
