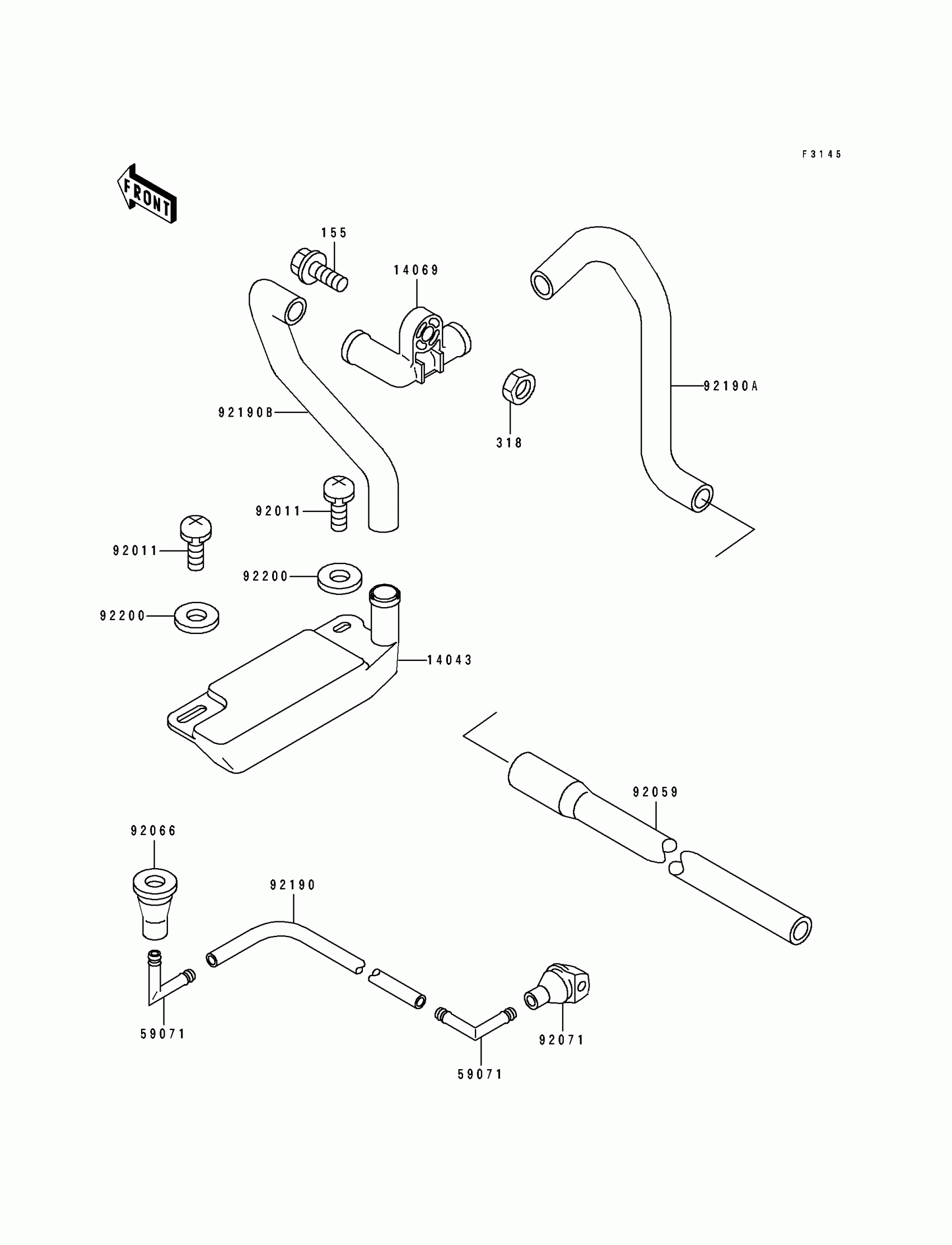

Kawasaki 750 SX Bilge System Diagram

Description

Price

14043

FILTER

14043-3708

$15.37

14069

BREATHER,BILGE

14069-3705

Unavailable

59071

JOINT

59071-3706

$9.41

92011

SCREW,TAPPING

92011-561

Unavailable

92059

TUBE,L=200

92059-3894

Unavailable

92066

PLUG

92066-3706

$4.71

92071

GROMMET

92071-3736

Unavailable

92190

TUBE,5.8X10.8X330

92190-3816

$10.25

92190A

TUBE

92190-3822

Unavailable

92190B

TUBE

92190-3823

Unavailable

92200

WASHER,5.9X16X1.5

92200-3714

$1.55

155

BOLT-WSP-SMALL,8X25

155R0825

$5.07

318

NUT-HEX-SMALL

318R0800

$3.19
