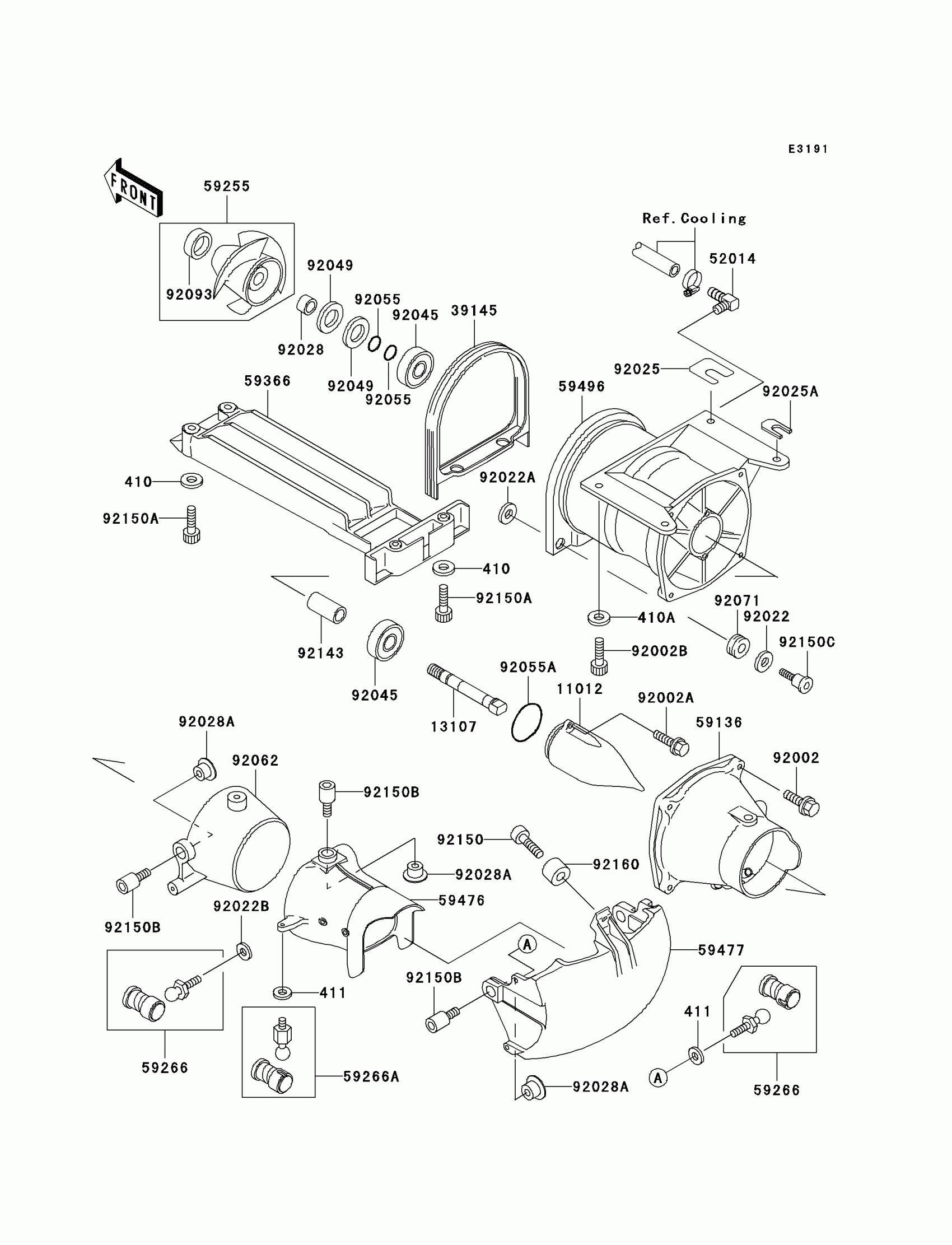

Kawasaki 750 STX Jet Pump Diagram

#

Description
Price

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68

410A

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62

411

WASHER-PLAIN,6MM

411S0600

$1.49

11012

CAP,JET PUMP

11012-3712

$62.69

13107

SHAFT,JET PUMP

13107-3721

$84.95

39145

TRIM-SEAL

39145-3732

$67.95

52014

ELBOW

52014-3708

$37.06

59136

NOZZLE-PUMP

59136-3722

$138.29

59255

IMPELLER-COMP

59255-3710

$602.39

59266

JOINT-BALL

59266-3707

$59.33

59266A

JOINT-BALL

59266-3709

Unavailable

59366

GRATE

59366-3710

$216.89

59476

NOZZLE-STRG

59476-3731

$172.71

59477

BUCKET-REVERSE

59477-3708

Unavailable

59496

VANE-GUIDE

59496-3727

Unavailable

92002

BOLT,6X30

92002-3726

$3.57

92002A

BOLT,6X16

92002-3728

$3.24

92002B

BOLT,SOCKET,8X20

92002-3771

$6.32

92022

WASHER,6.2X20X2

92022-3714

$3.19

92022A

WASHER,10.2X20X1.5

92022-3742

$3.19

92022B

WASHER

92022-567

$1.89

92025

SHIM,T=0.5MM

92025-3702

Unavailable

92025A

SHIM,T=1.5MM

92025-3708

$5.20

92028

BUSHING,17X25X15

92028-3717

$36.09

92028A

BUSHING

92028-3740

$6.21

92045

BEARING-BALL,#63032RD

92045-3706

$35.60

92049

SEAL-OIL,TBY25X47X6

92049-3714

$36.18

92055

RING-O,13X1.9

92055-1021

$5.81

92055A

RING-O

92055-3706

$3.55

92062

NOZZLE

92062-3719

$124.32

92071

GROMMET

92071-3716

$4.39

92093

SEAL,JET PUMP

92093-3739

$14.68

92143

COLLAR,17.4X25.4X53

92143-3708

$23.59

92150

BOLT,SOCKET,6X10

92150-3759

$4.15

92150A

BOLT,SOCKET,6X18

92150-3775

$3.57

92150B

BOLT

92150-3808

Unavailable

92150C

BOLT

92150-3850

Unavailable

92160

DAMPER

92160-3738

$13.64
