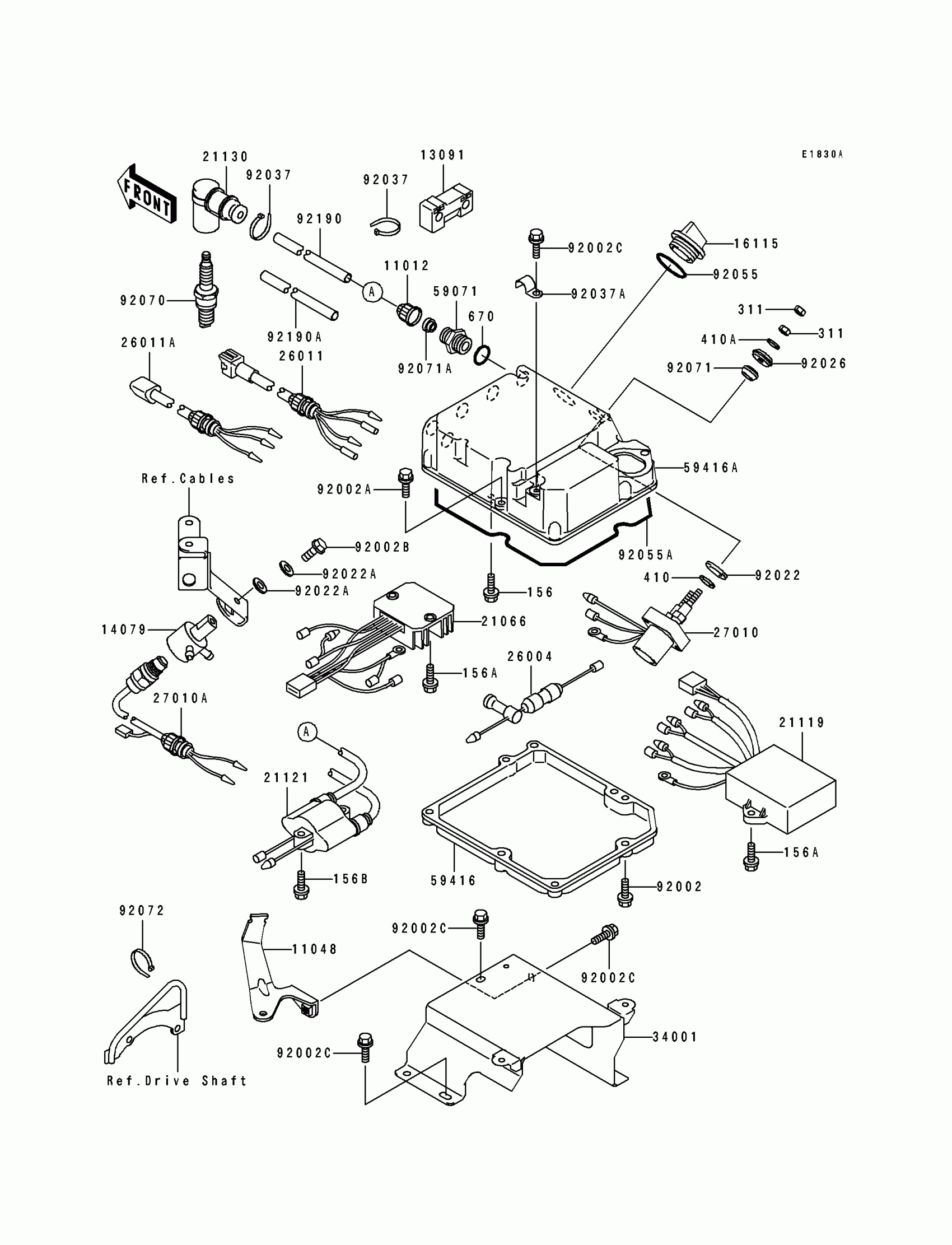

Kawasaki 750 SS Ignition System(JH750-A4) Diagram

#

Description
Price

11012

CAP

11012-3005

$4.18

11048

BRACKET,HIGH TENSION CORD

11048-3736

Unavailable

13091

HOLDER,HIGH TENSION CORD

13091-3771

Unavailable

14079

HOLDER-ASSY

14079-3710

$112.79

16115

CAP-OIL FILLER

16115-1009

$10.86

21066

REGULATOR-VOLTAGE

21066-3711

$227.54

21119

IGNITER

21119-3734

$707.86

21121

COIL-IGNITION

21121-3704

$142.35

21130

CAP-SPARK PLUG

21130-3706

$46.17

26004

FUSE-ASSY

26004-3712

$58.36

26011

WIRE-LEAD

26011-3799

$95.20

26011A

WIRE-LEAD

26011-3800

$78.34

27010

SWITCH,STARTER RELAY

27010-3724

$115.71

27010A

SWITCH

27010-3733

$155.44

34001

STAND,ELECTRIC CASE

34001-3705

Unavailable

59071

JOINT

59071-3001

$4.72

59416

CASE-ELECTRIC,LWR

59416-3728

Unavailable

59416A

CASE-ELECTRIC,UPP

59416-3739

$308.63

92002

BOLT,6X25

92002-3714

$3.81

92002A

BOLT,6X35

92002-3715

$5.75

92002B

BOLT,6X20

92002-3755

$3.57

92002C

BOLT,6X12

92002-3763

$3.57

92022

WASHER

92022-3035

$2.69

92022A

WASHER,6.2X20X2

92022-3714

$3.19

92026

SPACER

92026-3703

$3.57

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP

92037-3730

$5.54

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O,ELECTRIC CASE

92055-3733

Unavailable

92070

PLUG-SPARK,BR8ES(NGK),SOLID

92070-2078

$2.80

92071

GROMMET

92071-3004

$3.05

92071A

GROMMET

92071-527

$5.13

92072

BAND,L=201

92072-3778

$1.61

92190

TUBE,HIGH TENSION,L=330

92190-3707

$12.02

92190A

TUBE,HIGH TENSION,L=210

92190-3708

$12.02

156

BOLT-WP,6X14

156R0614

$3.51

156A

BOLT-WP,6X22

156R0622

$3.66

156B

BOLT-WP

156R0630

Unavailable

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER PLAIN 10MM

410B1000

Unavailable

410A

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

670

O RING,16MM

670B2016

$1.04
