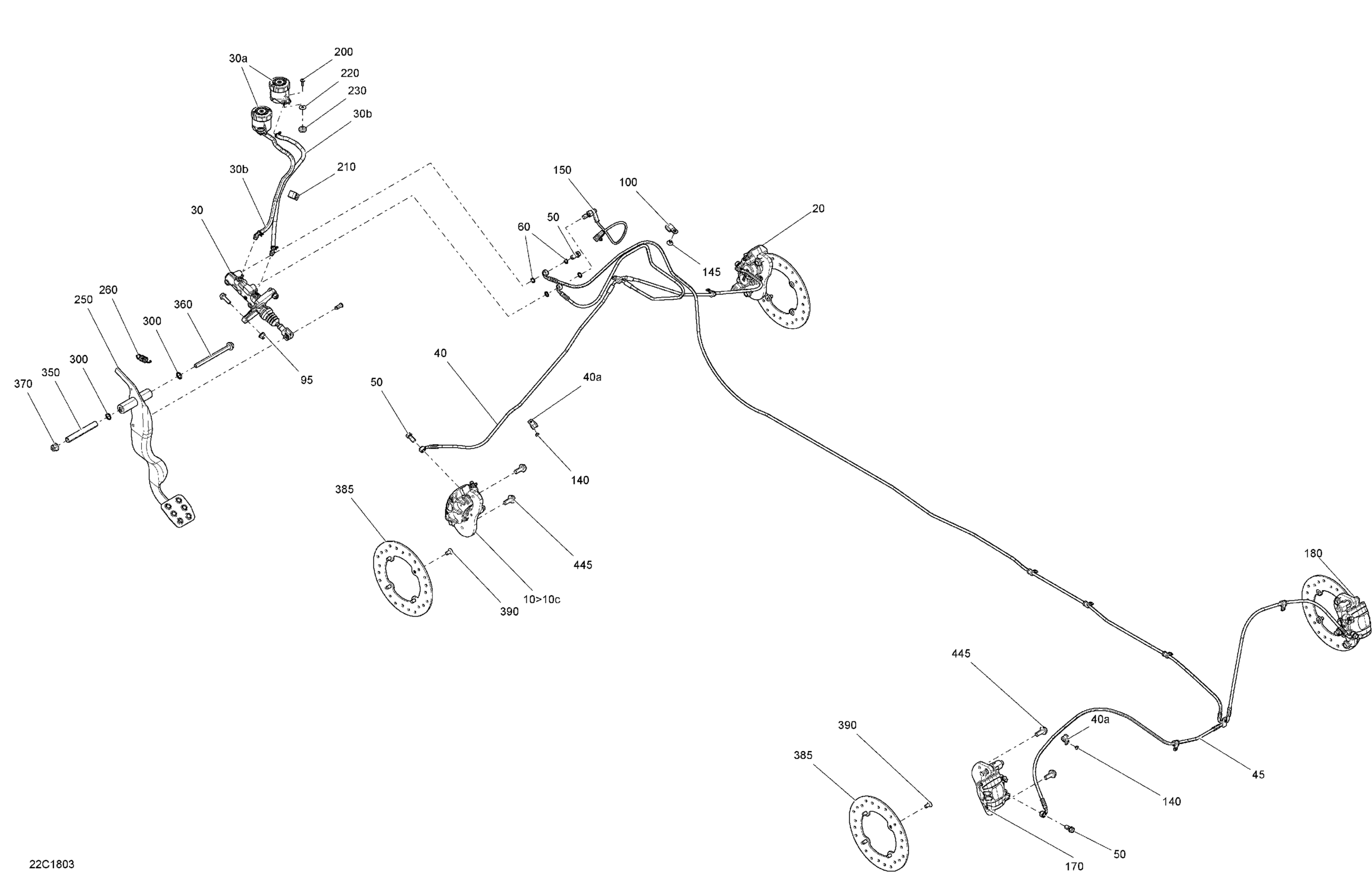

Can-Am Traxter T HD10, 2018 Brakes Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$230.74

10a

LH Brake Pads

715900379

$111.51

10a1

Pin Kit | Packages STD & PRO

715900384

$10.98

10b

Bleeding Screw

705601017

$6.45

10c

Cap Spring Kit

715900385

$17.66

20

RH Front Brake Caliper | RH Front

705601888

$230.74

20a

RH Brake Pads

715900380

$110.67

20a1

Pin Kit | Packages STD & PRO

715900384

$10.98

20b

Bleeding Screw

705601017

$6.45

20c

Cap Spring Kit

715900385

$17.66

30

Master Cylinder

705601863

Unavailable

30a

Oil Tank

705601020

$36.89

30b

Oil Housing Hose

705601019

$15.35

40

Brake Hose

705601623

$143.05

40

Brake Hose

705601623

$143.05

40

Brake Hose | Package CAB

705601671

$143.05

40a

Clamp

293650256

$4.36

45

Brake Hose | Includes 45 to 45a

705601499

$156.89

45

Brake Hose | Includes 45 to 45a

705601540

$193.82

45

Brake Hose

705601595

$156.89

45

Brake Hose

705601595

$156.89

45

Brake Hose

705601595

$156.89

45

Brake Hose

705601595

$156.89

45

Brake Hose

705601595

$156.89

45

Brake Hose

705601595

$156.89

45

Brake Hose

705601595

$156.89

45

Brake Hose

705601595

$156.89

45

Brake Hose | Package CAB

705601625

$156.89

45a

Clamp

293650256

$4.36

45a

Clamp

293650256

$4.36

45a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

60

Copper Washer

705601628

$4.34

95

Hex. Flange Elastic Nut M8

233281414

$1.14

100

Clamp

293650220

$0.85

140

Pop Rivet 3/16"

390402200

$0.26

145

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

150

Brake Switch

705601250

$59.97

155

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.82

170

LH Rear Brake Caliper | LH Rear

705601928

$203.05

170a

LH Brake Pads

715900381

$111.51

170a1

Pin Kit | Packages STD & PRO

715900384

$10.98

170b

Bleeding Screw

705601017

$6.45

170d

Cap Spring Kit

715900385

$17.66

170

LH Rear Brake Caliper | Includes 170 to 170d

705601889

$210.74

170a

LH Brake Pads

715900386

$110.67

170a1

Pin Kit | Packages STD & PRO

715900384

$10.98

170b

Bleeding Screw

705601017

$6.45

170c

Pin Kit | Packages STD & PRO

715900384

$10.98

170d

Cap Spring Kit

715900385

$17.66

180

RH Rear Brake Caliper | RH Rear

705601929

$203.05

180a

RH Brake Pads

715900382

$110.67

180a1

Pin Kit | Packages STD & PRO

715900384

$10.98

180b

Bleeding Screw

705601017

$6.45

180d

Cap Spring Kit

715900385

$17.66

180

RH Rear Brake Caliper | Includes 180 to 180d

705601890

$210.74

180

RH Rear Brake Caliper | Includes 180 to 180d

705601890

$210.74

180a

RH Brake Pads

715900387

$110.67

180a1

Pin Kit | Packages STD & PRO

715900384

$10.98

180b

Bleeding Screw

705601017

$6.45

180c

Pin Kit | Packages STD & PRO

715900384

$10.98

180d

Cap Spring Kit

715900385

$17.66

200

Torx Screw K50 X 16

250000720

$1.39

210

Open Clamp

515175507

$1.47

220

Flat Washer 6 mm

234062410

$0.64

230

Grommet

414036300

$2.22

250

Brake Pedal | Includes 250 to 250a

705601777

$55.35

260

Brake Pedal Spring

705600792

$9.22

300

O-Ring

293300144

$3.98

350

Inside Sleeve

705601373

$10.98

360

Hex. Flange Screw, M10 X 130

230603046

$6.08

370

Hex. Flange Elastic Nut M10

233201436

$1.74

385

Brake Disc

705601511

$106.12

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

445

Hex. Flange Screw M10 X 25

207502546

$1.74
