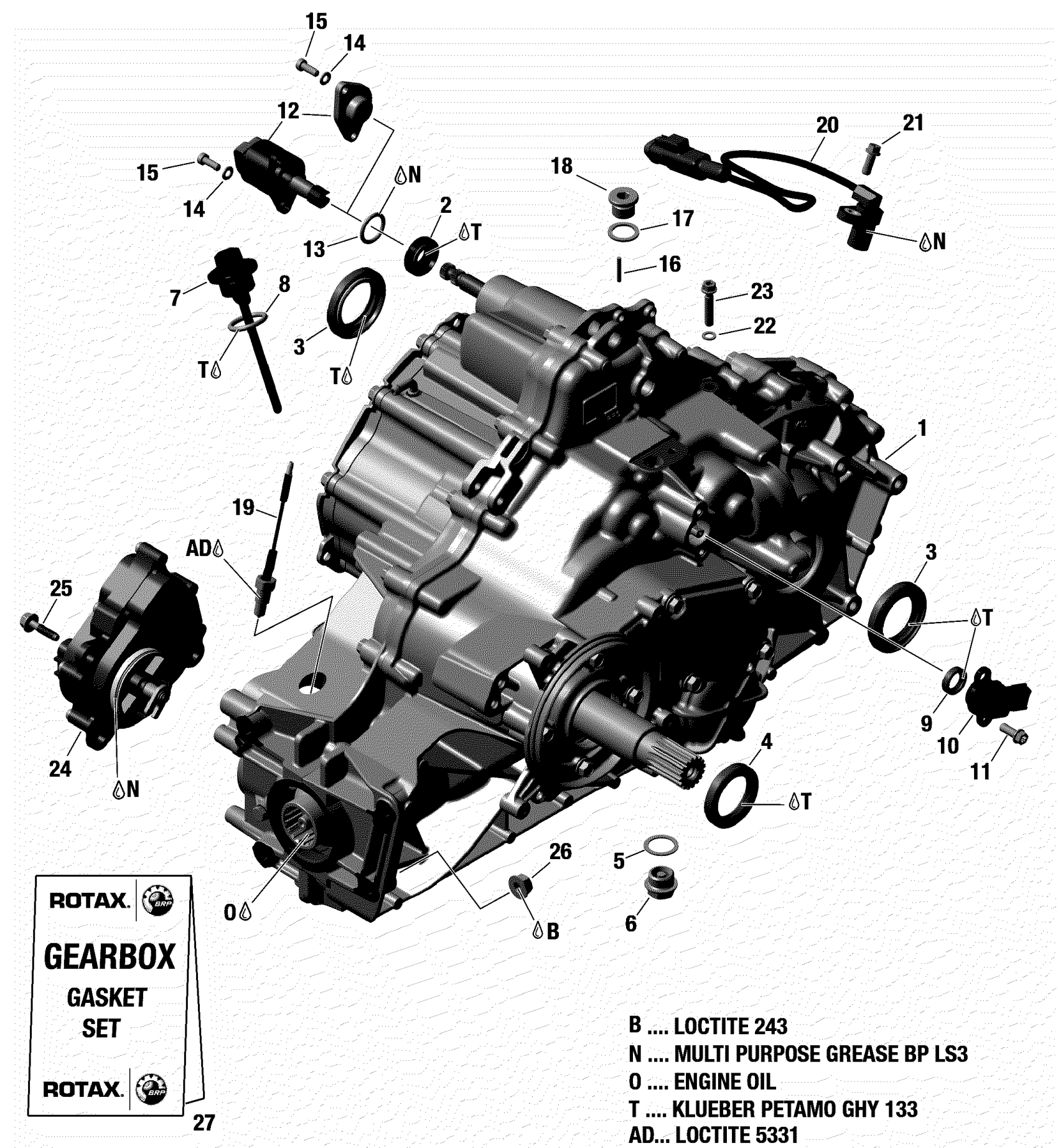

Can-Am Traxter T HD10, 2018 Gear Box Assembly Diagram

#

Description
Price

1>23

Kit Gear Box | With Lockable Rear Differential

703501186

$3,374.99

1>23

Kit Gear Box | With Lockable Rear Differential

703501140

$3,374.99

1>23

Gear Box Ass'y | Without Lockable Rear Differential

420686756

$3,374.99

1>23

Kit Gear Box | Without Lockable Rear Differential

703501141

$3,374.99

2

Oil Seal

420250452

$17.66

3

Oil Seal

420831185

$17.66

4

Oil Seal

420950089

$18.43

5

Crush Washer

420552280

$2.99

6

Drain Plug M18 X 1.5

420840278

$23.05

7

Oil Dipstick

420256806

$16.89

8

O-Ring

420631640

$2.06

9

Oil Seal

420931802

$5.29

10

Angle Rotation Sensor

420666850

$193.82

11

Torx Flange Screw M6 X 16

420440162

$3.11

12

Servomotor | With Lockable Rear Differential

420265842

$216.89

12

Cover | Without Lockable Rear Differential

420427560

$50.74

13

O-Ring | Included in gasket set gearbox

420450450

$1.46

14

Washer 5.3

420927574

$1.85

15

Allen Screw M5 X 14

420240150

$2.31

16

Needle Pin

420932840

$3.09

17

O-Ring

420430622

$3.61

18

Plug Screw M16 X 1.5

420240234

$13.58

19

3 Position Switch

420640192

$41.51

20

Camshft Position Sensor Ass'y

420265727

$104.49

21

Torx Flange Screw M6 X 16

420440162

$3.11

22

Seal Washer

420230415

$1.77

23

Torx Flange Screw M6 X 30

420440647

$1.97

24>24c

Actuator Ass'y 3 pins | Includes 4 to 7

715900614

$263.05

24a

Shifting Fork

415129175

$14.37

24b

Circlip | 4X4

293370042

$3.11

24c

O-Ring

293300117

$4.28

25

Collar Screw M6 x 25

420441951

$1.83

26

Hex. Nut M8

420842619

$2.75

27

To be determined

TBD

Unavailable
