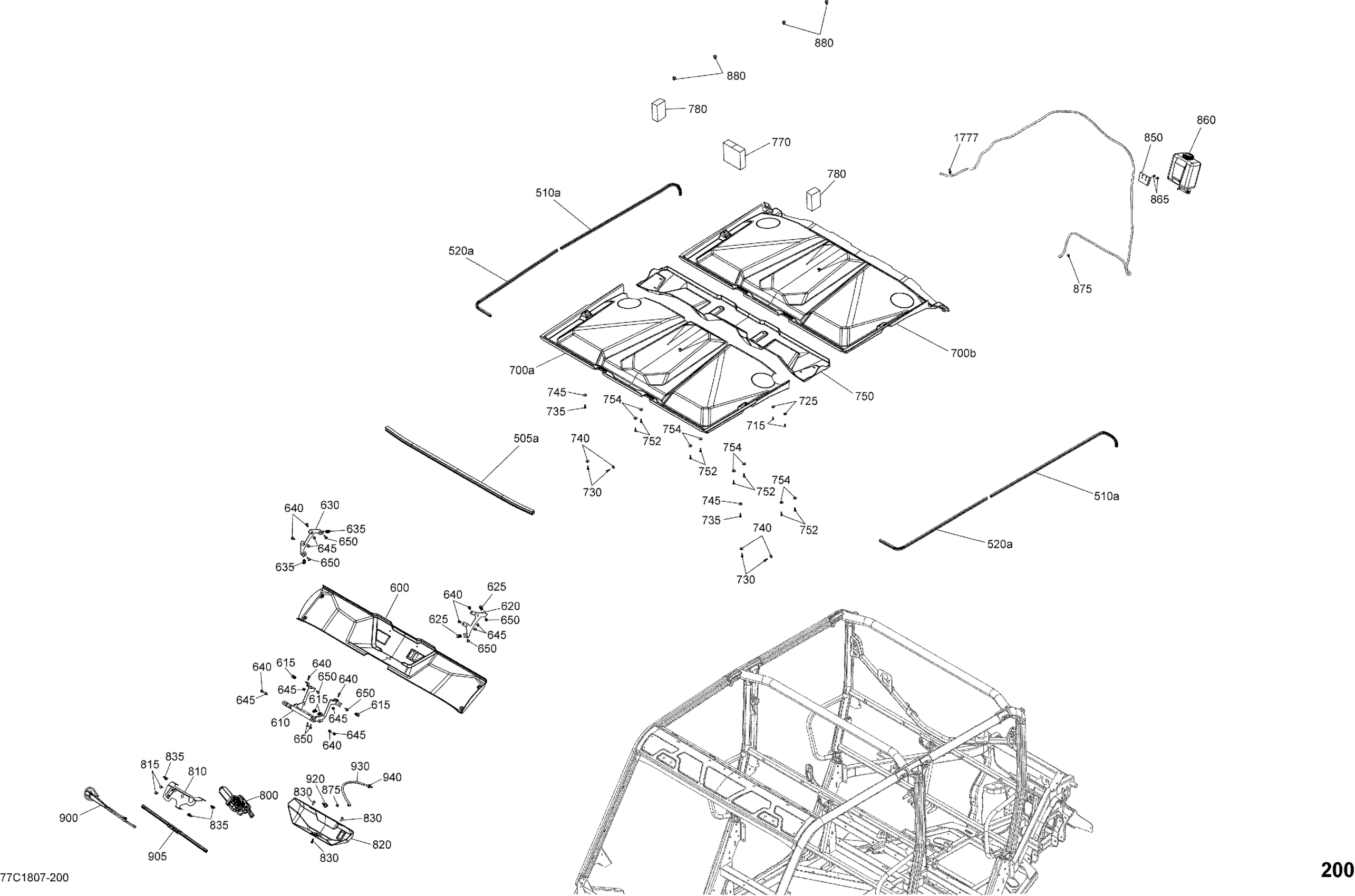

Can-Am Defender MAX HD10, 2018 Cab Interior - Roof Diagram

#

Description
Price

505a

Was 293250361 Gasket

219704379

$70.87

510a

Outer Seal

705800054

$32.06

520a

Outer Seal

705800054

$32.06

600

Radio Support Kit

715006524

$192.51

610

Support

705800060

$54.45

615

Panel Nut M6 X 1.0

250100198

$1.99

620

LH Support

705800108

$23.85

625

Panel Nut M6 X 1.0

250100198

$1.99

630

RH Support

705800109

$23.10

635

Panel Nut M6 X 1.0

250100198

$1.99

640

Torx Screw M6 X 20

250000722

$1.54

645

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

650

Hex. Flange Screw M6 X 20

207662044

$1.91

700a

Roof Liner Kit

715006391

$590.27

700b

Roof Liner Kit

715006391

$590.27

715

Torx-Truss Pt K40 X 16

250000759

$2.00

725

Washer M5

250200025

$0.70

730

Torx Screw Truss Head K50X20 T20

250000760

$2.00

735

Torx Screw Truss Head K50X20 T20

250000760

$2.00

740

Stainless Steel Flat Washer

234062670

$2.00

745

Stainless Steel Flat Washer

234062670

$2.00

750

Roof Liner Support

705800132

$142.51

752

Torx Screw Truss Head K50X20 T20

250000760

$2.00

754

Stainless Steel Flat Washer

234062670

$2.00

770

Roof Liner Spacer

705800221

$15.64

780

Roof Liner Spacer

705800255

$15.64

800

Wiper Motor

705010657

$241.76

810

Cover Support Ass'y

705800073

$76.84

815

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

820

Wiper Motor Trim

705800805

$26.84

830

Torx Screw M6 X 20

250000722

$1.54

835

Panel Nut M6 X 1.0

250100198

$1.99

850

Windshield Washer Tank Support

705800086

$16.39

860

Windshield Washer Tank

705800039

$71.61

865

Torx Screw K50 X 16

250000720

$1.60

875

Spring Clamp

414554800

$0.81

880

Clip

414227300

$1.40

900

Wiper Arm

705010656

$72.36

905

Winshield Wiper

705011443

$17.88

920

90° Elbow Connector

705800103

$12.64

930

Polyurethane Hose 10000Mm Long

219704410

$52.96

940

Check Valve

275500398

$9.84

1777

Tie Wrap 368 mm

293750008

$0.97
