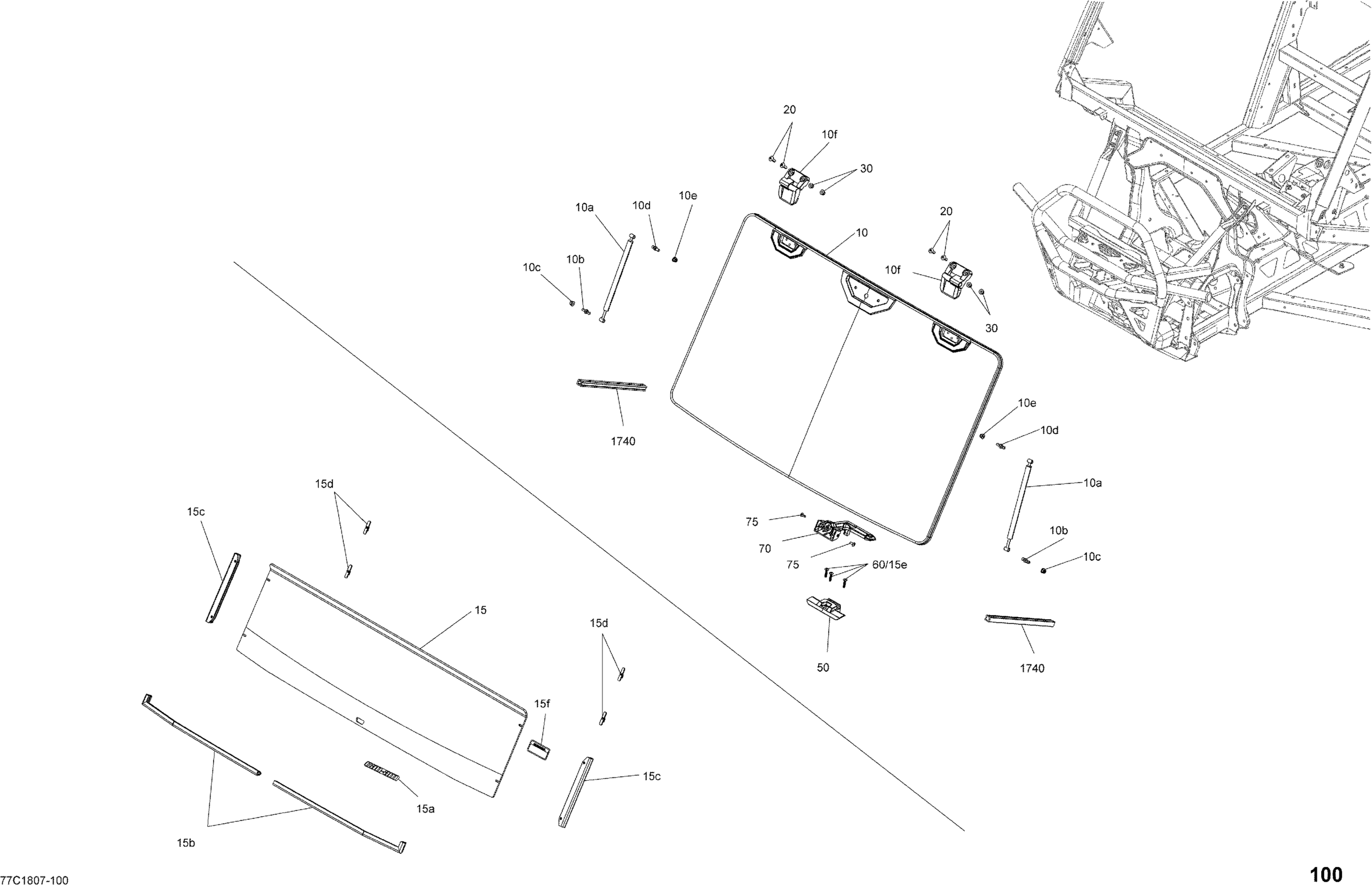

Can-Am Defender MAX HD10, 2018 Cab Interior - Front Part Diagram

Description

Price

10>10f

Windshield Ass'y | Includes 10 to 10f

715002942

$1,299.99

10a

Shock

705800030

$94.00

10b

Ball Head Stud

250300039

$7.06

10c

Hex. Flange Elastic Nut M8

233281414

$1.31

10d

Ball Head Stud

250300039

$7.06

10e

Hex. Flange Elastic Nut M8

233281414

$1.31

10f

Windshield Hinges

705800082

$111.91

10g

Neoprene Seal

705800006

$173.85

10>10f

Half Windshield Kit | Includes 10 to 10f

715002433

$399.99

10a

Decal "Can-Am" | Not Shown

704904566

$8.97

10b

Seal kit

715003502

$58.93

10c

Side Guide

708200513

$59.67

10d

Hook

708200510

$10.51

10e

Screw Torx M6.81 X 30

250001007

$1.85

10f

Warning Label Vehicule Transport | Package Cab

704905936

Unavailable

Torx Truss M8 X 25

250000874

$2.00

Hex. Flange Elastic Nut M8

233281414

$1.31

Handle Anchor

705800008

$17.13

Screw Torx M6.81 X 30

250001007

$1.85

Mobile Handle Ass'y

705800085

Unavailable

Torx Truss M8 X 16

250000881

$2.00

1740

Was 293250361 Gasket

219704379

$70.87
