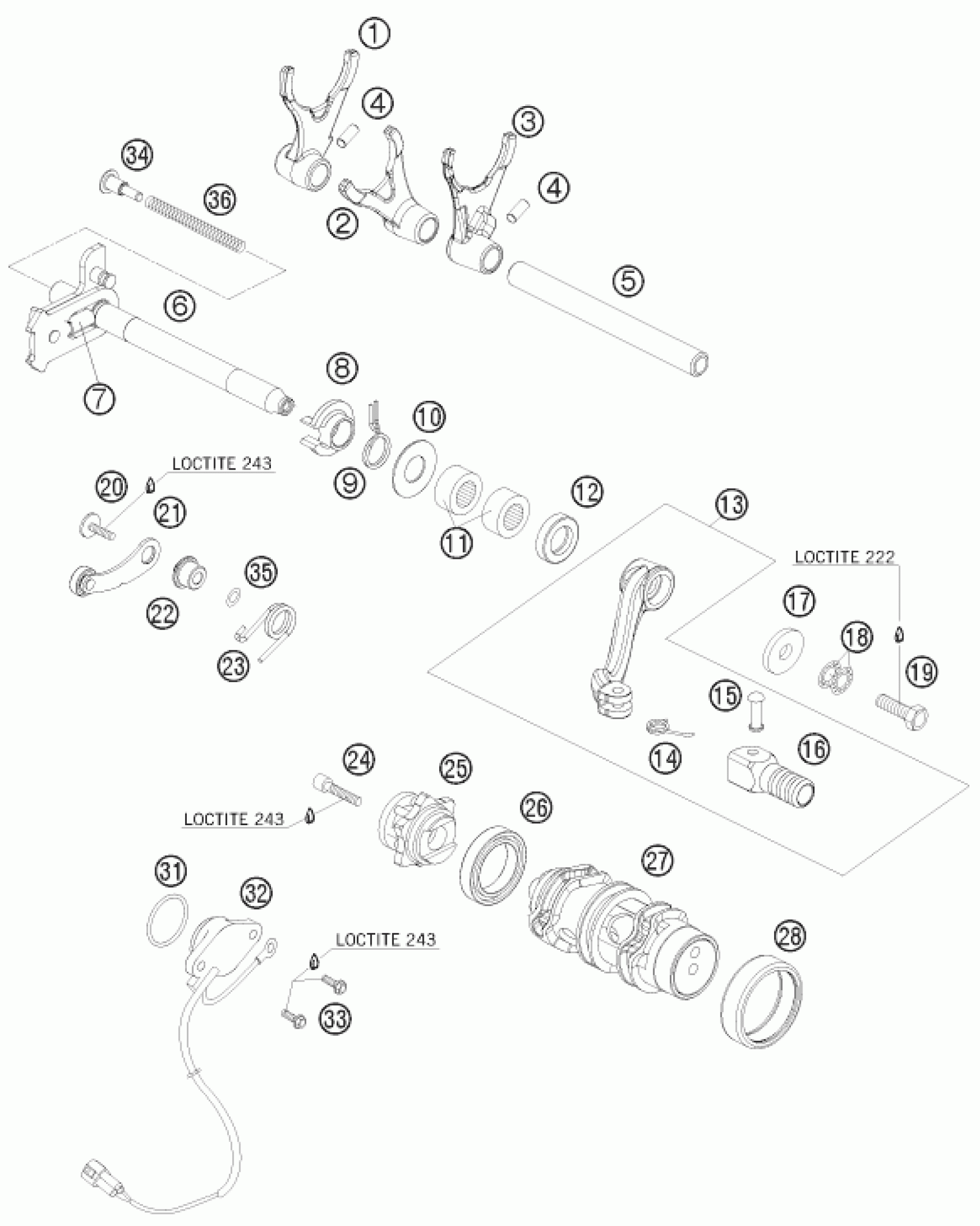

KTM 690 RALLY FACTORY REPLICA <2010> SHIFTING MECHANISM Diagram

#

Description
Price

9

RETURN SPRING 2,2MM '95

54634014100

Unavailable

1

SHIFT FORK F SLIDINGGEAR 5 07

75034002000

Unavailable

2

SHIFT FORK F. SLIDINGG. 3/4 07

75034001000

Unavailable

3

SHIFT FORK F. SLIDINGGEAR 07

75034003000

Unavailable

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

5

SHIFTRAIL 07

75034019000

Unavailable

6

SHIFT SHAFT CPL. 07

75034005044

Unavailable

7

TENSIONING SPRING 0,8MM

56534013100

Unavailable

8

SPRING GUIDE

54634020000

Unavailable

10

STOP DISK 14X30X1

54634050000

Unavailable

11

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

12

SHAFT SEAL RING 14X24X6B VITON

0760142461

Unavailable

13

SHIFT LEVER CPL. 08

76234031000

Unavailable

14

SHIFTING LEVER SPRING

75034032000

Unavailable

15

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

16

STEP PLATE FOR SHIFT LEVER 250

54634131000

Unavailable

17

STEEL WASHER 6,4X17X3

50232050001

Unavailable

18

Pair of washers M6 NORDLOCK

50233041000

Unavailable

19

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

20

HH collar screw M6x20 TX30

0024060206

Unavailable

21

LOCKING LEVER CPL. 07

75034024044

Unavailable

22

SLEEVE FOR LOCKING LEVER 07

75034052000

Unavailable

23

ARRESTING LEVER SPRING 07

60034023100

Unavailable

24

AH SCREW DIN6912 M 6X30

0984060302

Unavailable

25

SHIFT DRUM LOCATING CPL. 07

75034015000

Unavailable

26

BALL BRG 6805 C4 NTN JAPAN

0625068050

Unavailable

27

SHIFT ROLLER CPL.

76234012044

Unavailable

28

NEEDLE BEAR HK3512 35X42X12

0618354212

Unavailable

31

O-RING 27,5X2,5 NBR

0770275025

Unavailable

32

GEAR-POSITION SENSOR 06

60011023100

Unavailable

33

HH collar screw M5x16 TX30

0025050166

Unavailable

34

SPACER

75034006000

Unavailable

35

spring washer DIN 137 B - 6

0137060003

Unavailable

36

SPRING FOR OPERATING SHAFT

75034007000

Unavailable
