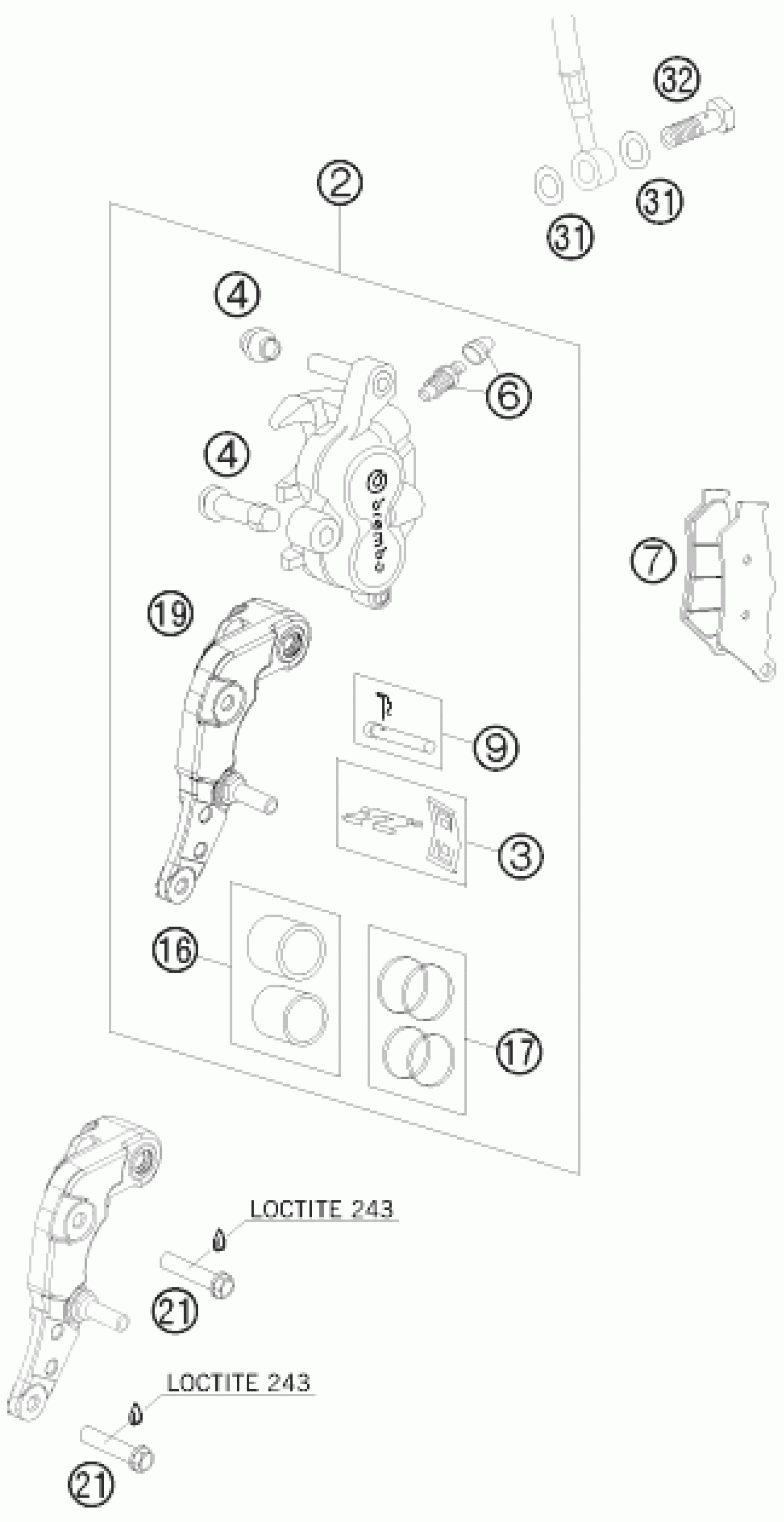

KTM 690 RALLY FACTORY REPLICA <2010> FRONT BRAKE CALIPER Diagram

#

Description

Price

2

BRAKE CAL. FR. - WITHOUT PADS

7621301500101

Unavailable

3

RETAINING PLATE SET FRONT 03

60013018000

Unavailable

4

CUP SET SHORT

54613218000

Unavailable

6

BLEEDER SCREW WITH CAP

60013020000

Unavailable

7

BRAKE PADS TOSHIBA TT 2172 HHA

60013030000

Unavailable

9

BOLT SET L/S

60013017000

Unavailable

16

BRAKE PISTONS 30/32MM

60013083000

Unavailable

17

REP.KIT SEALING RINGS 30/32MM

60013019000

Unavailable

19

BRAKE CALIPER SUPPORT FR. L/S

76213049000

Unavailable

21

HH collar screw M8x35 TX40

0025080356

Unavailable

31

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

32

banjo bolt M10x1x19 black

54813020100

Unavailable
