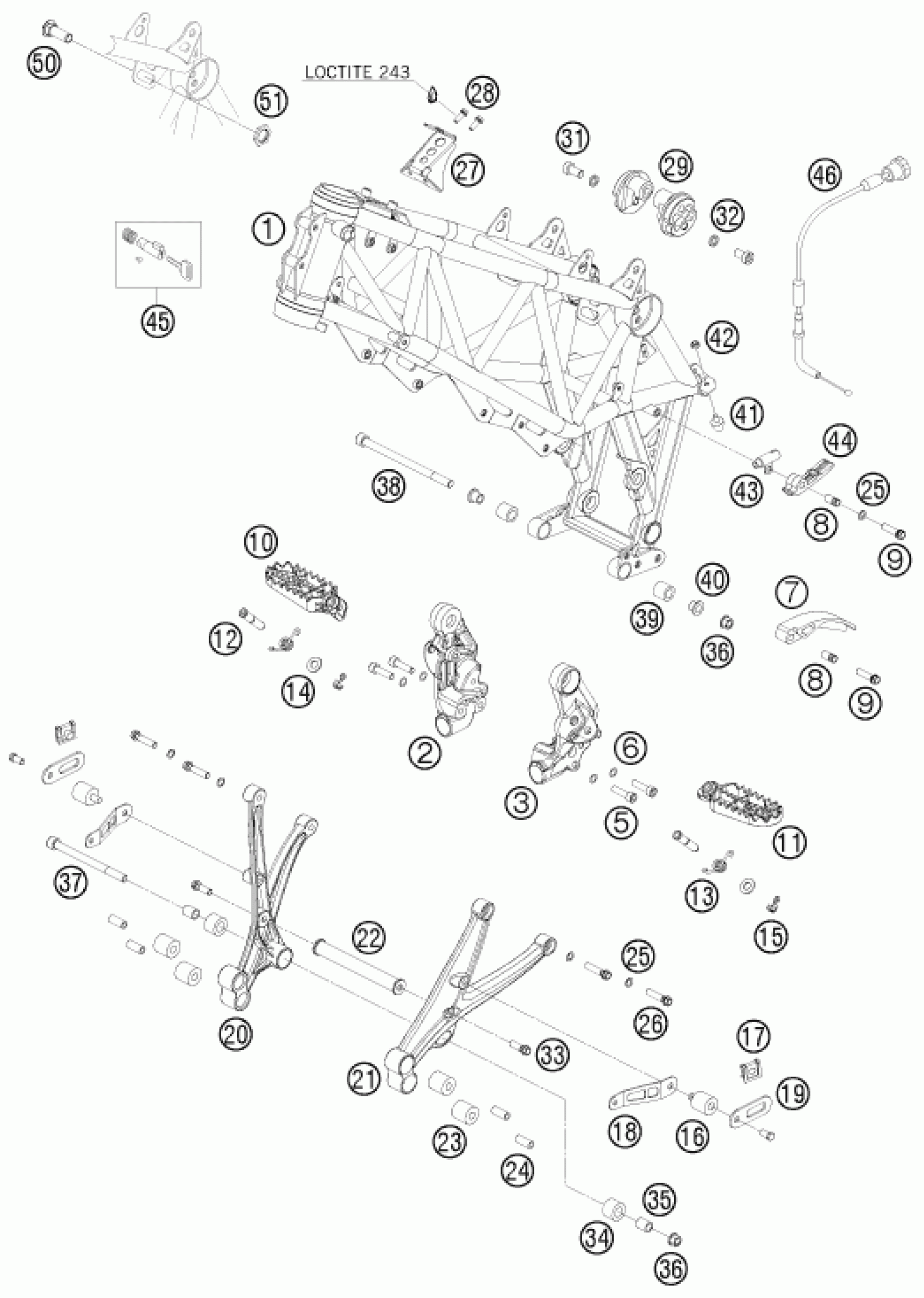

KTM 690 RALLY FACTORY REPLICA <2010> FRAME Diagram

#

Description
Price

1

FRAME RALLYE 07

7620300100090

Unavailable

2

FOOTREST BRACKET RIGHT 07

76203039000

Unavailable

3

FOOTREST BRACKET LEFT 07

76203038000

Unavailable

5

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

6

LOCK WASHER 8MM

36003014000

Unavailable

7

CHAIN SLIDING PART 08

76204066000

Unavailable

8

BUSHING 8,2X10X20

51103053051

Unavailable

9

HH COLLAR SCREW M8X35 TX40

0025080356S

Unavailable

10

FOOTREST RIGHT RALLY 07

76203041250

Unavailable

11

FOOTREST LEFT RALLY 07

76203040250

Unavailable

12

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

13

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

14

washer DIN 125 A 10.5

0125100003

Unavailable

15

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

16

RUBBER GROMMET 30X20-M8X12

51005062100

Unavailable

17

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

18

RADIATOR STRUT

76203005030

Unavailable

19

FUEL TANK SUPPORT PLATE

76203002420

Unavailable

20

ENGINE SUPPORT RIGHT 07

76203006000

Unavailable

21

ENGINE SUPPORT LEFT 07

76203005000

Unavailable

22

CROSS MEMBER CPL. 08

76203005040

Unavailable

23

RUBBER INSERT

76203005031

Unavailable

24

BUSH ENGINE SUPPORT

76203005050

Unavailable

25

LOCK WASHER 8MM

36003014000

Unavailable

26

HH collar screw M8x35 TX40

0025080356

Unavailable

27

JOINT PLATE SEAT 07

76203001066

Unavailable

28

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

29

ADAPTER MONOSHOCK ANCHOR BOLT

76203001072

Unavailable

31

AH SCREW DIN0912-M10X16

0912100163

Unavailable

32

PAIR OF WASHERS M10 NORDLOCK

50233041100

Unavailable

33

HH collar screw M8x20

0025080206

Unavailable

34

ELASTOMER BEARING

76203018000

Unavailable

35

COLLAR BUSH FOR ELAST.BEARING

76203019000

Unavailable

36

COLLAR NUT M10 WS=13

54630044000

Unavailable

37

AH SCREW DIN912 M10X140 10.9

0912101406

Unavailable

38

AH SCREW DIN 912 M10X190 10.9

0912101906

Unavailable

39

ELASTOMER BEARING

76203016000

Unavailable

40

COL. BUSH. F. EL. MOT. BEARING

76203017000

Unavailable

41

PUMP RUBBER KP PARABOLIC

76203001091

Unavailable

42

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

43

SLEEVE FOR CHOKE CABLE

76202095051

Unavailable

44

CHAIN SLIDING PIECE 03

54804067000

Unavailable

45

STEERING HEAD LOCK CPL. ZADI

71003007000

Unavailable

46

CHOKE-CABLE l = 235 07

76202095000

Unavailable

50

FIXING SCREW TANK REAR

58512068100

Unavailable

51

NUT F.TANK BRAKET REAR

60512063050

Unavailable
