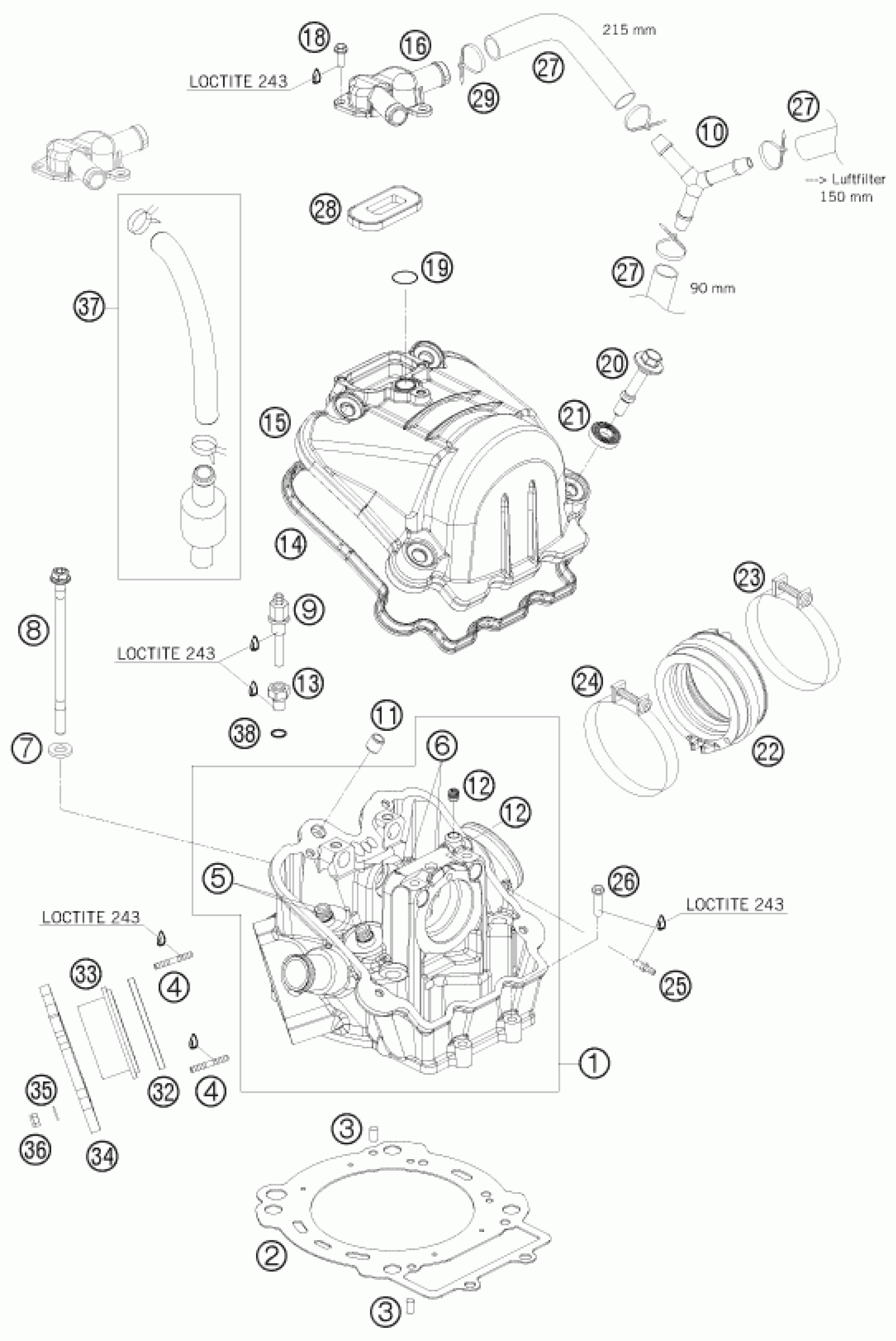

KTM 690 RALLY FACTORY REPLICA <2010> CYLINDER HEAD Diagram

#

Description
Price

2

CYLINDER HEAD GASKET 07

75030036000

Unavailable

1

CYLINDER HEAD CPL.

7503602014452

Unavailable

5

VALVE GIUDE EXHAUST

60036026101

Unavailable

7

SHIM 10,2X19X1,5MM 05

60036078050

Unavailable

8

CYLINDERHEAD SCREW M10X168WS14

75036079000

Unavailable

9

TEMPERATURE SWITCH VDO

42011252000

Unavailable

10

Y-CONNECTOR 12/12/12

76230080000

Unavailable

11

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

12

SCREW PLUG

59030296000

Unavailable

13

ADAPTER FOR TEMPERATURE SWITCH

76236037000

Unavailable

14

VALVE COVER GASKET 07

75036053000

Unavailable

15

VALVE COVER 07

75036052000

Unavailable

16

BREATHER COVER 07

75036052050

Unavailable

18

AH SCREW DIN7984 M5X10 A2

07984050100

Unavailable

19

O-RING 15,00X1,50 VITON

0770150151

Unavailable

20

valve mechanism cover screw

75036055000

Unavailable

21

decoupling element

75036052010

Unavailable

22

INTAKE BOOT 07

75036045000

Unavailable

23

HOSE CLAMP 45-65MM

78006027000

Unavailable

24

HOSE CLAMP 50-70MM

51006027000

Unavailable

25

VACUUM CONNECTION M 6X1

58336020090

Unavailable

26

HH collar screw M6x20 TX30

0025060206

Unavailable

27

RADIATOR HOSE(REENFORCED)12X

58335025001

Unavailable

28

SAS Reed Valve

60005026000

Unavailable

29

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

32

Exhaust gasket 05

61005005000

Unavailable

33

EXHAUST FLANGE

76205007051

Unavailable

34

UNION FLANGE

76205007052

Unavailable

35

washer DIN 125 A -8.4

0125080003

Unavailable

36

self-locking nut M8 Cu

51010086100

Unavailable

37

BREATHER CYLINDER HEAD

76236024000

Unavailable

38

o-ring 10.00x2.00 silicone

0770100020

Unavailable

6

VALVE GIUDE INTAKE

60036025101

Unavailable

3

GROOVED PIN DIN1474 5X10

0474050100

Unavailable

4

STUD DIN0835-M 8X25 10.9

0835080256

Unavailable
