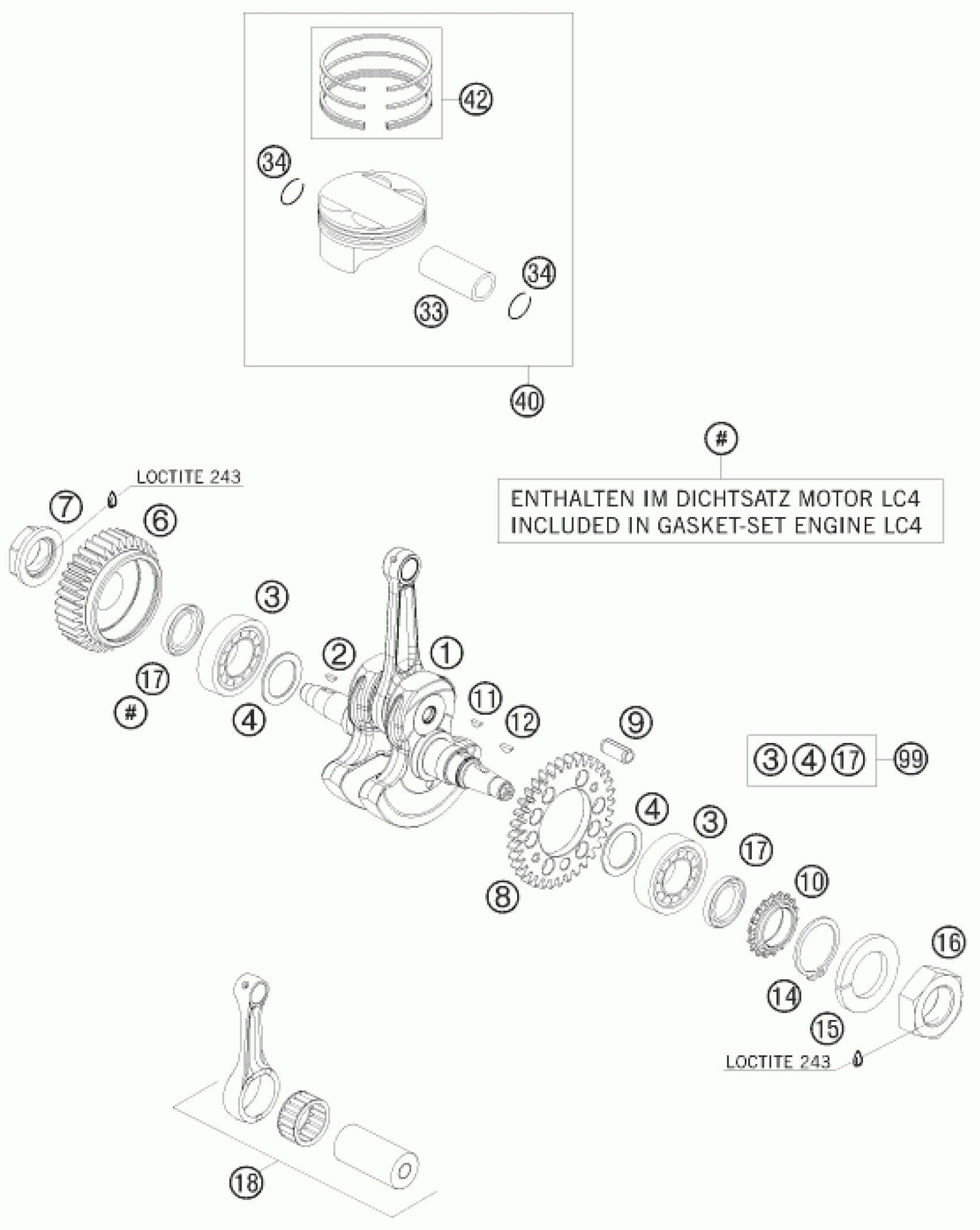

KTM 690 RALLY FACTORY REPLICA <2010> CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL

75030018100

Unavailable

2

woodruff key DIN 6888 4x5x13

0888040050

Unavailable

3

CYL.ROLLER BEARING NJ207 ECPC4

75030018150

Unavailable

4

SHIM WASHER 36X48X0,10

56530081000

Unavailable

4

SHIM WASHER 36X48X0,15

56530081100

Unavailable

4

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

4

SHIM WASHER 36X48X0,30

56530081300

Unavailable

6

PRIMARY GEAR 36 T 07

75032000002

Unavailable

7

NUT FOR PRIMARY GEAR

75030029100

Unavailable

8

DRIVE WHEEL BALANCER SHAFT 07

75030055000

Unavailable

9

TENSION PIN ISO13337 8X30

0749080300

Unavailable

10

TIMING PULLEY 07

75036014000

Unavailable

11

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

12

WOODRUFF KEY 5X6,5 HARDED

6946005

Unavailable

14

CIRCLIP DIN0471-30X1,5 NIRO

0471300151

Unavailable

15

LOCK WASHER VSK 18

58132072000

Unavailable

16

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

17

SHAFT SEAL R.35X50X7B VITON

0760355070

Unavailable

18

CONNECT. ROD REPAIR SET LC4 08

75030015144

Unavailable

33

PISTON PIN 20mm

75030833000

Unavailable

34

CIRCLIP

77630074000

Unavailable

40

PISTON I CPL.

76230007000 I

Unavailable

40

PISTON II CPL.

76230007000 II

Unavailable

42

PISTON RING SET LC4 2010

76230031044

Unavailable

99

CRANKSHAFT REP. KIT 690

00050002305

Unavailable
